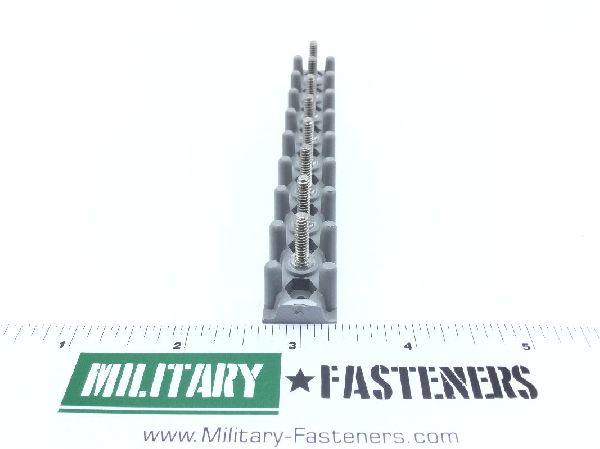

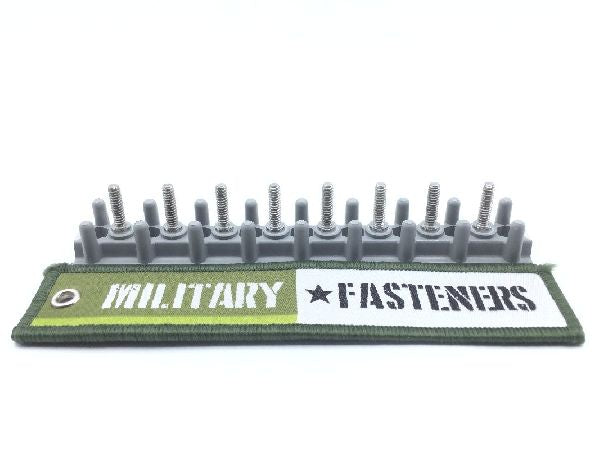

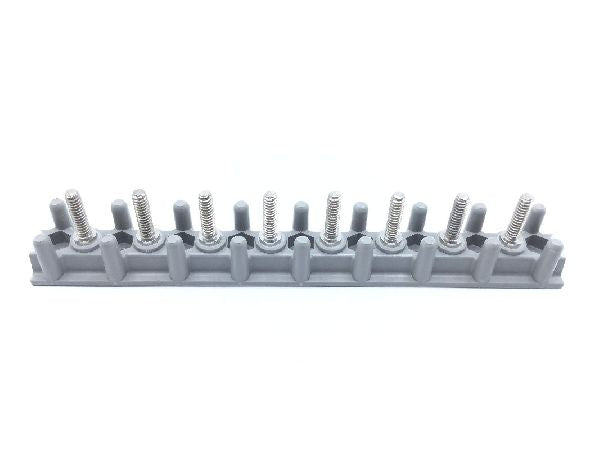

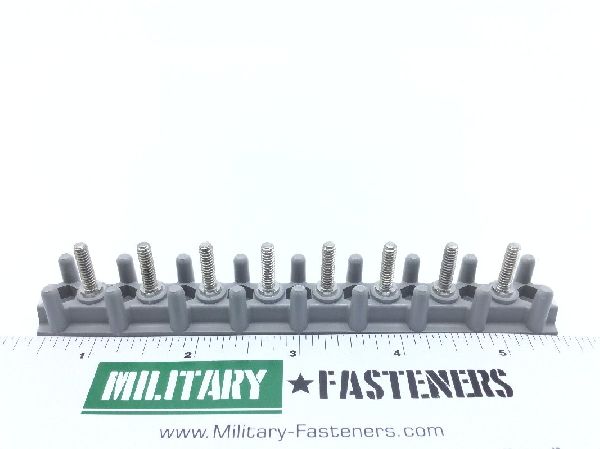

MS27212-1-8 Terminal Board

Product Series: MS
ECCN: EAR99
Schedule: 8536.90.4000

Price per Unit $38.80

Units per Pack 2

Price per Pack $77.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $77.60

Add item to quote

Material

Plastic diallyl phthalate board and glass fiber board

Base Thickness: 0.071 inches
Board Construction: Solid construction
Board Height Excluding Terminals: 0.625 inches
Boardheight: 1.005 inches
Boardlength: 12.454 inches
Boardwidth: 0.750 inches
Body Style: Barrier type
Center To Center Distance Between Terminals: 0.75 inches
Distance Between Terminal Row Centers: 0.43 inches
Material Specification: Type gdi-30f military specification single material response board mil-p-19833
Terminal Design: Nonfeedthru
Terminal Pattern Arrangement: Multi-row
Terminal Row Quantity: 2
