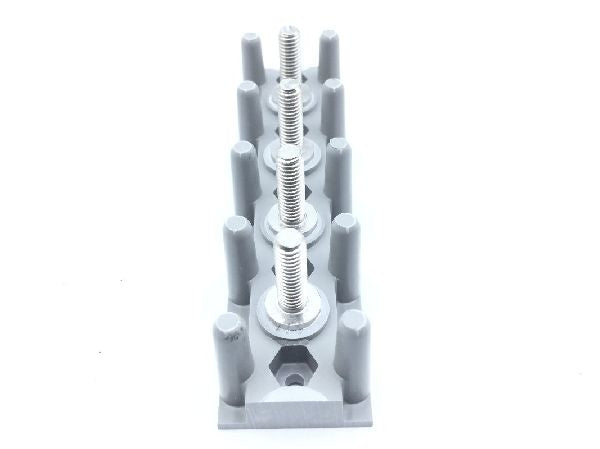

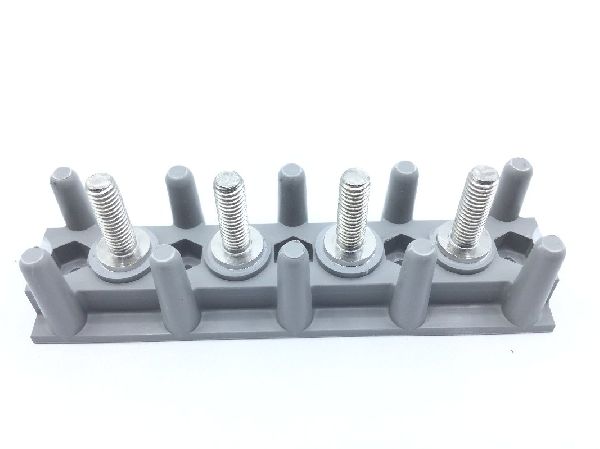

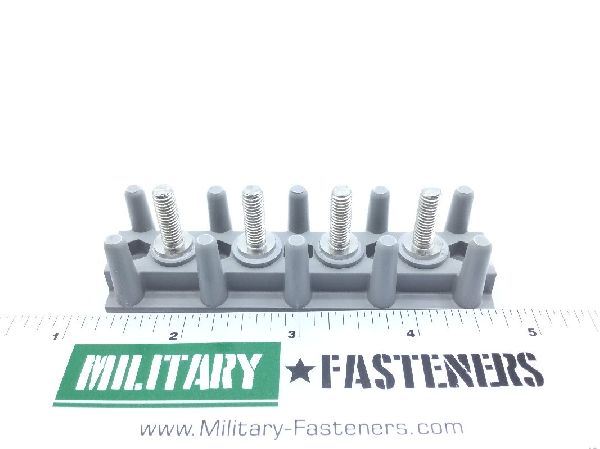

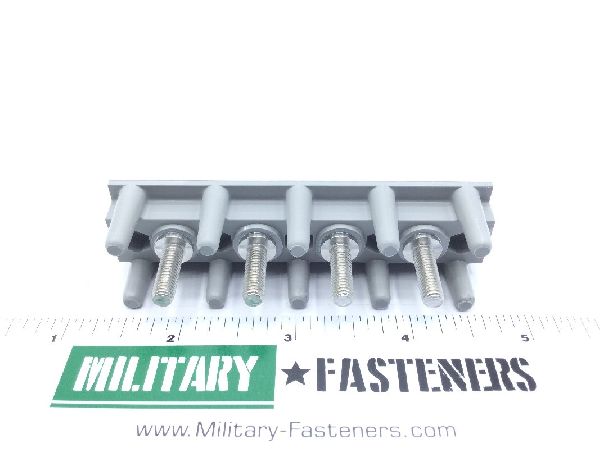

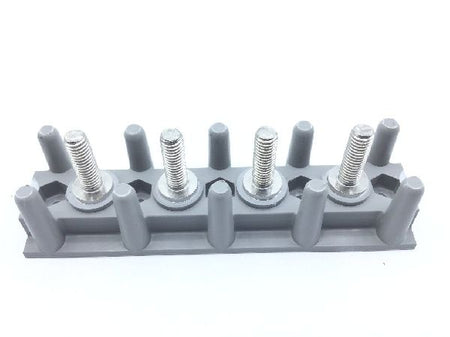

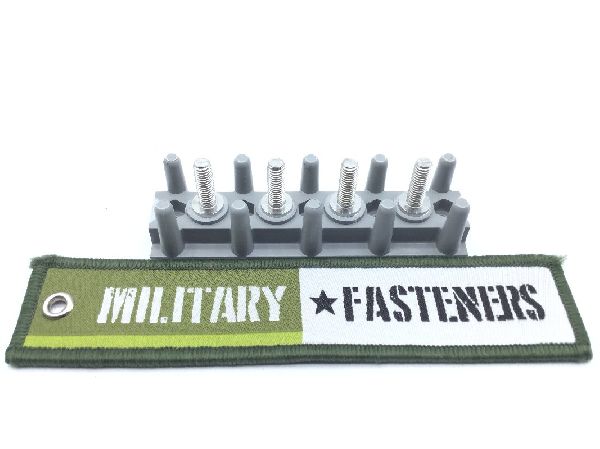

MS27212-2-4 Terminal Board

Product Series: MS
ECCN: EAR99
Schedule: 8538.90.7080

Price per Unit $29.35

Units per Pack 2

Price per Pack $58.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $58.70

Add item to quote

Base Thickness: 0.328 inches
Board Construction: Solid construction
Board Height Excluding Terminals: 0.789 inches
Boardheight: 1.079 inches
Boardlength: 3.436 inches
Boardwidth: 0.938 inches
Body Style: Barrier standoff
Center To Center Distance Between Mounting Facilities Parallel T: 0.750 inches
Center To Center Distance Between Terminals: 0.750 inches
Distance From Bottom Edge Of Terminal Board To Center Of Mountin: 0.469 inches
Distance From Left Edge Of Terminal Board To Center Of First Mou: 0.218 inches
Mounting Facility Type And Quantity: 5 unthreaded hole
Mounting Hole Diameter: 0.115 inches
Nonfeedthru Terminal Quantity: 4 single
Nonfeedthru Terminal Type: 597 single
Special Features: Comp 303 per ams 5686a or comp 305 ams 7472e fed standard 66 comp 302 fed standard 66 plastic per mil-p-19833; steel board
Terminal Design: Nonfeedthru
Terminal Pattern Arrangement: Single row
Terminal Row Quantity: 1
