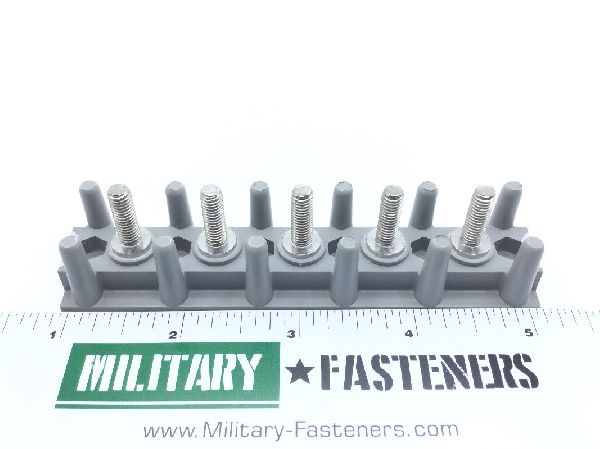

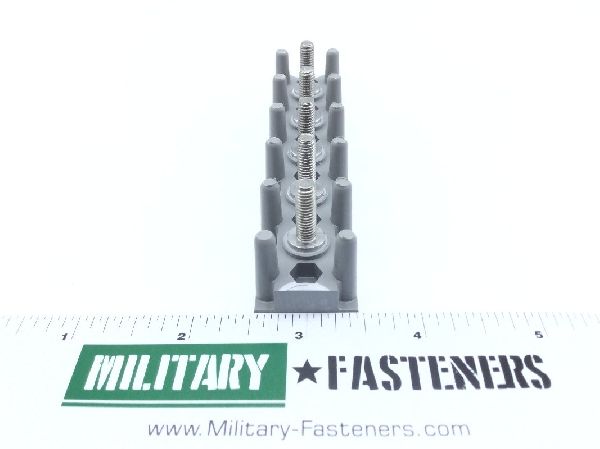

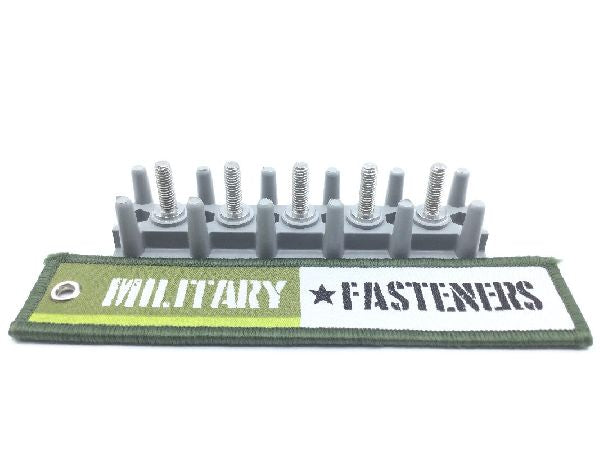

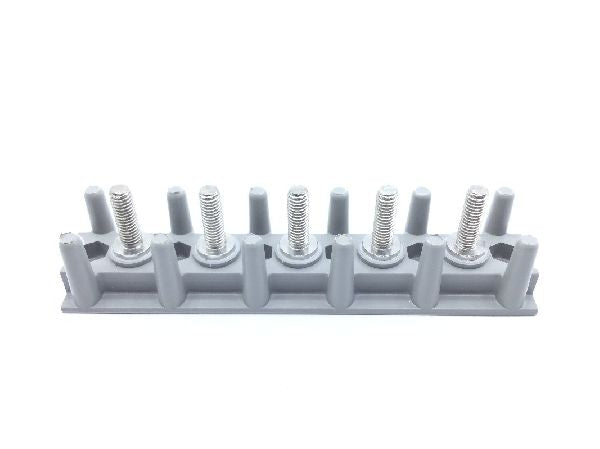

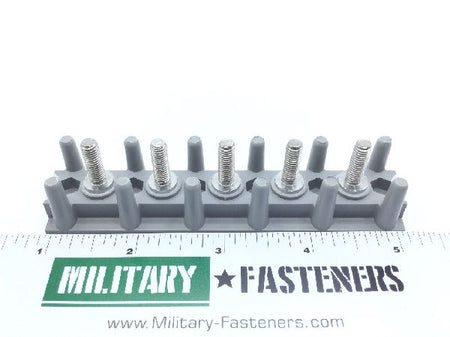

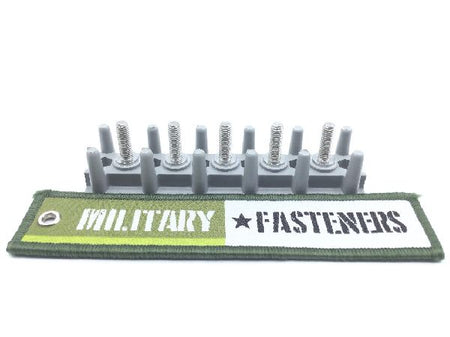

MS27212-2-5 Terminal Board

Product Series: MS
ECCN: EAR99
Schedule: 8536.90.4000

Price per Unit $42.00

Units per Pack 1

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Material

Stainless steel terminals

Base Thickness: 0.328 inches
Board Construction: Solid construction
Board Height Excluding Terminals: 0.789 inches
Boardheight: 1.079 inches
Boardlength: 4.186 inches
Boardwidth: 0.938 inches
Body Style: Barrier standoff
Center To Center Distance Between Mounting Facilities Parallel T: 0.75 inches
Center To Center Distance Between Terminals: 0.75 inches
Distance From Bottom Edge Of Terminal Board To Center Of Mountin: 0.469 inches
Distance From Left Edge Of Terminal Board To Center Of First Mou: 0.218 inches
Material Specification: Mil-p-19833 military specification all material responses board
Mounting Facility Type And Quantity: 6 unthreaded hole
Mounting Hole Diameter: 0.115 inches
Nonfeedthru Terminal Quantity: 10 single
Nonfeedthru Terminal Type: 598 single
Terminal Design: Non feed thru
Terminal Pattern Arrangement: Single row
Terminal Row Quantity: 1
