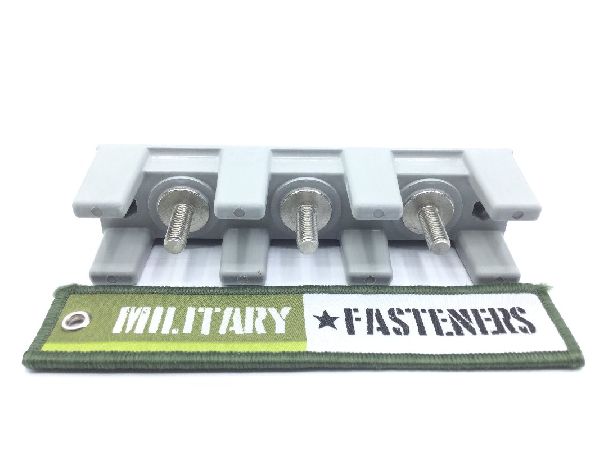

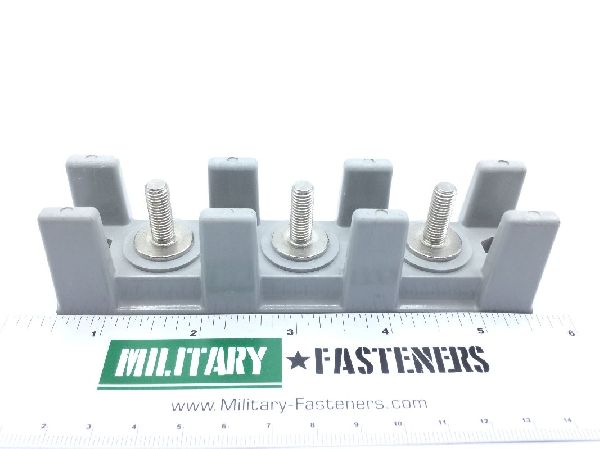

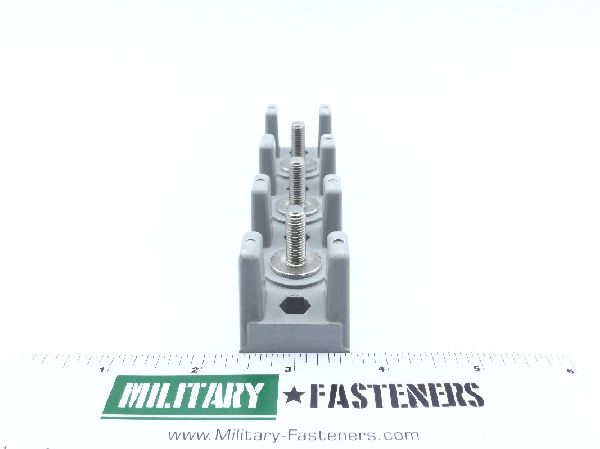

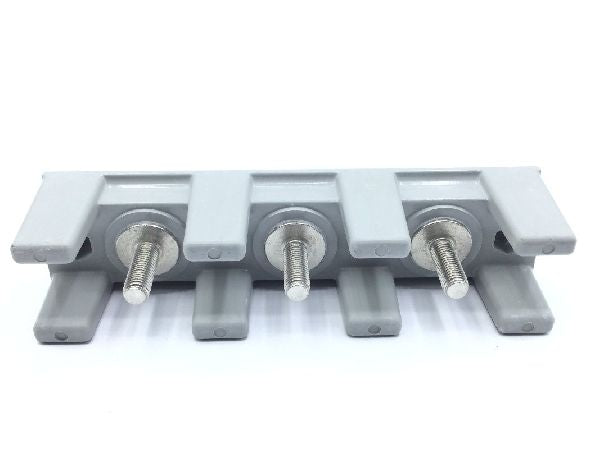

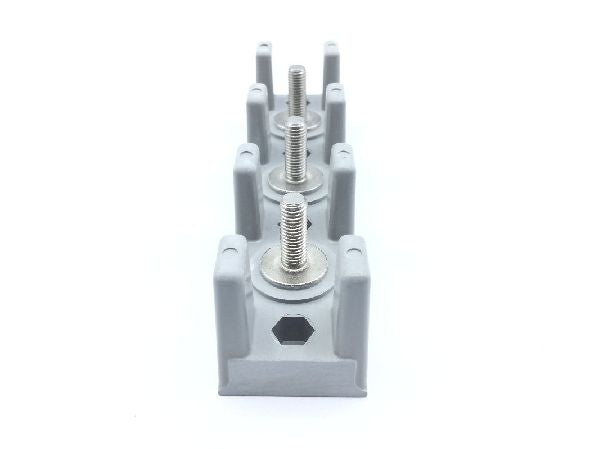

MS27212-3-3 Terminal Board

Product Series: MS
ECCN: EAR99
Schedule: 8536.90.4000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Plastic diallyl phthalate board and glass fiber board

Base Thickness: 0.455 inches
Board Construction: Solid construction
Board Height Excluding Terminals: 1.297 inches
Boardheight: 1.321 inches
Boardlength: 5.562 inches
Boardwidth: 1.25 inches
Body Style: Barrier standoff
Center To Center Distance Between Mounting Facilities Parallel T: 1.50 inches
Center To Center Distance Between Terminals: 1.50 inches
Distance From Bottom Edge Of Terminal Board To Center Of Mountin: 0.625 inches
Distance From Left Edge Of Terminal Board To Center Of First Mou: 0.312 inches
Material Specification: Type gdi-30f military specification single material response board mil-p-19833
Mounting Facility Type And Quantity: 4 unthreaded hole
Mounting Hole Diameter: 0.141 inches
Nonfeedthru Terminal Quantity: 3 single
Nonfeedthru Terminal Type: 598 single
Terminal Design: Nonfeedthru
Terminal Pattern Arrangement: Single row
Terminal Row Quantity: 1
