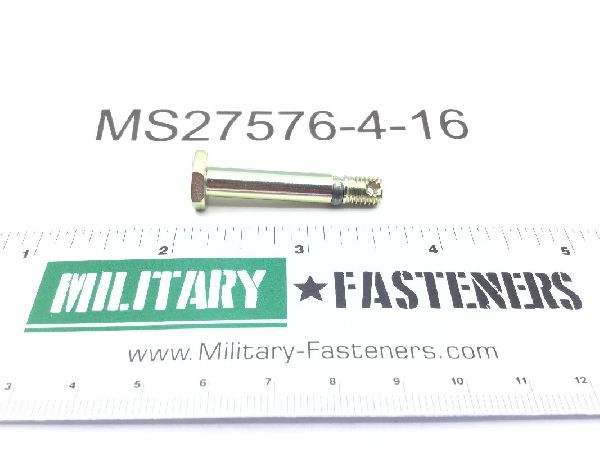

MS27576-4-16 Machine Bolt
MS27576-4-16 Machine Bolt (2)

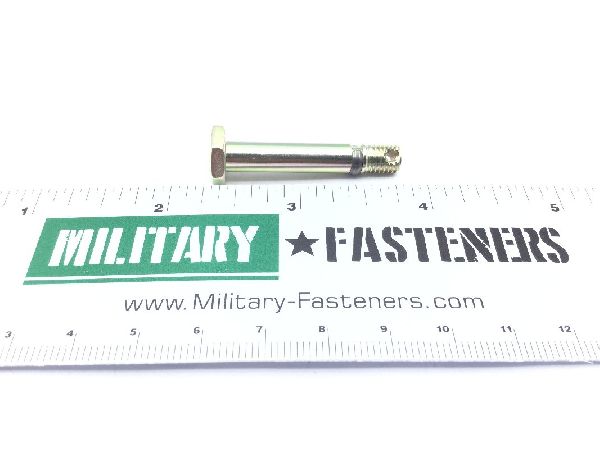

MS27576-4-16 Machine Bolt (3)

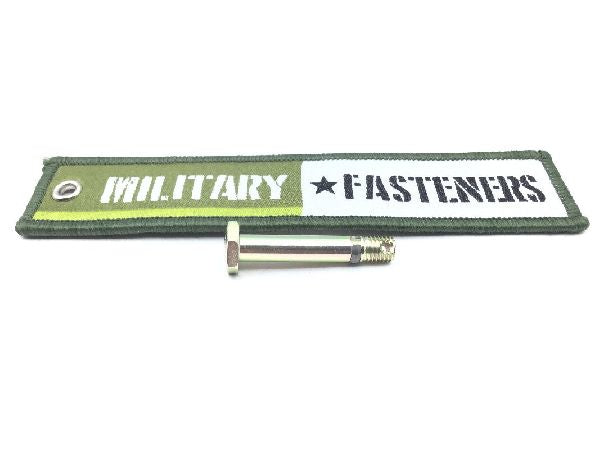

MS27576-4-16 Machine Bolt (4)
MS27576-4-16 Machine Bolt
MS27576-4-16 Machine Bolt (2)
MS27576-4-16 Machine Bolt (3)
MS27576-4-16 Machine Bolt (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS27576-4-16 Machine Bolt

Product Series
MS
ECCN
EAR99
Schedule
7318.15.8085
Price per Unit $69.23
Units per Pack 1
Price per Pack $69.23
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:
Total Packs 1
Total Price $69.23
Add item to quote
Head Style
Dished hexagon
Material
Steel
Surface Treatment
Qq-p-416 type 2 class 2 federal specification all treatment responses
Thread Class
3a
Distance From Head Largest Surface To Shank Hole Center
1.318 inches first hole and 1.348 inches first hole
Fastener Length
Between 1.418 inches and 1.438 inches
Grip Diameter
Between 0.2483 inches and 0.2492 inches
Grip Length
Between 1.00 inches and 1.016 inches
Hardness Rating
36.0 rockwell c and 41.0 rockwell c
Head Height
Between 0.126 inches and 0.141 inches
Material Specification
Mil-b-83050 military specification single material response
Shank Unthreaded Hole Diameter
0.076 inches first hole and 0.086 inches first hole
Special Features
W/retaining element on shank
Surface Finish
63.0 microinches surface of head
Thread Diameter
0.25 inches
Thread Direction
Right-hand
Thread Length
Between 0.282 inches and 0.333 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unjf (fine thread with external controlled root radius)
Width Between Flats
Between 0.430 inches and 0.439 inches
