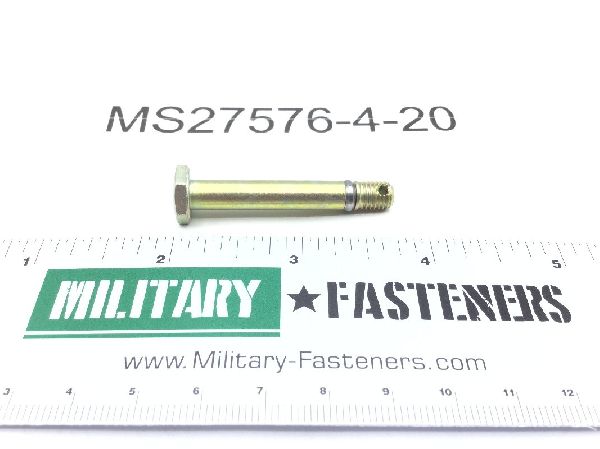

MS27576-4-20 Machine Bolt

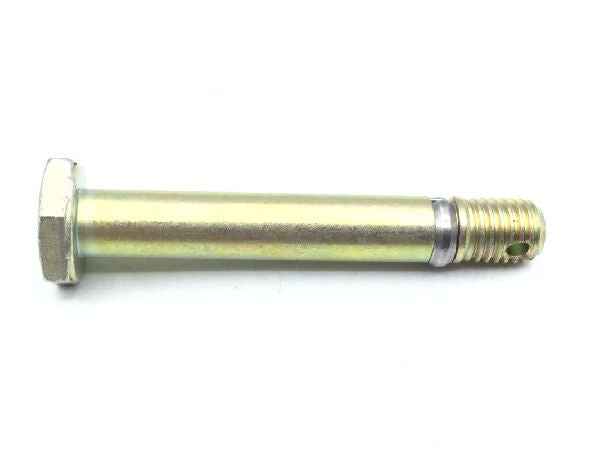

MS27576-4-20 Machine Bolt (2)

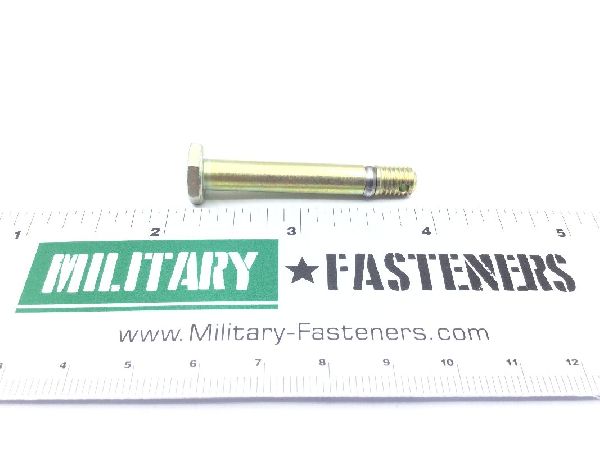

MS27576-4-20 Machine Bolt (3)

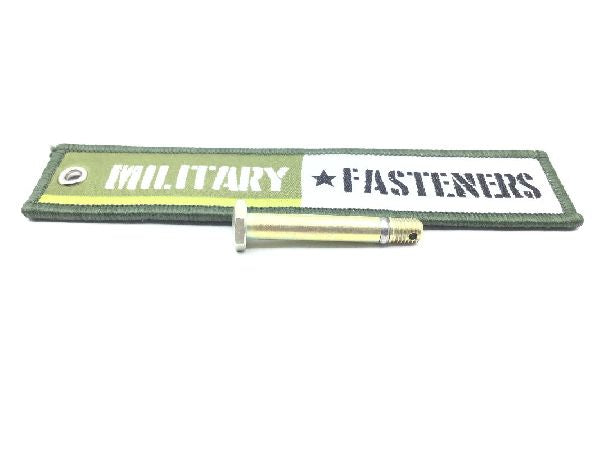

MS27576-4-20 Machine Bolt (4)
MS27576-4-20 Machine Bolt
MS27576-4-20 Machine Bolt (2)
MS27576-4-20 Machine Bolt (3)
MS27576-4-20 Machine Bolt (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS27576-4-20 Machine Bolt

Product Series
MS
ECCN
EAR99
Schedule
7318.15.8085
Price per Unit $83.09
Units per Pack 1
Price per Pack $83.09
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:
Total Packs 1
Total Price $83.09
Add item to quote
Head Style
Dished hexagon
Material
Steel
Surface Treatment
Qq-p-416 type 2 federal specification single treatment response
Thread Class
3a
Distance From Head Largest Bearing Surface To Shank Hole Center
1.568 inches first hole and 1.598 inches first hole
Fastener Length
Between 1.668 inches and 1.688 inches
Grip Diameter
Between 0.2483 inches and 0.2492 inches
Grip Length
Between 1.250 inches and 1.266 inches
Hardness Rating
36.0 rockwell c and 41.0 rockwell c
Head Height
Between 0.126 inches and 0.141 inches
Material Specification
Mil-b-83050 military specification single material response
Shank Unthreaded Hole Diameter
0.076 inches first hole and 0.086 inches first hole
Special Features
W/retaining element on shank
Surface Finish
63.0 microinches bearing surface of head
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
Between 0.282 inches and 0.333 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unjf (fine thread with external controlled root radius)
Width Between Flats
Between 0.430 inches and 0.439 inches
