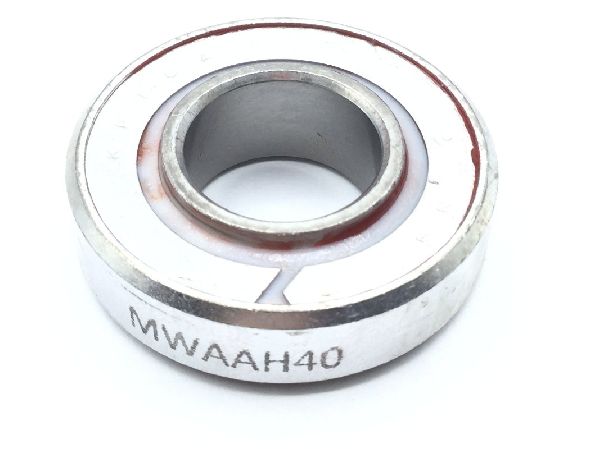

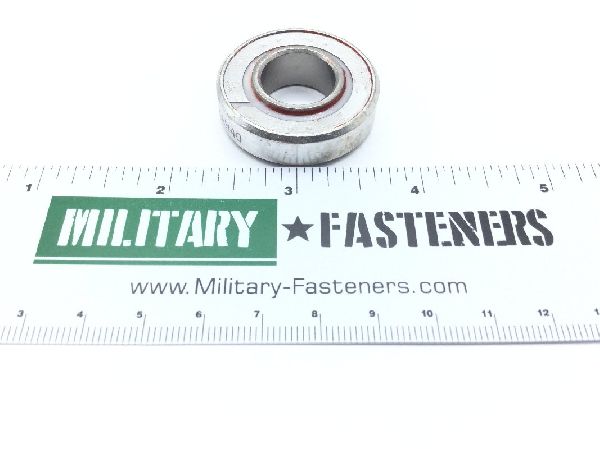

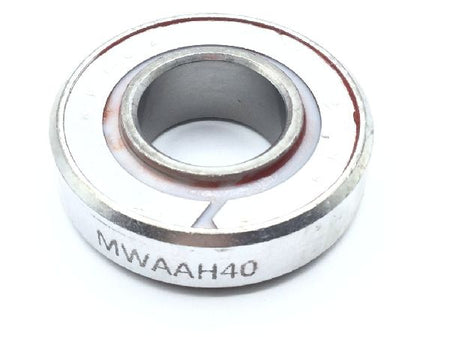

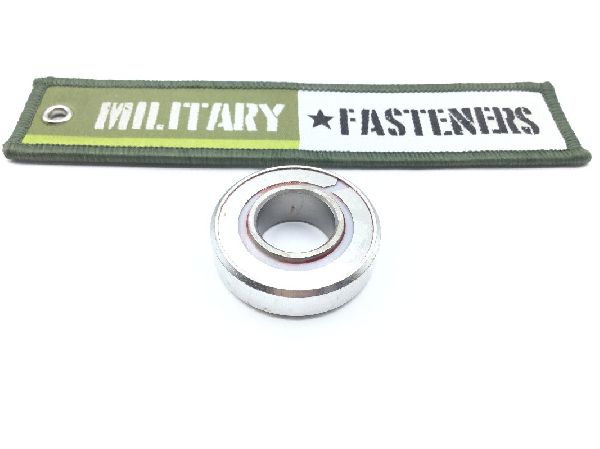

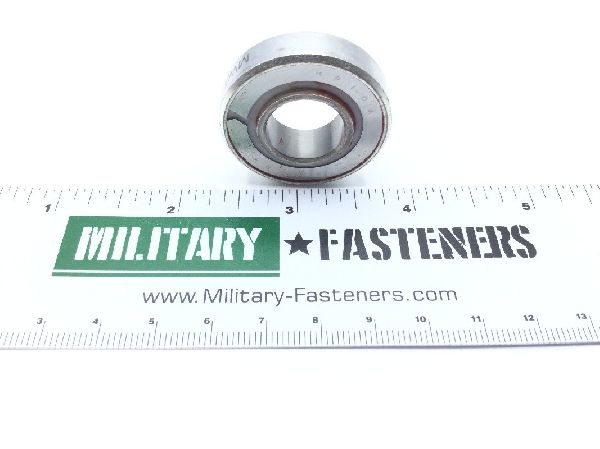

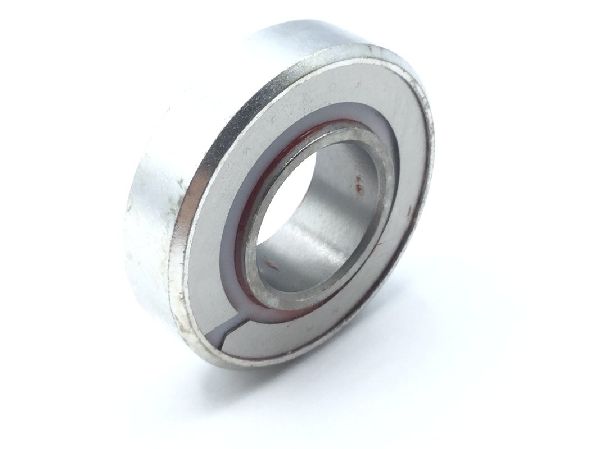

MS27641-10 Airframe Ball Bearing

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.5030

Price per Unit $55.12

Units per Pack 1

Price per Pack $55.12

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $55.12

Add item to quote

Material

Steel comp e52100 ball or steel comp e51100 ball

Surface Treatment

Cl 2 federal standard single treatment response outer ring type 1 qq-p-416

Bearing Seal Type: Contact
Bore Diameter: 0.625 inches
Inner Ring Width: 0.406 inches
Load Direction: Radial
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: 66 federal standard all material responses ball
Outer Ring Width: 0.344 inches
Overall Outside Diameter: 1.375 inches
Seal Quantity: 2
Special Features: Radial and lateral eccentrictiy inner ring 0.001 in. outer ring 0.0016 in. heat treat rings and balls to rockwell c 60 to 66 and stabilized for operation at 250 deg. f 0.0010 in. max internal radial clearance 0.0004 in. min 80 pct. full of mil-g-8132
Standard Tolerance Designation: Afbma standard tolerance for airframe ball bearings
Style Designator: Single row inner ring extended both sides
