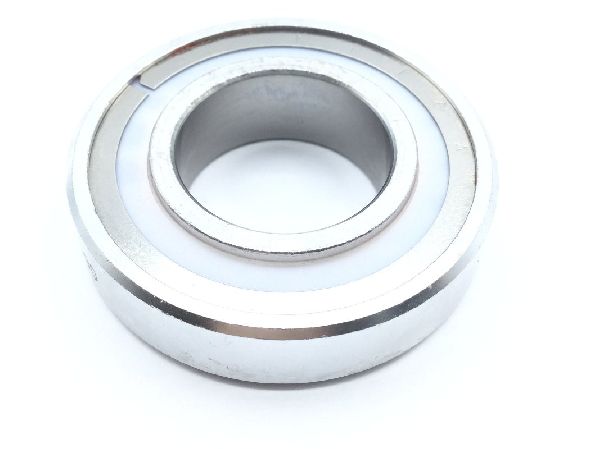

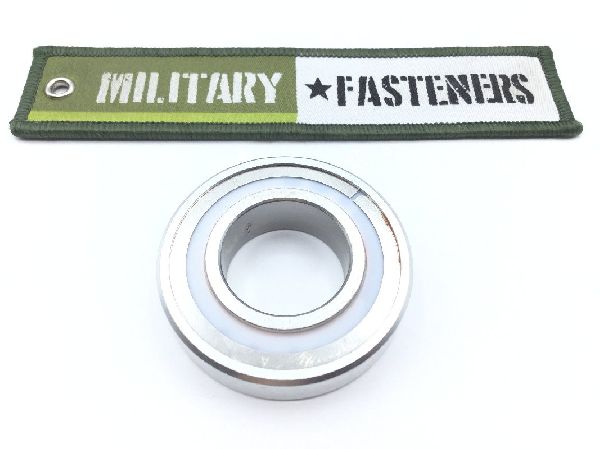

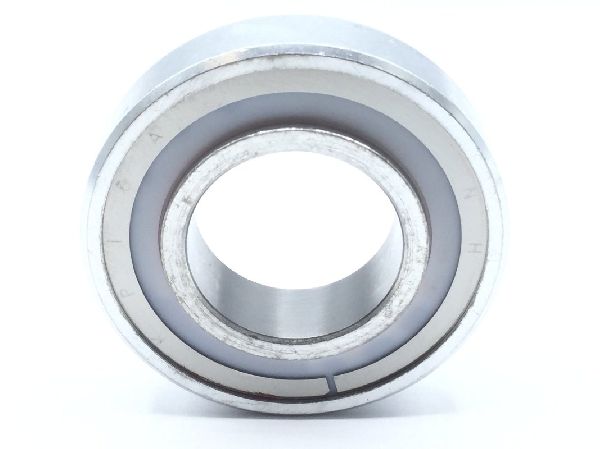

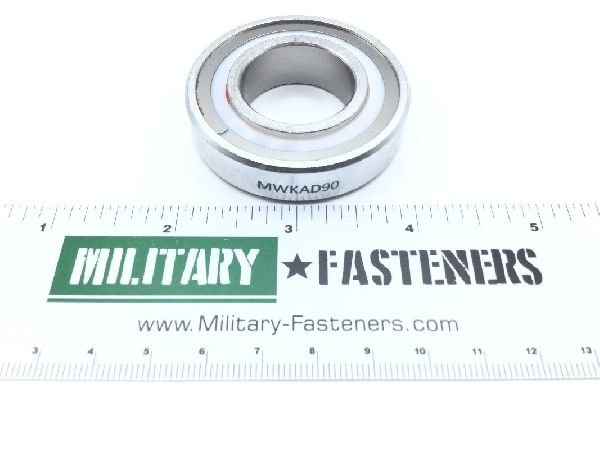

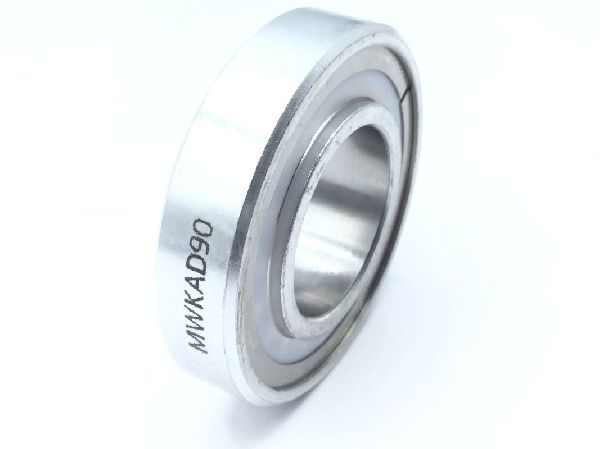

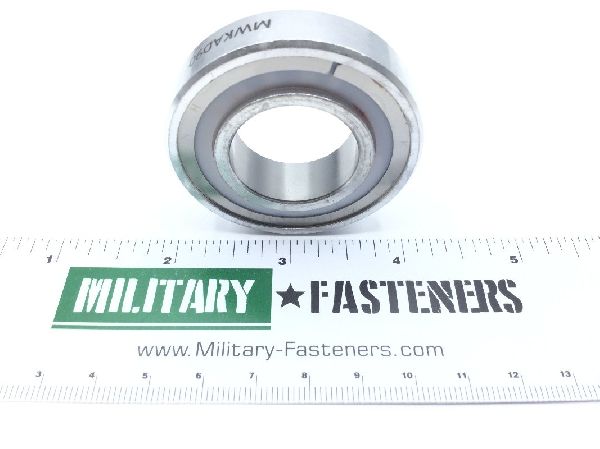

MS27641-16 Airframe Ball Bearing

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.5030

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp e52100 inner ring

Surface Treatment

Class 2 federal specification single treatment response exposed surfaces as mounted type 1 qq-p-416

Bearing Seal Type: Contact
Bore Diameter: 1.00 inches
Inner Ring Width: 0.50 inches
Load Direction: Radial
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: 66 federal standard all material responses ball
Outer Ring Width: 0.4380 inches
Overall Outside Diameter: 2.00 inches
Seal Quantity: 2
Special Features: Radial and lateral eccentricity inner ring 0.0010 in. outer ring 0.0016 in. heat treat rings and balls to rockwell c 60 to 66 and stabilized for operation at 250 deg. f internal radial clearance 0.0004- 0.0010 in. 180 pct. full of mil-g-81322
Standard Tolerance Designation: Afbma standard tolerance for airframe ball bearings
Style Designator: Single row inner ring extended both sides
