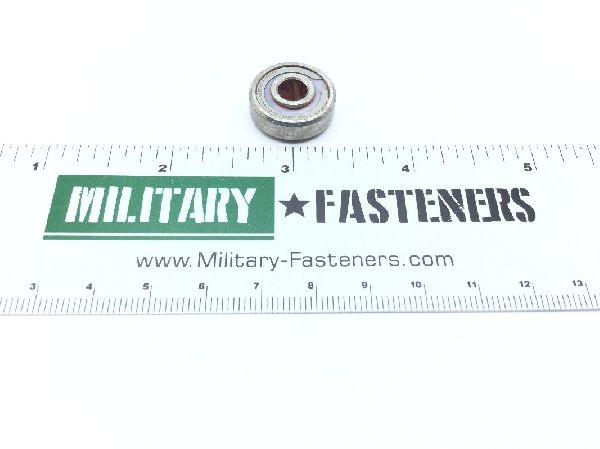

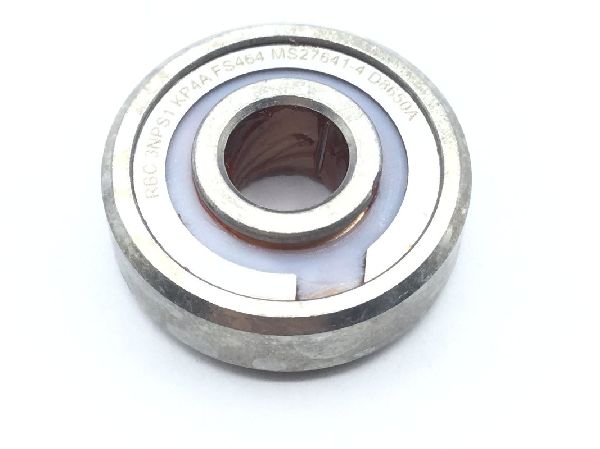

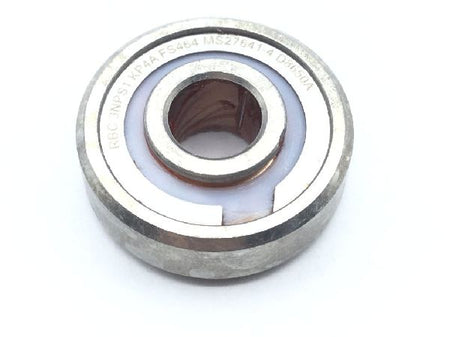

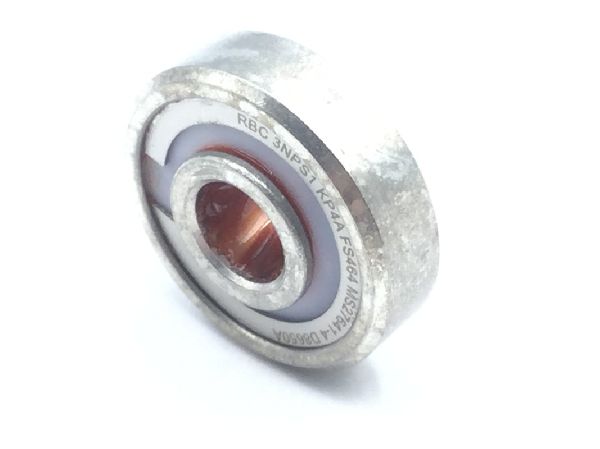

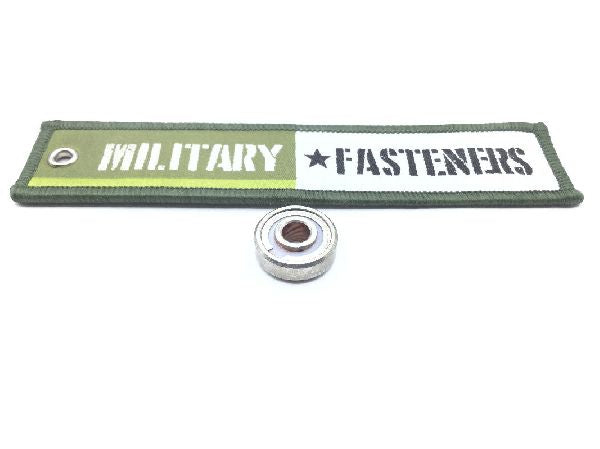

MS27641-4 Airframe Ball Bearing

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.5030

Price per Unit $40.12

Units per Pack 1

Price per Pack $40.12

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $40.12

Add item to quote

Material

Steel comp e52100 inner ring

Bearing Seal Type: Contact
Bore Diameter: Between 0.2495 inches and 0.2500 inches
Inner Ring Width: Between 0.2760 inches and 0.2810 inches
Load Direction: Radial
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-23827 military specification single material response
Outer Ring Width: Between 0.2140 inches and 0.2190 inches
Overall Outside Diameter: Between 0.7495 inches and 0.7500 inches
Seal Quantity: 2
Standard Tolerance Designation: Afbma standard tolerance for airframe ball bearings
Style Designator: Single row inner ring extended both sides
