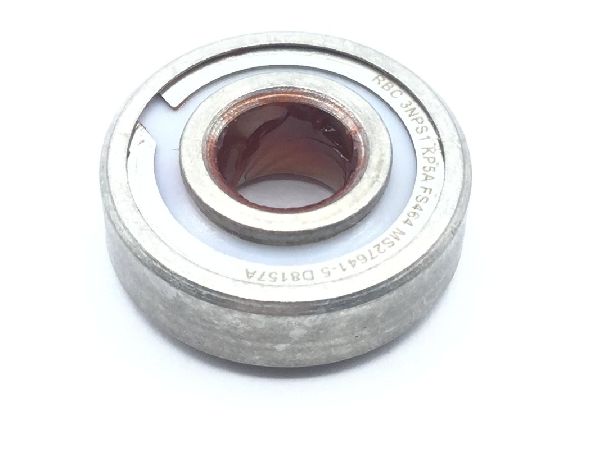

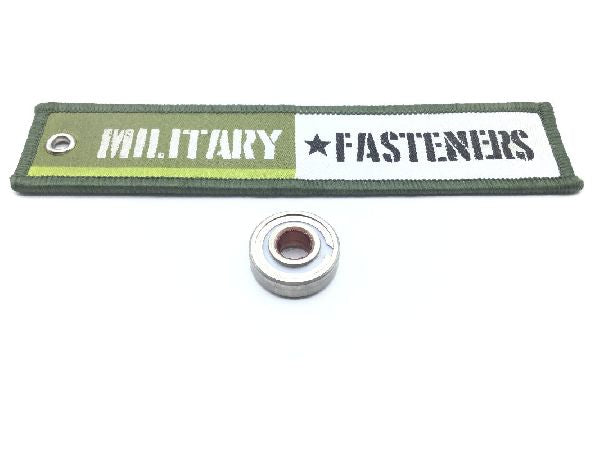

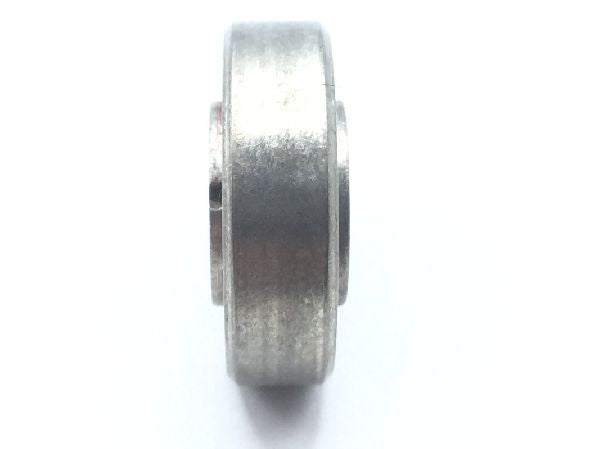

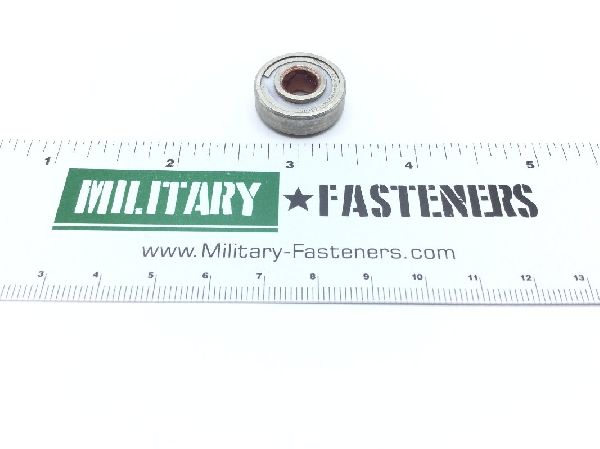

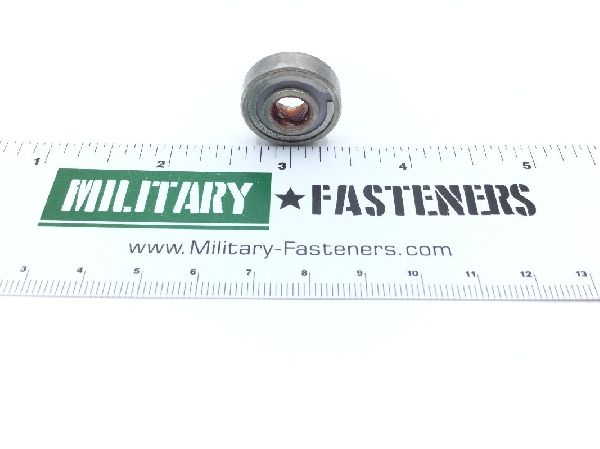

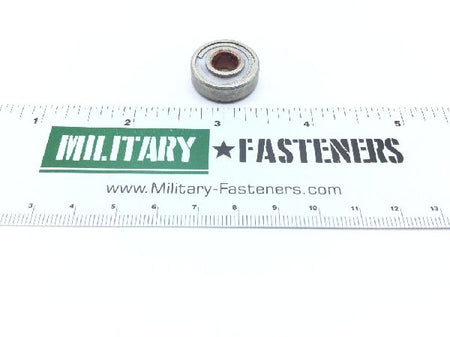

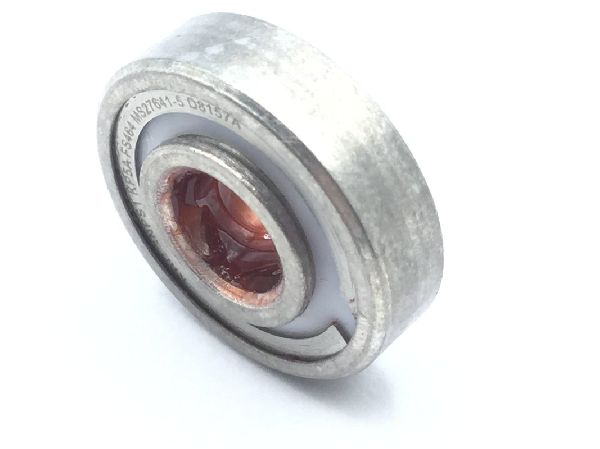

MS27641-5 Airframe Ball Bearing

Product Series: MS
ECCN: EAR99
Schedule: 8482.10.5068

Price per Unit $47.25

Units per Pack 1

Price per Pack $47.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $47.25

Add item to quote

Material

Plastic polytetrafluoroethylene seal

Surface Treatment

Cl 2 federal specification single treatment response exposed surfaces as mounted type 1 qq-p-416

Bearing Seal Type: Contact
Bore Diameter: 0.3125 inches
Inner Ring Width: 0.2970 inches
Load Direction: Radial
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: 66 federal standard all material responses ball
Outer Ring Width: 0.2340 inches
Overall Outside Diameter: 0.8125 inches
Seal Quantity: 2
Special Features: Heat treat rings and balls to rockwell c 60 to 66 and stabilized for operation at 250 degrees f and radial and lateral eccentricity inner ring 0.0010 in. outer ring 0.0016 in. internal radial clearance 0.0004-0.0010 in. 280 pct full of mil-g-81322
Standard Tolerance Designation: Afbma standard tolerance for airframe ball bearings
Style Designator: Single row inner ring extended both sides
