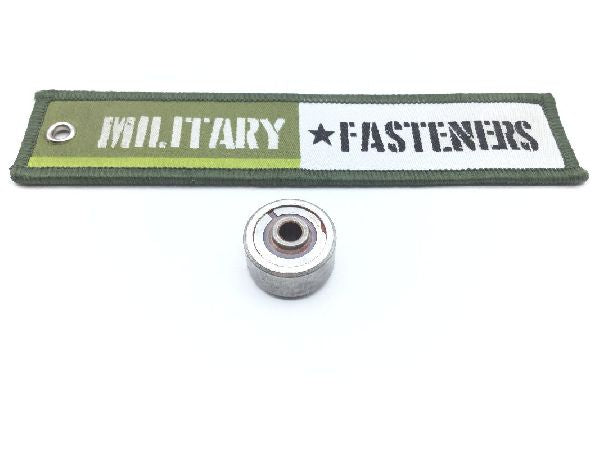

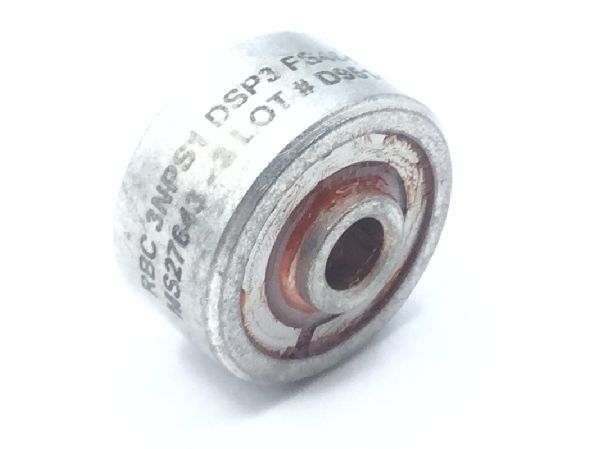

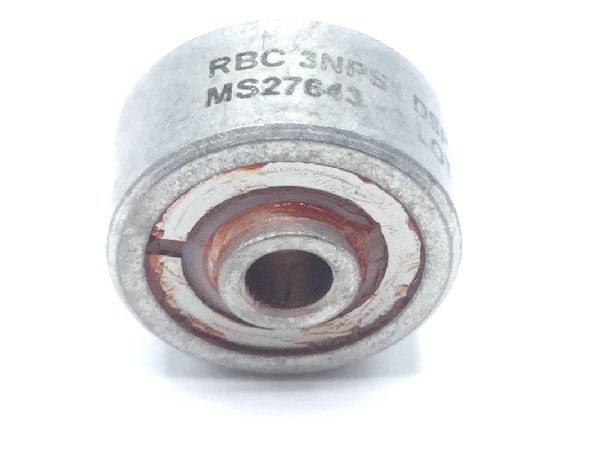

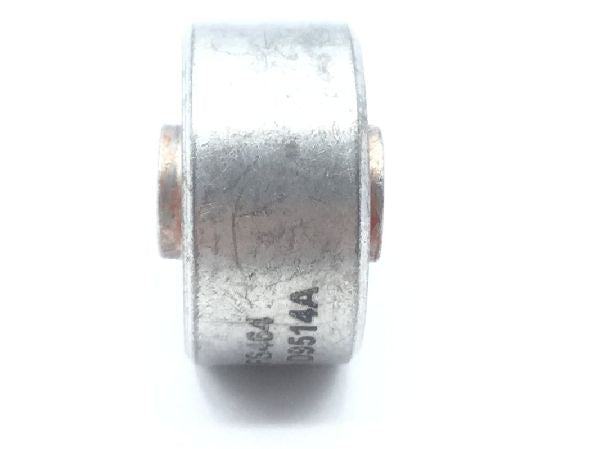

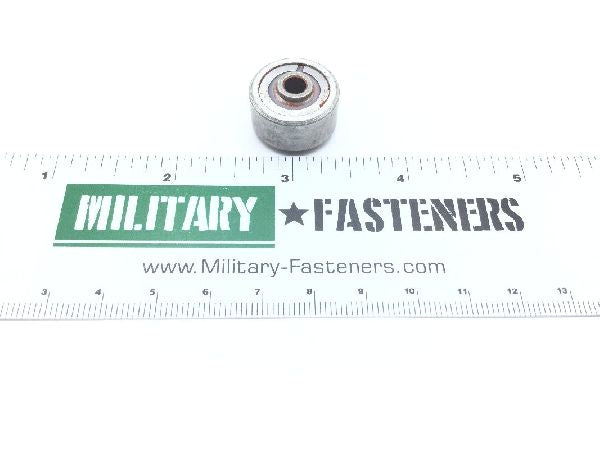

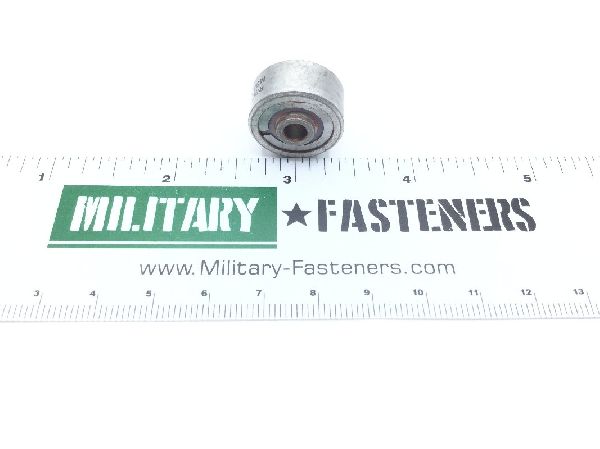

MS27643-3 Airframe Ball Bearing

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Alignment Type: Self-aligning
Bearing Seal Type: Contact
Bore Diameter: 0.19 inches
Inner Ring Width: 0.50 inches
Load Direction: Radial
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: 66 federal standard all material responses ball
Outer Ring Width: 0.392 inches
Overall Outside Diameter: 0.7774 inches
Seal Quantity: 2
Self-alignment Location: Internal
Special Features: H80 pct full of mil-g-81322 also axial play 0.0055 in. max also heat treat rings and balls to rockwell c60 to c66 and stabilized for operation at 250 degrees f also 10 degrees self-aligning in either direction
Standard Tolerance Designation: Afbma standard tolerance for airframe ball bearings
Style Designator: Self aligning double row
