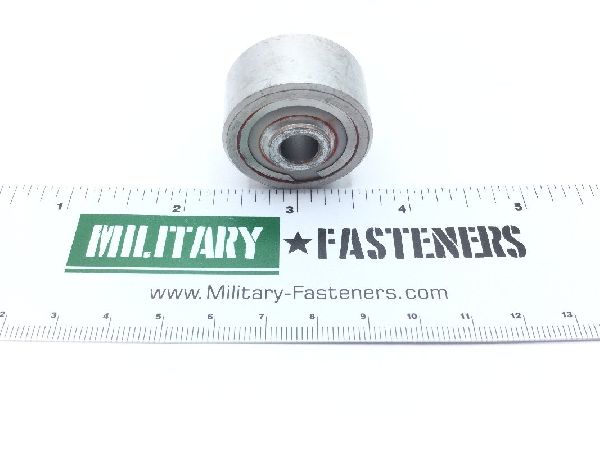

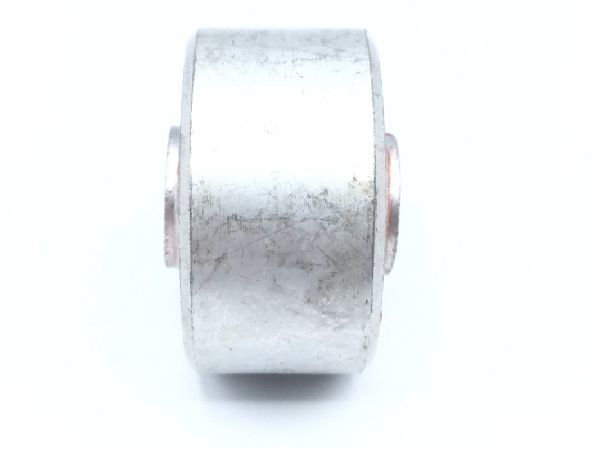

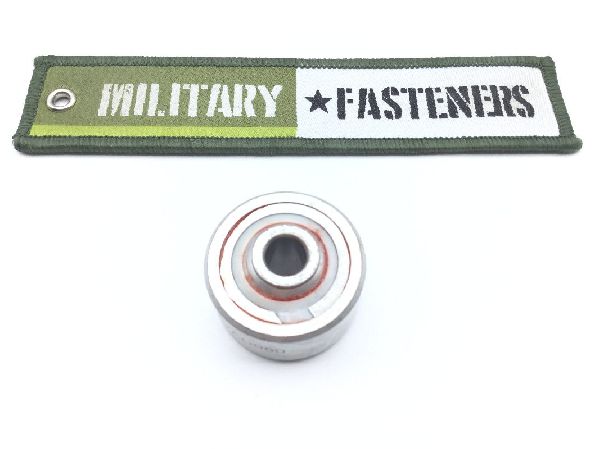

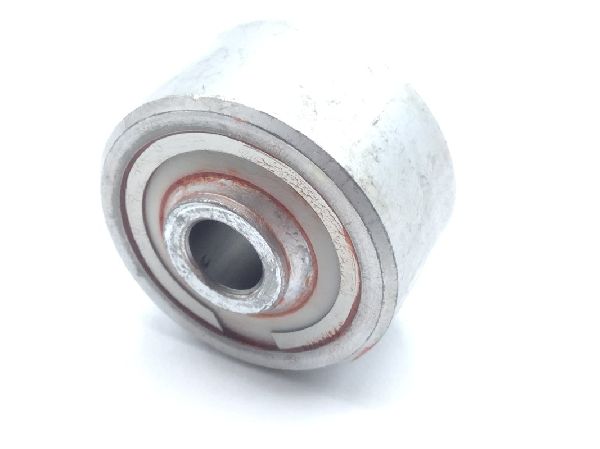

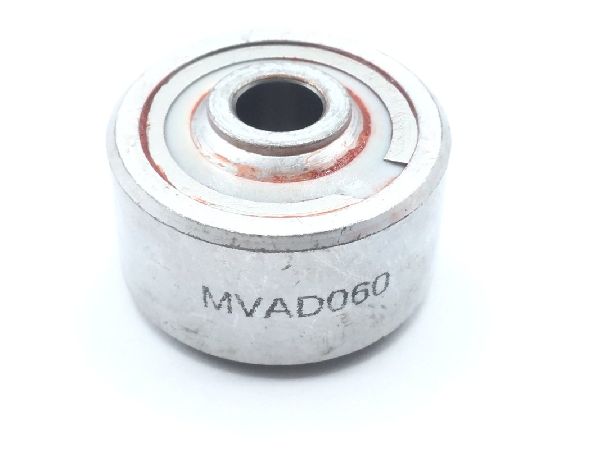

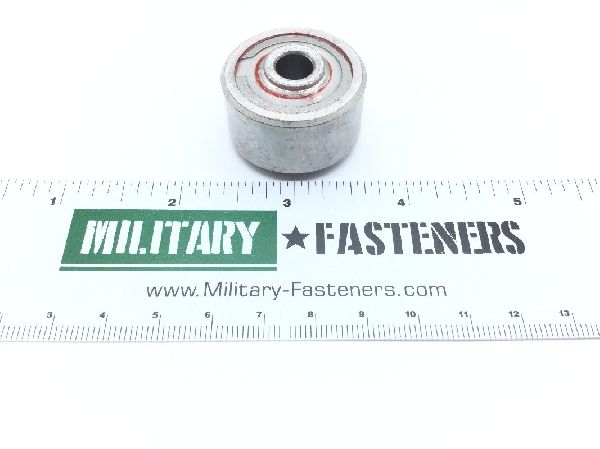

MS27643-5 Airframe Ball Bearing

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Alignment Type: Self-aligning
Bearing Seal Type: Contact
Bore Diameter: 0.3125 inches
Inner Ring Width: 0.8120 inches
Load Direction: Radial
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: 66 federal standard all material responses ball
Outer Ring Width: 0.6560 inches
Overall Outside Diameter: 1.2500 inches
Seal Quantity: 2
Self-alignment Location: Internal
Special Features: 10 degrees self-aligning in either direction heat treat rings and balls to rockwell c 60 t0 66 and stabilized for operation at 250 deg.f axial play 0.006 in. max. 80 pct. full of mil-g-81322
Standard Tolerance Designation: Afbma standard tolerance for airframe ball bearings
Style Designator: Self aligning double row
