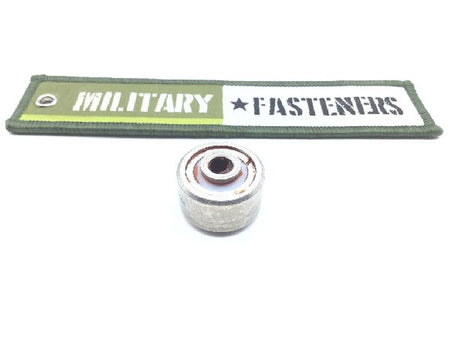

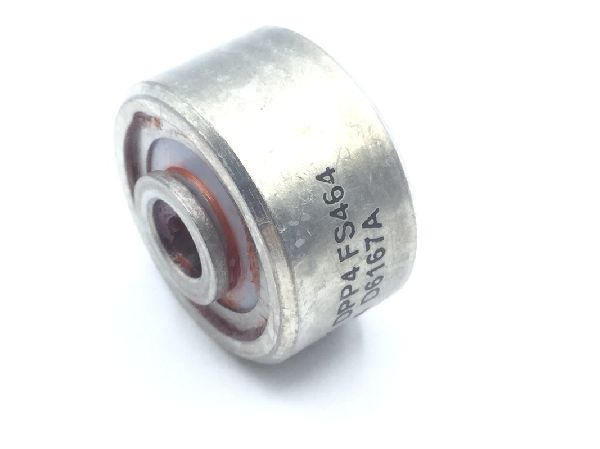

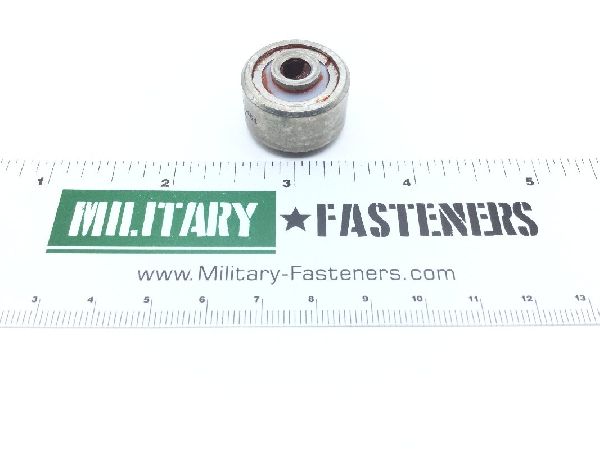

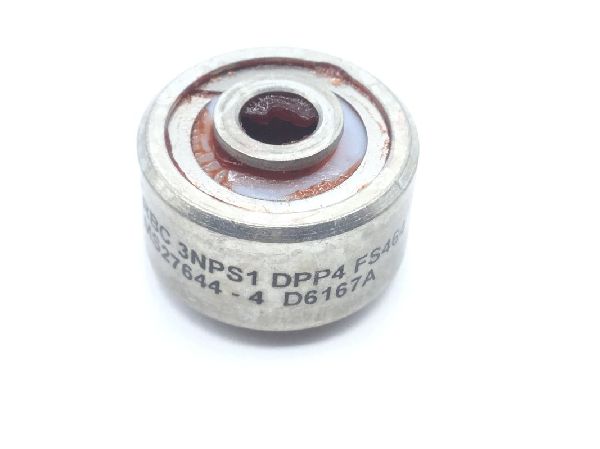

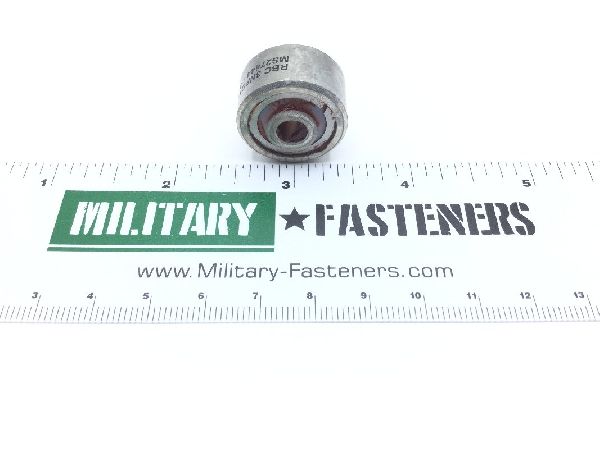

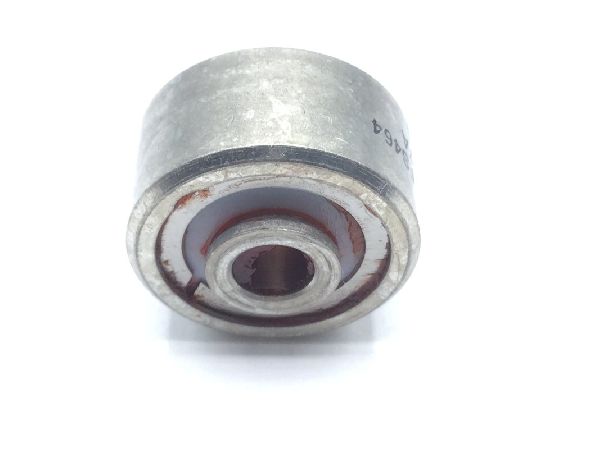

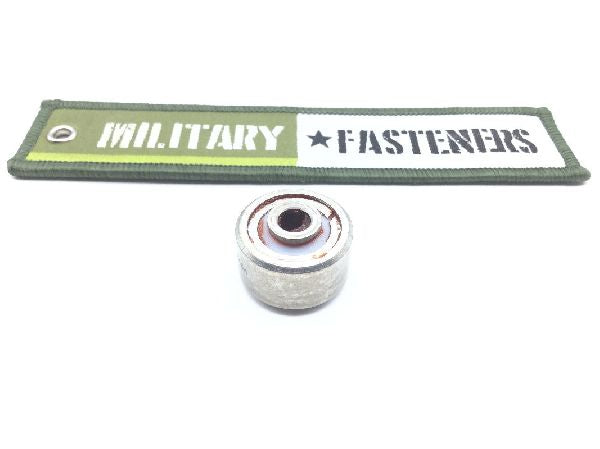

MS27644-4 Airframe Ball Bearing

Product Series: MS
ECCN: EAR99
Schedule: 8482.10.5068

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel outer ring

Surface Treatment

Cl 2 federal specification single treatment response exposed surfaces as mounted type 1 qq-p-416

Bearing Seal Type: Contact
Bore Diameter: 0.2500 inches
Inner Ring Width: 0.6200 inches
Load Direction: Radial
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: Ams 3652 assn standard single material response seal or ams 3666 assn standard single material response seal
Outer Ring Width: 0.4910 inches
Overall Outside Diameter: 0.9014 inches
Seal Quantity: 2
Special Features: 0.0016 in outer ring radial and lateral eccentrici type 0.0010 in. inner ring heat treat rings and balls to rockwell c 60 to 66 and stabilized for operation at 250 degrees f axial play 0.006 in. r80 pct. full of mil-g-81322'
Standard Tolerance Designation: Afbma standard tolerance for airframe ball bearings
Style Designator: Double row
