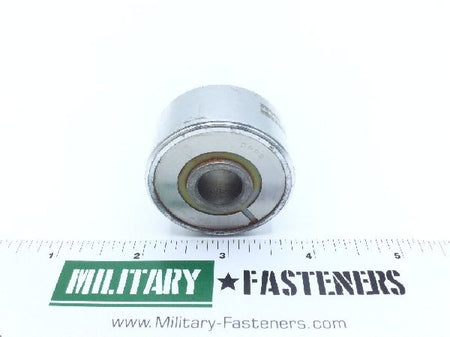

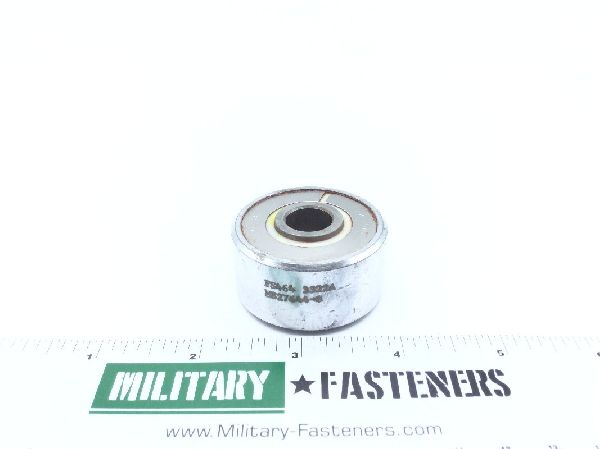

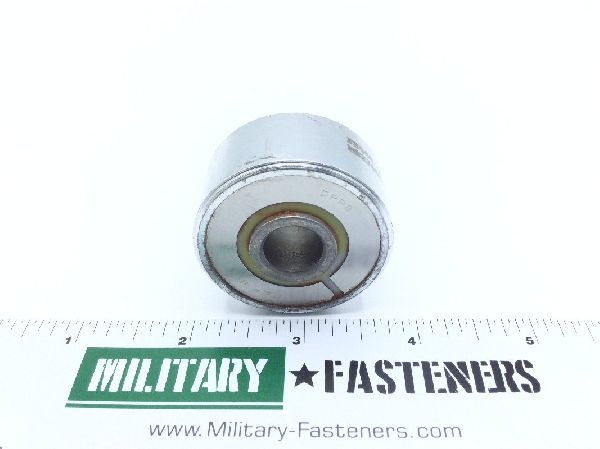

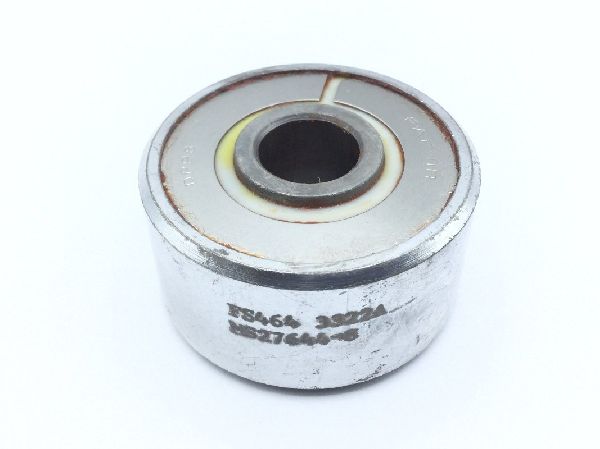

MS27644-8 Airframe Ball Bearing

Product Series: MS
ECCN: EAR99
Schedule: 8482.10.5068

Price per Unit $143.32

Units per Pack 1

Price per Pack $143.32

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $143.32

Add item to quote

Material

Steel comp e52100 outer ring

Surface Treatment

Cl 2 federal specification single treatment response outer ring type 1 qq-p-416

Bearing Seal Type: Contact
Bore Diameter: 0.5000 inches
Inner Ring Width: 0.9320 inches
Load Direction: Radial
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: Ams 3652 assn standard single material response seal
Outer Ring Width: 0.8560 inches
Overall Outside Diameter: 1.6875 inches
Seal Quantity: 2
Special Features: 0.0016 in. outer ring radial and lateral eccentrici type 0.0010 in. inner ring heat treat rings and balls to rockwell c 60 to 66 and stabilized for operation at 250 degrees f axial play 0.007 in. q80 pct. full of mil-g-81322
Standard Tolerance Designation: Afbma standard tolerance for airframe ball bearings
Style Designator: Double row
