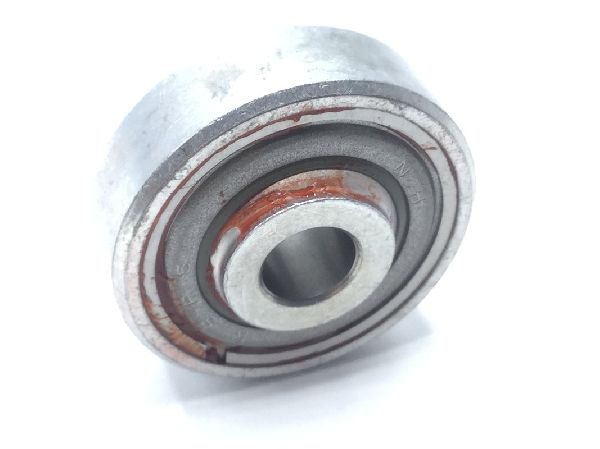

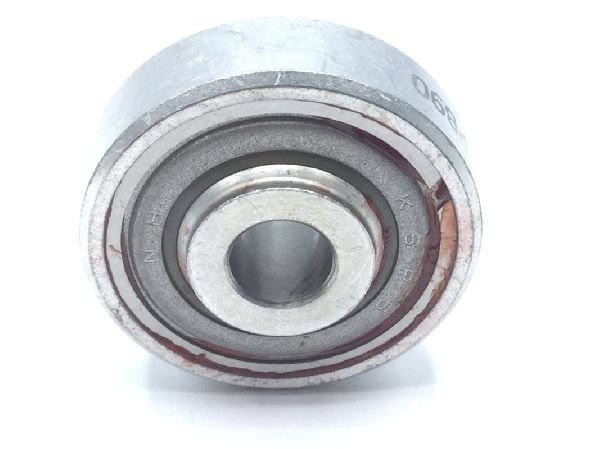

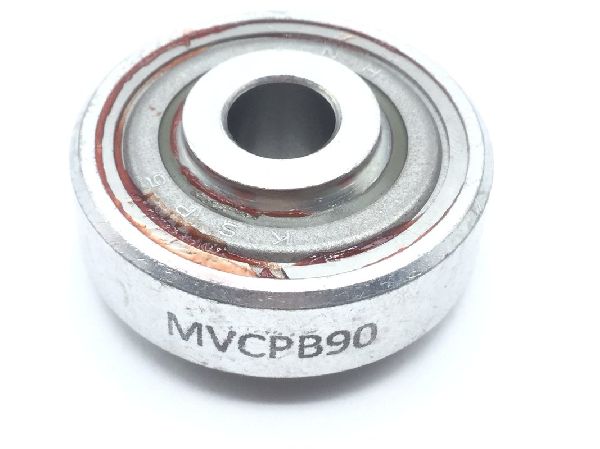

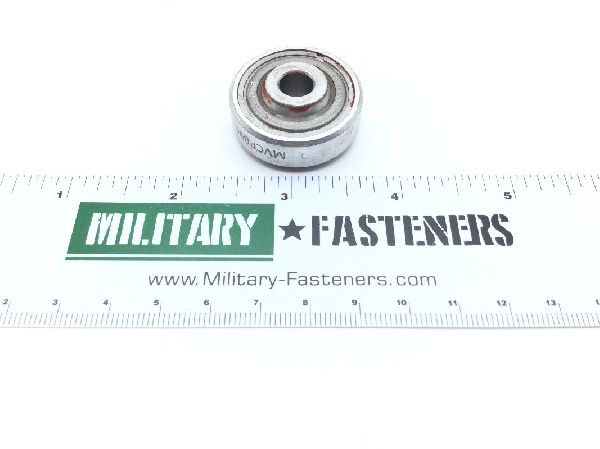

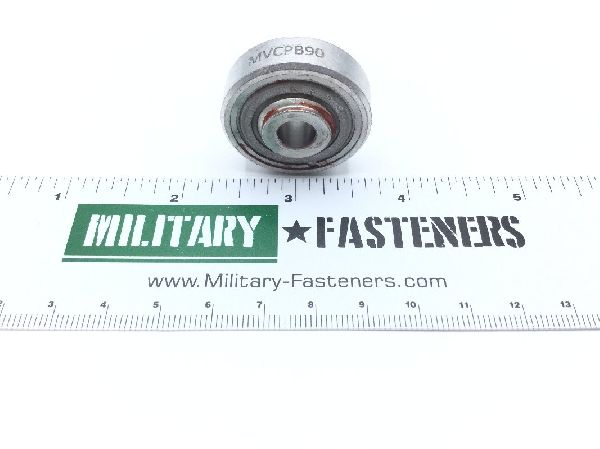

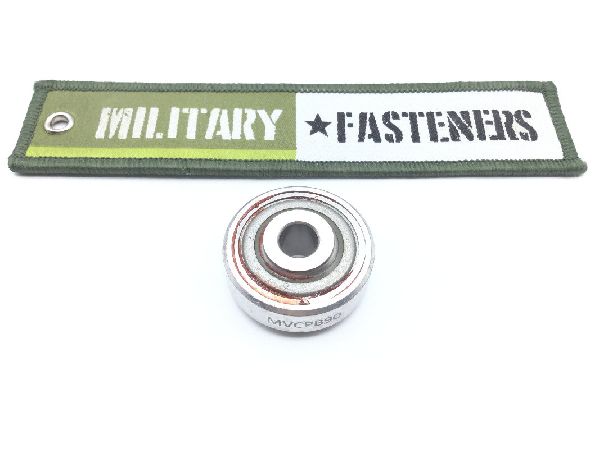

MS27645-5 Airframe Ball Bearing

Product Series: MS
ECCN: EAR99
Schedule: 8482.10.5068

Price per Unit $88.87

Units per Pack 1

Price per Pack $88.87

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $88.87

Add item to quote

Material

Steel comp e52100 outer ring

Surface Treatment

Cl 2 federal specification single treatment response exposed surfaces as mounted type 1 qq-p-416

Alignment Type: Self-aligning
Bearing Seal Type: Contact
Bore Diameter: 0.3125 inches
Inner Ring Width: 0.5580 inches
Load Direction: Radial
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: Ams 3652 assn standard single material response seal or ams 3666 assn standard single material response seal
Outer Ring Width: 0.3750 inches
Overall Outside Diameter: 1.2500 inches
Seal Quantity: 2
Self-alignment Location: Internal
Special Features: 10 degrees self-aligning in either direction heat treat rings and balls to rockwell c 60 to 66 and stabilized for operation at 250 deg.f axial play 0.028 in. max. 80 pct. full of mil-g-81322
Standard Tolerance Designation: Afbma standard tolerance for airframe ball bearings
Style Designator: Single row self aligning single row inner ring extended both sides
