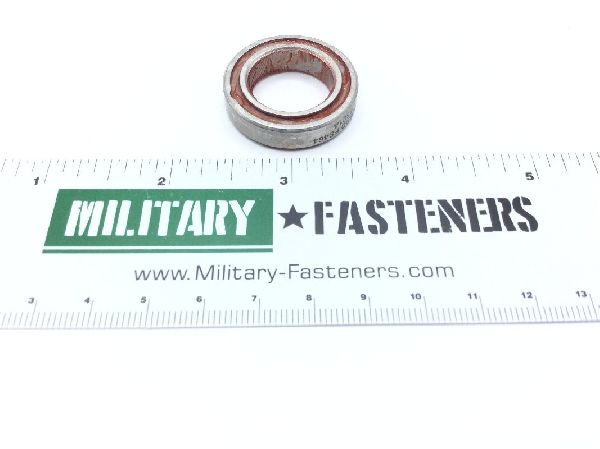

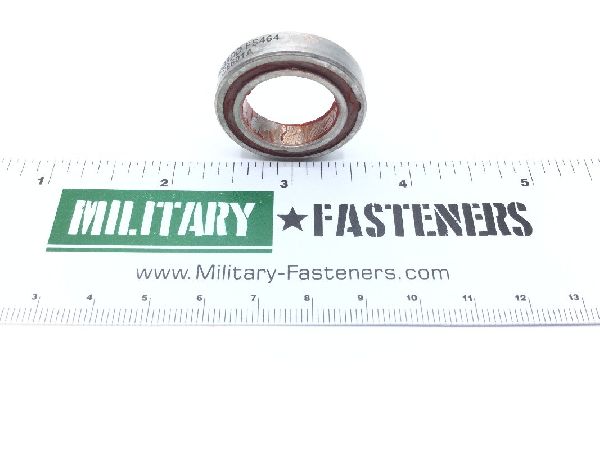

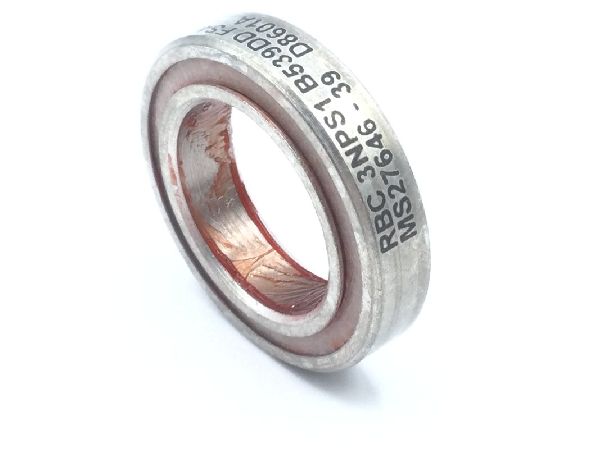

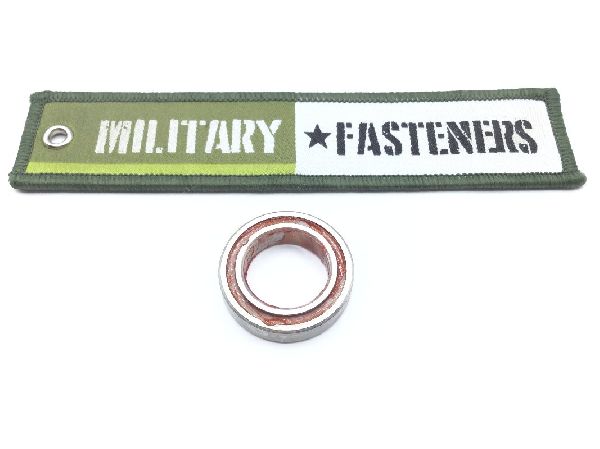

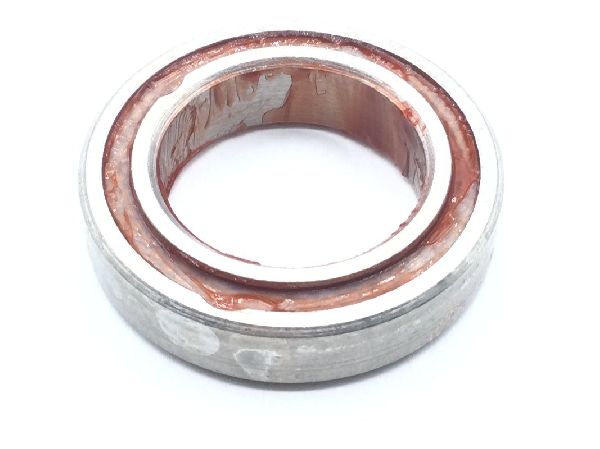

MS27646-39 Airframe Ball Bearing

Product Series: MS
ECCN: EAR99
Schedule: 8482.10.5068

Price per Unit $69.23

Units per Pack 1

Price per Pack $69.23

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $69.23

Add item to quote

Material

Steel comp e52100 inner ring

Surface Treatment

Cl 2 federal specification single treatment response exposed surfaces as mounted type 1 qq-p-416

Bearing Seal Type: Contact
Bore Diameter: Between 0.7493 inches and 0.7507 inches
Inner Ring Width: Between 0.2760 inches and 0.2810 inches
Load Direction: Radial
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: Ams 3662 assn standard 1st material response seal or ams 3666 assn standard 2nd material response seal
Outer Ring Width: Between 0.2450 inches and 0.2500 inches
Overall Outside Diameter: Between 1.1865 inches and 1.1875 inches
Seal Quantity: 2
Special Features: Filled with 80 pct specified lubricant
Style Designator: Single row inner ring extended both sides
