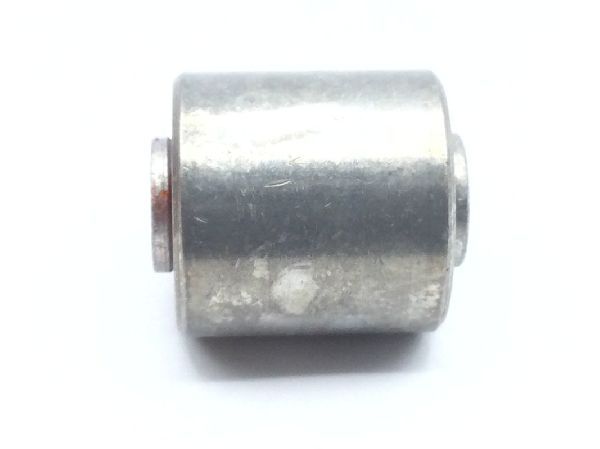

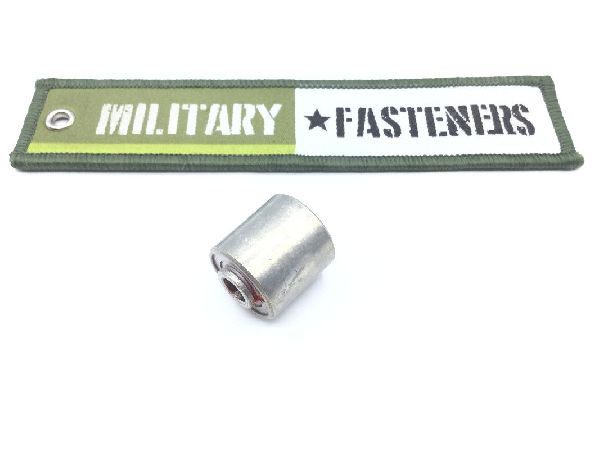

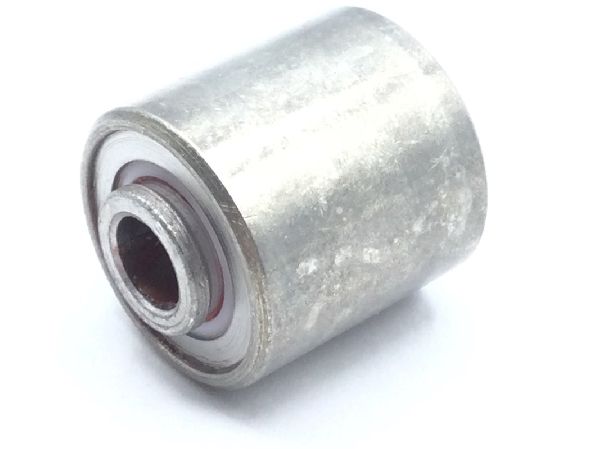

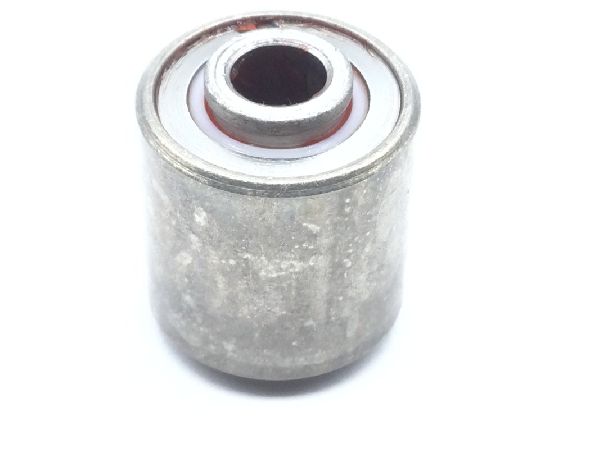

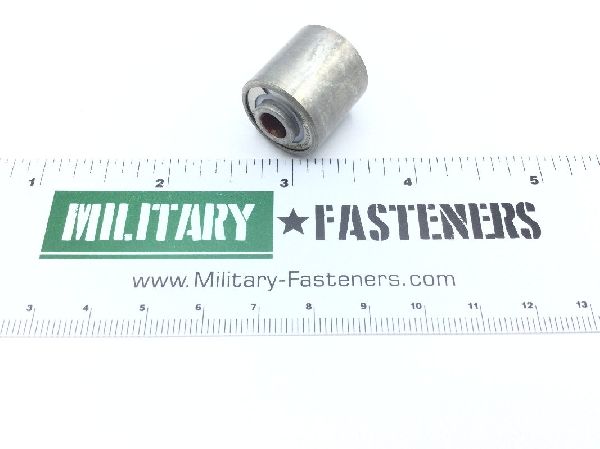

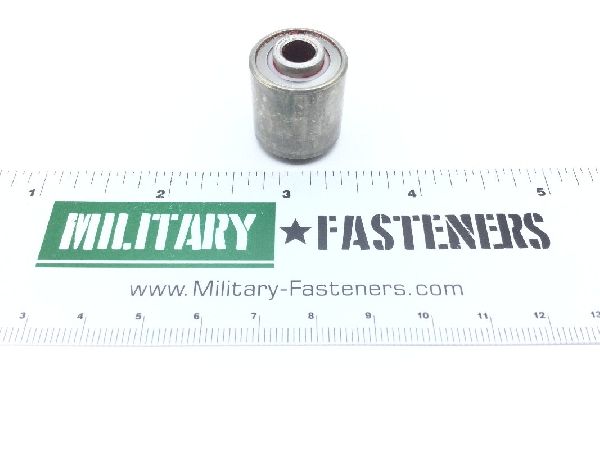

MS27647-4 Airframe Ball Bearing

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.5030

Price per Unit $111.30

Units per Pack 1

Price per Pack $111.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $111.30

Add item to quote

Material

Steel comp e52100 inner ring

Surface Treatment

Cl2 federal specification single treatment response all external/exposed metal surfaces type 1 qq-p-416

Bearing Seal Type: Contact
Bore Diameter: Between 0.2495 inches and 0.2500 inches
Inner Ring Width: Between 0.8700 inches and 0.8750 inches
Load Direction: Radial
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: Ams 6440 assn standard single material response inner ring
Outer Ring Width: Between 0.7450 inches and 0.7500 inches
Overall Outside Diameter: Between 0.7495 inches and 0.7500 inches
Part Name Assigned By Controlling Agency: Intermediate duty extra wide double row anti friction airframe bearing ball
Seal Quantity: 2
Special Features: 0.0016 in. outer ring radial and lateral eccentrici type 0.0010 in. inner ring heat treat rings and balls to rockwell c scale 60 to 66 and heat stabilized for operation at 250 degrees f m80 pct full of grease mil-g-81322
Style Designator: Double row
