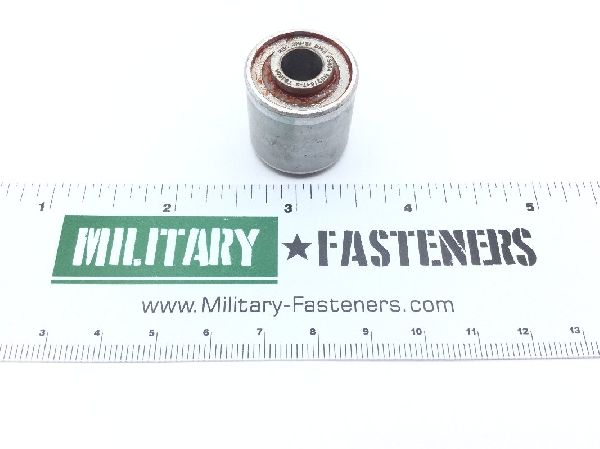

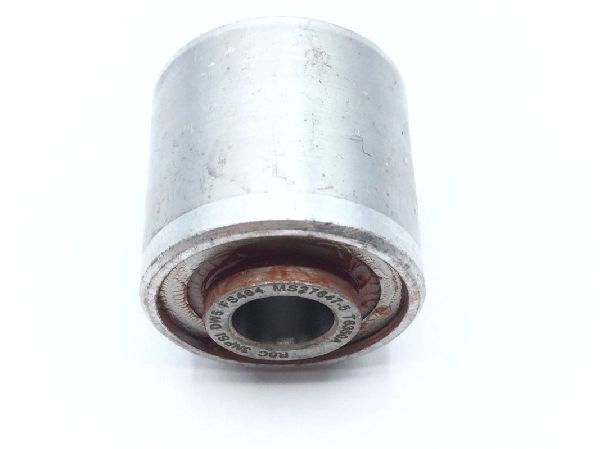

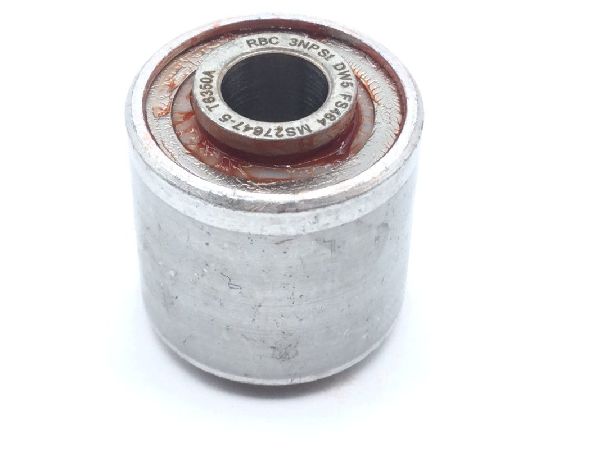

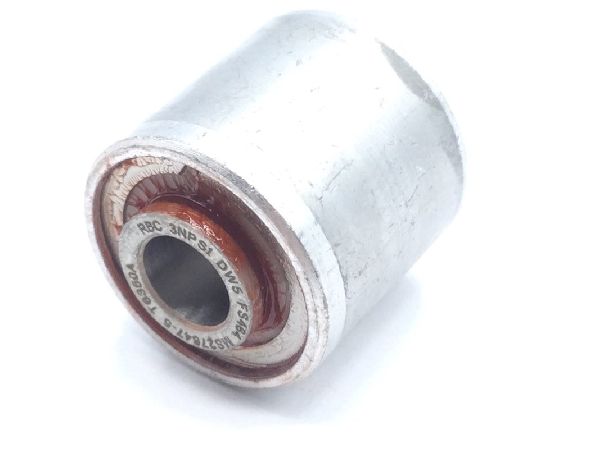

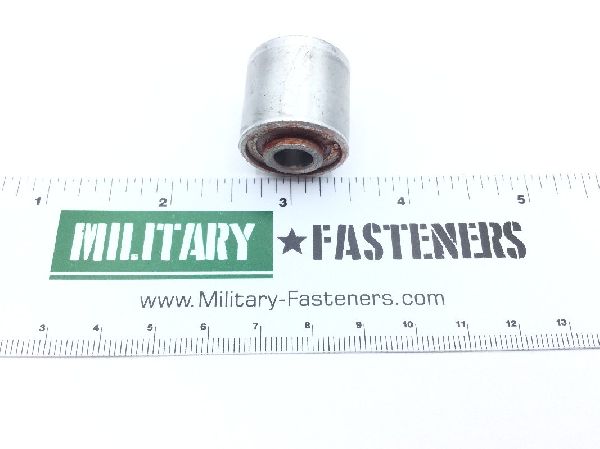

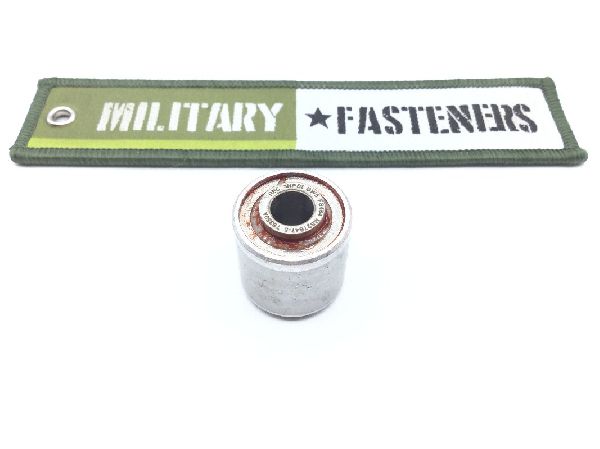

MS27647-5 Airframe Ball Bearing

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.5030

Price per Unit $148.05

Units per Pack 1

Price per Pack $148.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $148.05

Add item to quote

Material

Steel comp e52100 inner race

Bearing Seal Type: Contact
Bore Diameter: 0.3125 inches
Inner Ring Width: 0.938 inches
Load Direction: Angular
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: 66 federal standard single material response outer race
Outer Ring Width: 0.813 inches
Overall Outside Diameter: 0.875 inches
Seal Quantity: 2
Special Features: Seals and seal retainers cl 2 all external surfaces except bore type 1 qq-p-416 steel corrosion resistant seal retainers; cadmium
Standard Tolerance Designation: Afbma standard tolerance for airframe ball bearings
Style Designator: Double row
