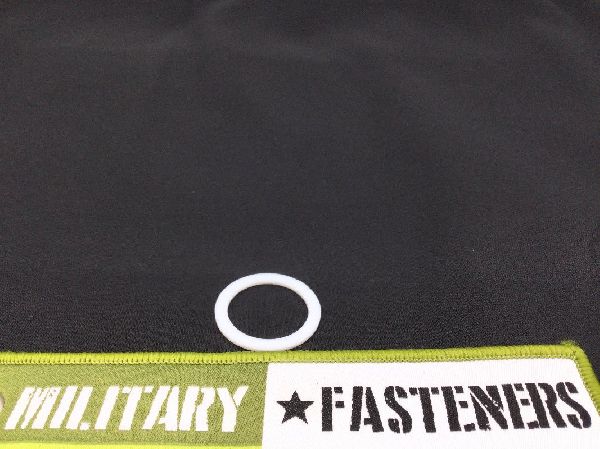

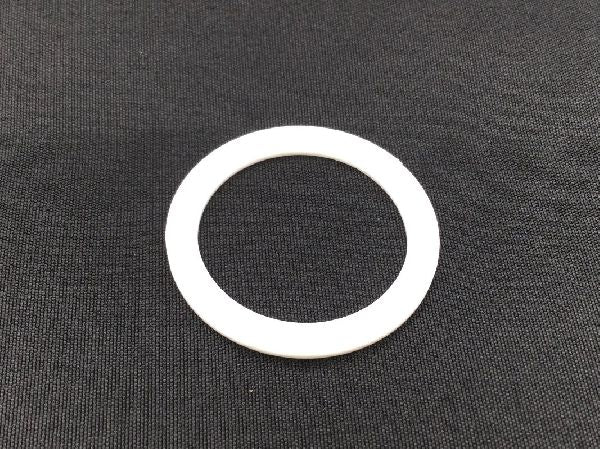

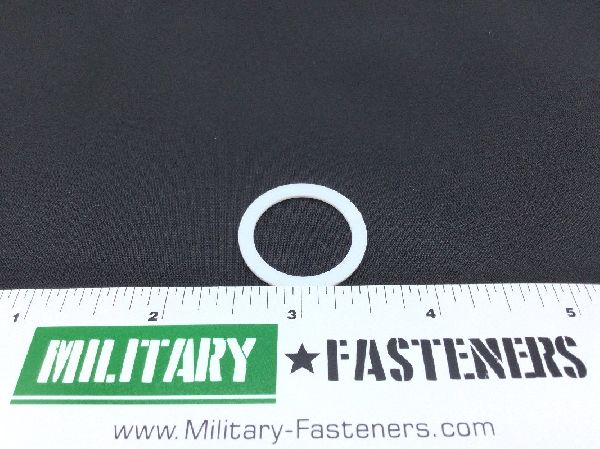

MS28774-211 Packing Retainer

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $1.39

Units per Pack 25

Price per Pack $34.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $34.75

Add item to quote

Material

Plastic tetrafluoroethylene

Center Hole Diameter: Between 0.827 inches and 0.829 inches
Criticality Code Justification: Zzzx
Cross Sectional Shape: Square/rectangular
Cross-sectional Height: Between 0.045 inches and 0.052 inches
Cut Type: Diagonal
Departure From Cited Designator: Cleaned in accordance with mil-p-52211/ce/
Joint Type: Scarf-peripheral
Material Specification: Sae-as8791 national specification single material response
Peripheral Diameter: Between 1.064 inches and 1.068 inches
