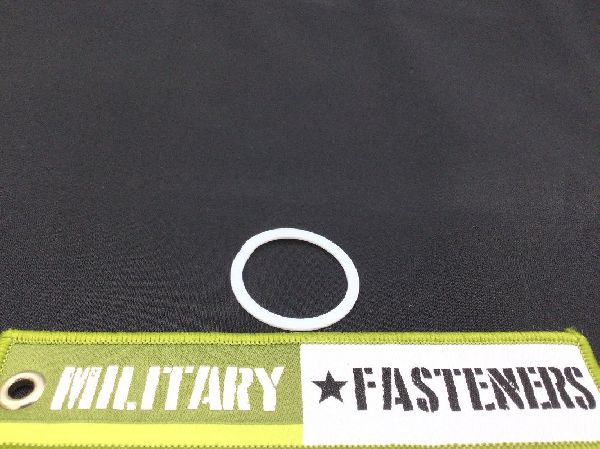

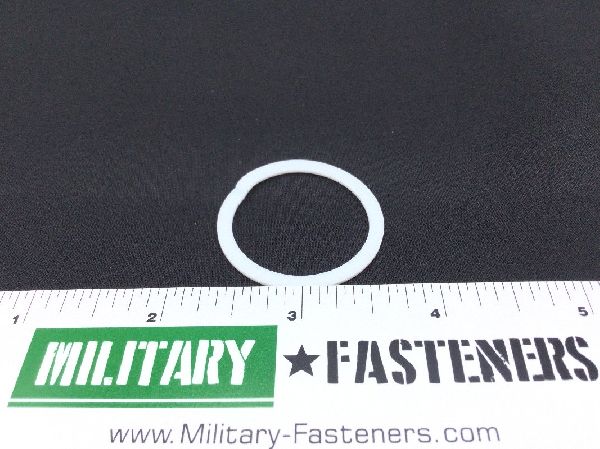

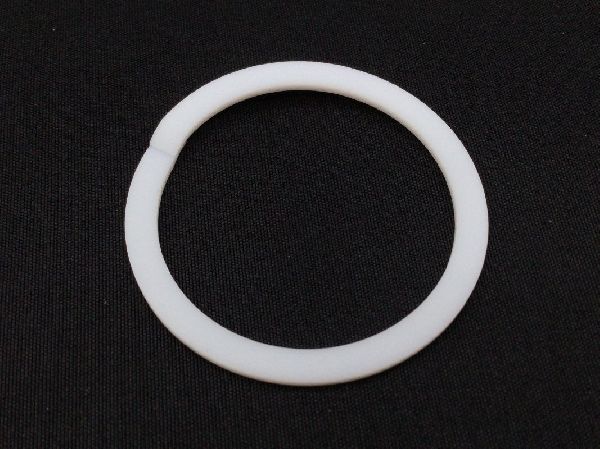

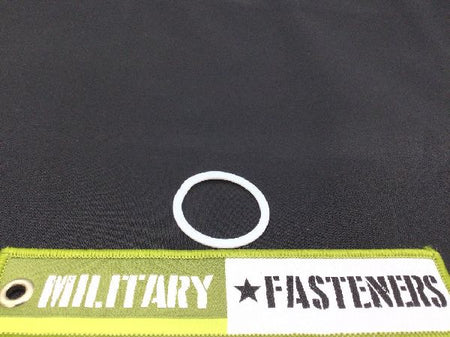

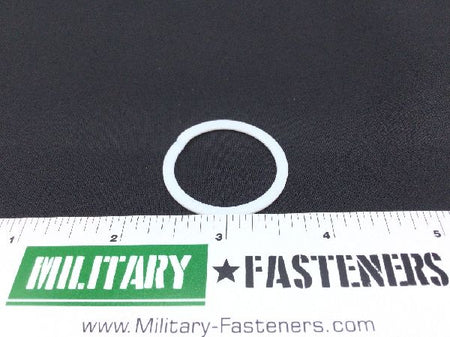

MS28774-216 Packing Retainer

Product Series: MS
ECCN: EAR99
Schedule: 3926.90.4500

Price per Unit $1.11

Units per Pack 50

Price per Pack $55.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $55.50

Add item to quote

Material

Plastic tetrafluoroethylene

Center Hole Diameter: Between 1.140 inches and 1.142 inches
Criticality Code Justification: Zzzy
Cross Sectional Shape: Square/rectangular
Cross-sectional Height: Between 0.045 inches and 0.052 inches
Cut Type: Diagonal
Departure From Cited Designator: Cleaned in accordance with mil-std 1330.
Joint Quantity: 1
Joint Type: Scarf-peripheral retainer
Material Specification: Sae-as8791 national specification single material response
Peripheral Diameter: Between 1.377 inches and 1.381 inches
Reference Number Differentiating Characteristics: And marking iaw mil-std-1330d packaging cleaning
