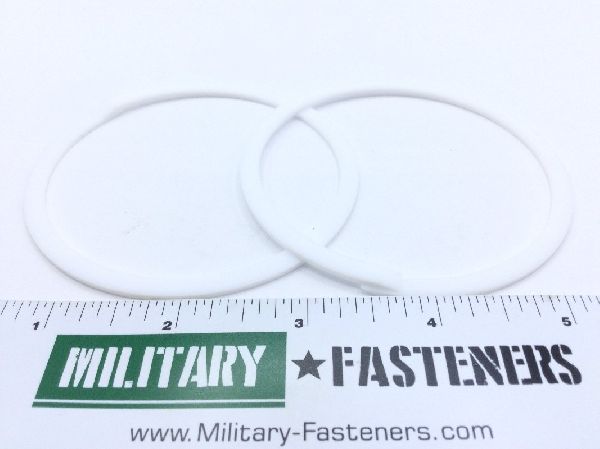

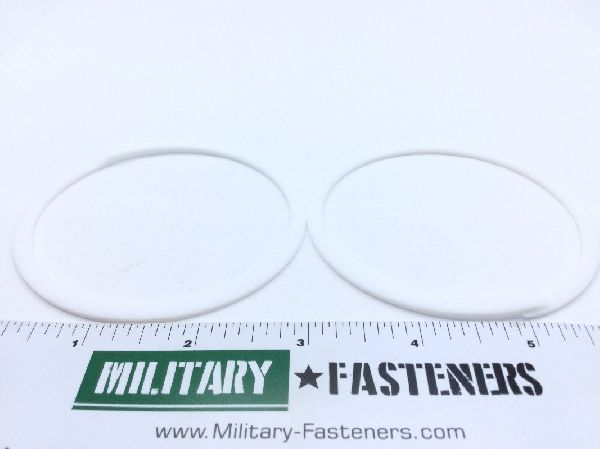

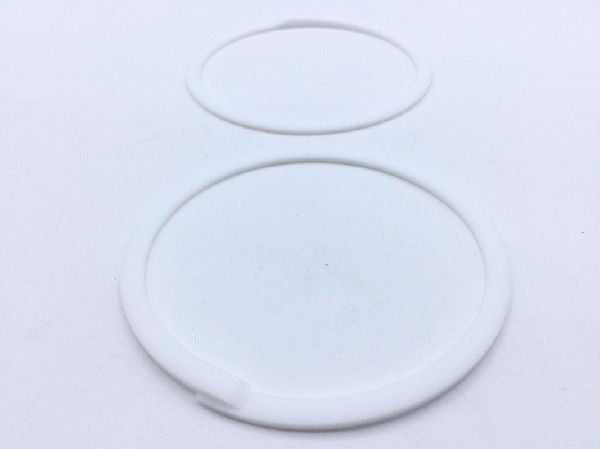

MS28774-336 Packing Retainer

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Plastic tetrafluoroethylene

Center Hole Diameter: Between 2.892 inches and 2.894 inches
Cross Sectional Shape: Square/rectangular
Cross-sectional Height: Between 0.065 inches and 0.075 inches
Cut Type: Diagonal
Joint Type: Scarf-peripheral retainer
Material Specification: Sae-as8791 national specification single material response
Peripheral Diameter: Between 3.257 inches and 3.261 inches
