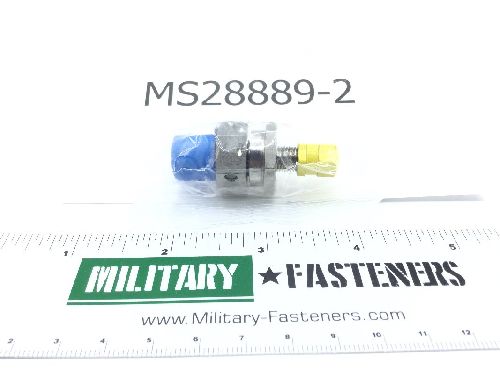

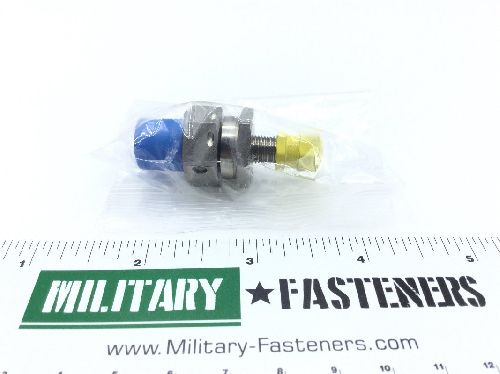

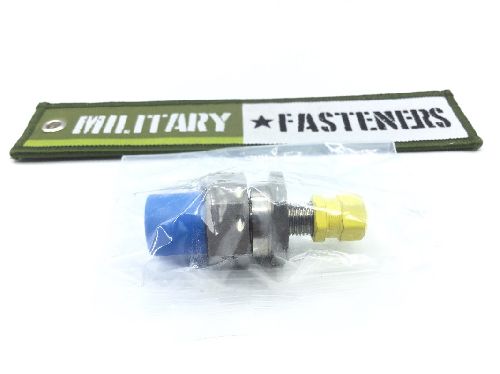

MS28889-2 Pneumatic Tank Valve

Product Series: MS
ECCN: EAR99
Schedule: 8481.40.0000

Price per Unit $25.14

Units per Pack 1

Price per Pack $25.14

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $25.14

Add item to quote

Body Material: Steel
Body Style: Straight thru
Commercial Core Length Designator: Standard
Commercial Spring Tension Rating: Not Rated
Core Environmental Protection: Corrosion
End Connection Quantity: 2
First End Connection Type: Threaded external boss
First End Style Designator: External seat for gasket seal
First End Thread Class: 3a
First End Thread Direction: Right-hand
Flow Control Device: Stem and integral disk
Flow Control Device Material: Steel
Furnished Items: Cap
Media For Which Designed: Air or gas
Outside Surface Treatment: Passivated and dichromate treated
Seat Material: Steel
Second End Connection Type: Threaded external tube
Second End Outside Diameter Tube Accommodated: 0.125 inches
Second End Relationship With First End: Not identical
Second End Style Designator: Hose socket
Second End Thread Class: 3a
Second End Thread Direction: Right-hand
Special Features: 2 lockwire holes and 5000.0 psi operating pressure
Spring Material: Class 303 qq-s-763 steel
Stem Material: Comp. 303se qq-s-764 cres steel
