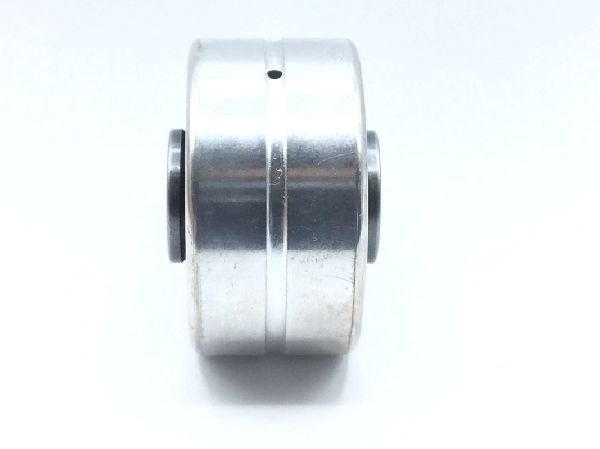

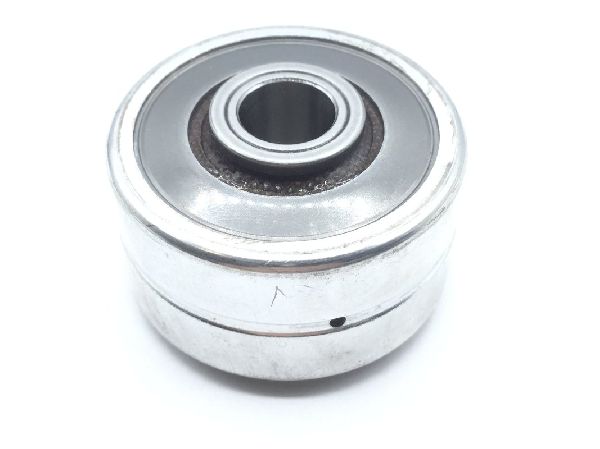

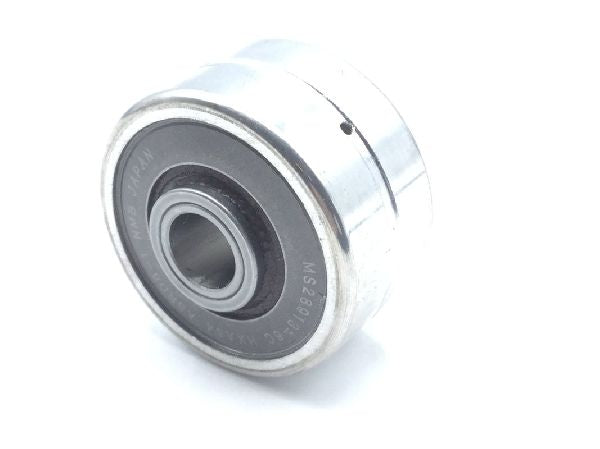

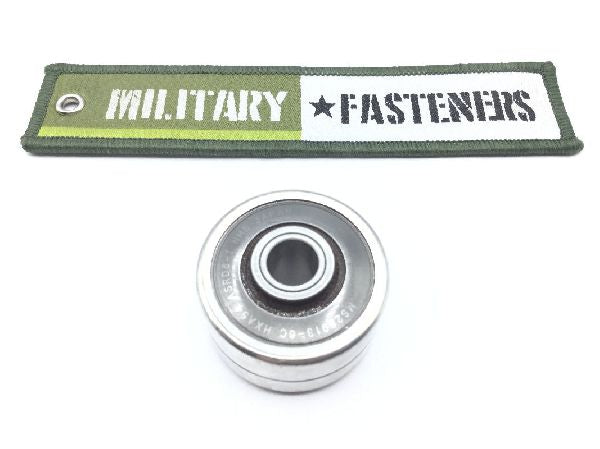

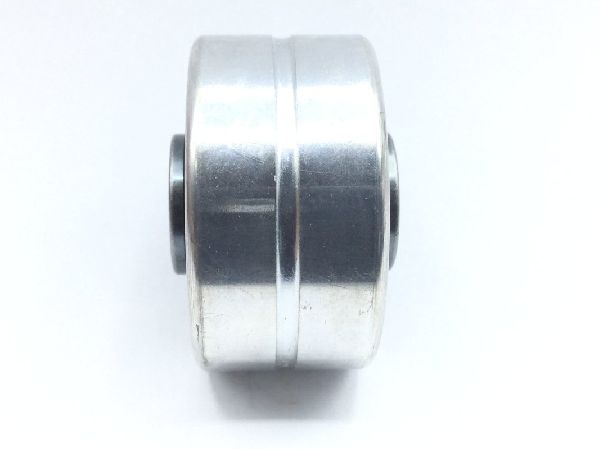

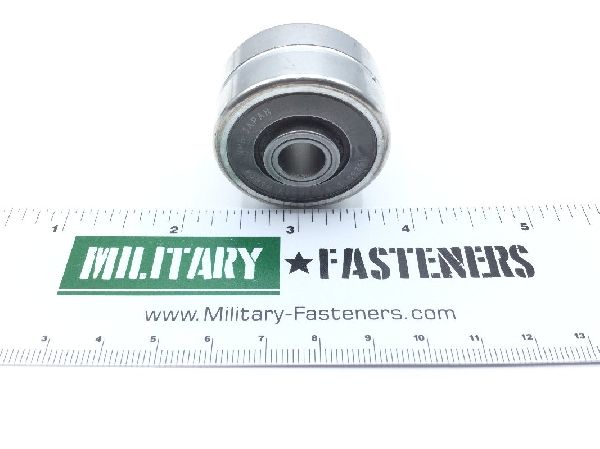

MS28913-6C Airframe Roller Bearing

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.5030

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Plastic polytetrafluoroethylene seal

Surface Treatment

Cl 2 federal specification single treatment response all external/exposed metal surfaces type 1 qq-p-416

Bearing Seal Type: Contact
Bore Diameter: Between 0.3745 in and 0.3750 in
Inner Ring Width: Between 0.9320 in and 0.9370 in
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Material Specification: Qq-c-390 federal specification single material response retainer
Outer Ring Width: Between 0.7450 in and 0.7500 in
Overall Outside Diameter: Between 1.4370 in and 1.4375 in
Retainer Fabrication Method: Machined
Seal Quantity: 2
Special Features: 0.0002 in. min 0.0010 in. max internal clearance; 2 oil holes and groove in od of outer ring; 10 degrees self alignment either direction
Style Designator: Self aligning double closure concave rollers
