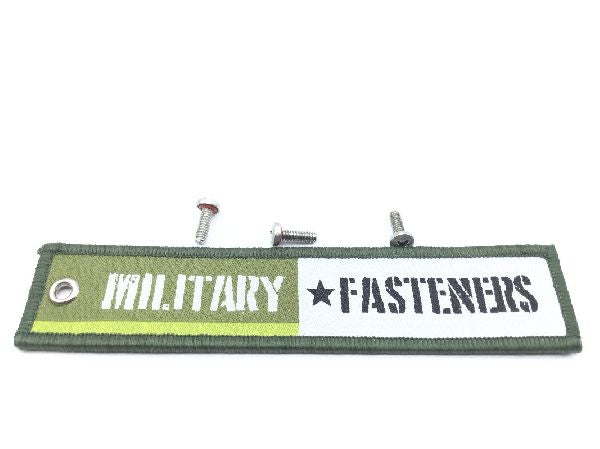

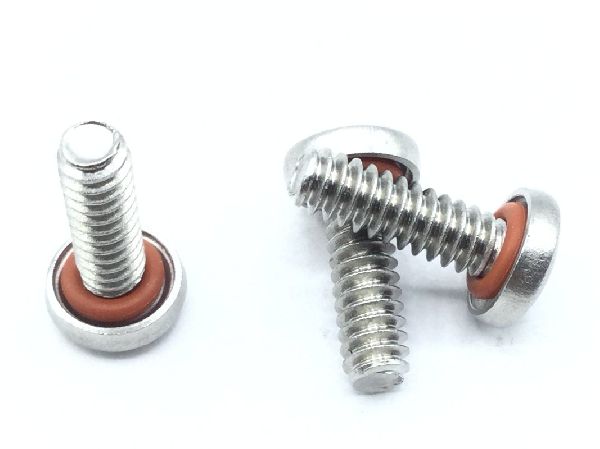

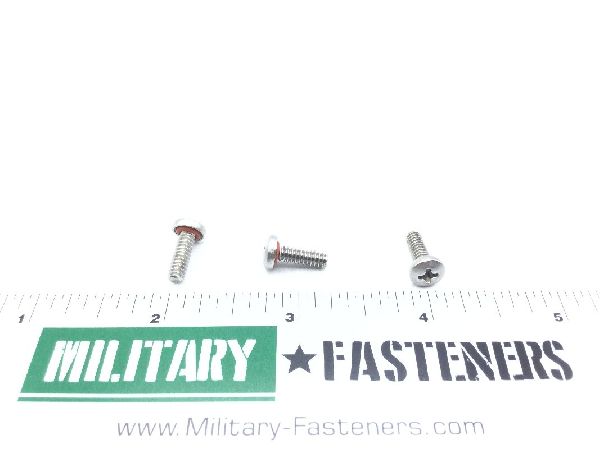

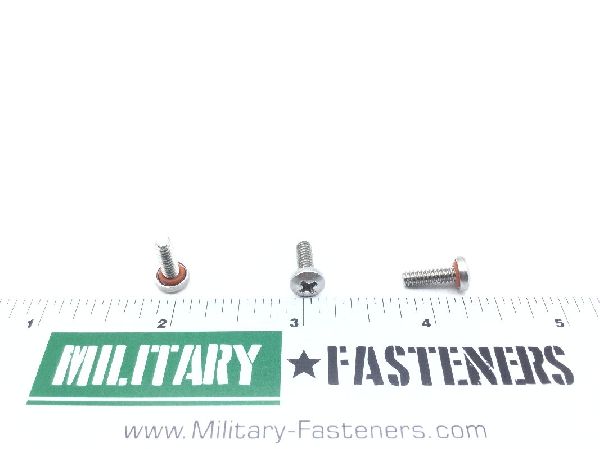

MS3212-14 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Watertight

Thread Class

Fastener Length: Between 0.406 inches and 0.438 inches
Features: O ring
Features Provided: O ring
Head Height: Between 0.087 inches and 0.097 inches
Internal Drive Style: Cross recess type 1
Screw Material: Steel comp 304 or steel comp 305
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.374 inches and 0.438 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.256 inches and 0.294 inches
