MS3212-2 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.66

Units per Pack 25

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Head Style

Watertight

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2a

Fastener Length: Between 0.281 inches and 0.312 inches
Head Height: Between 0.070 inches and 0.080 inches
Internal Drive Style: Cross recess type 1

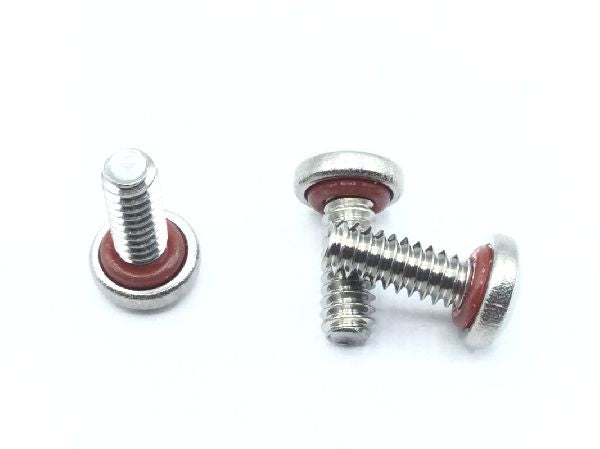

Special Features: Furnished with one silicone rubber o ring
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.231 inches and 0.312 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.205 inches and 0.238 inches
