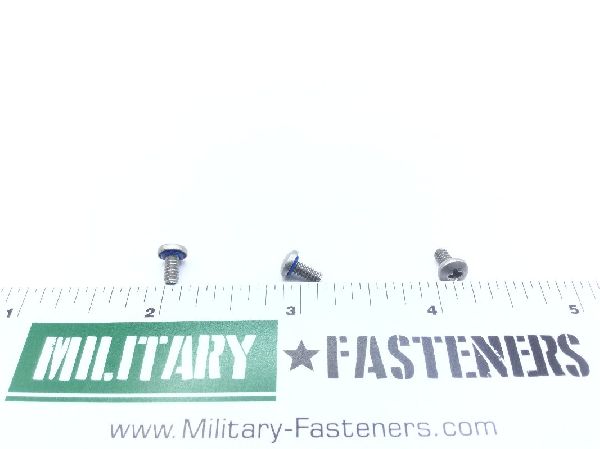

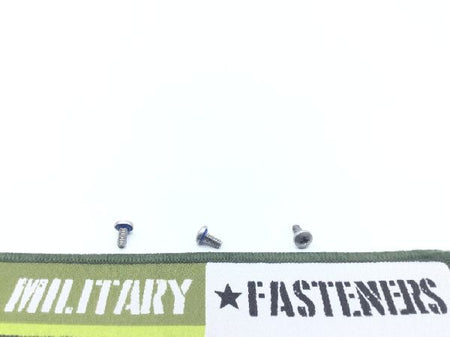

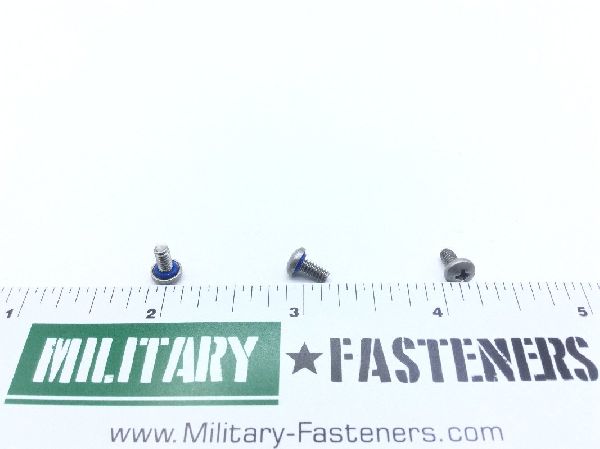

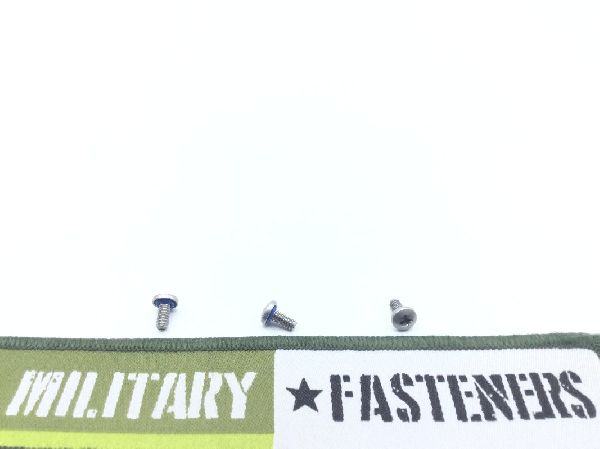

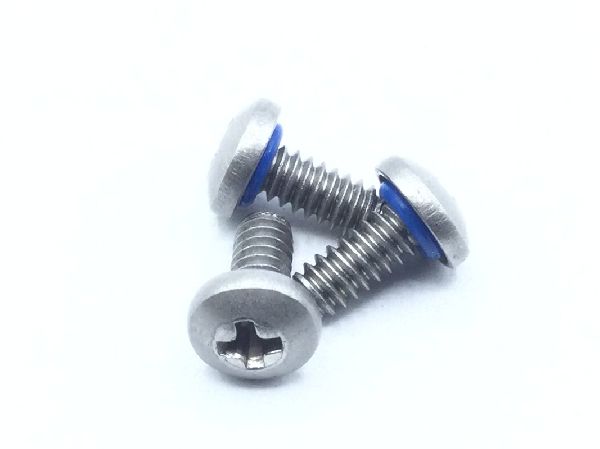

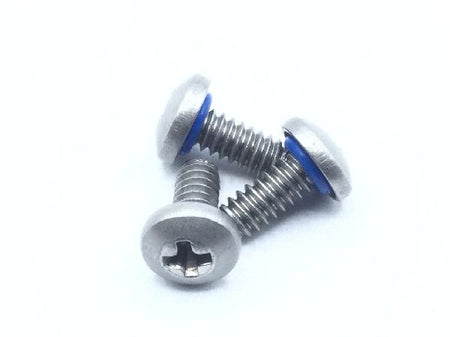

MS3213-1 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.52

Units per Pack 25

Price per Pack $38.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $38.00

Add item to quote

Head Style

Watertight

Thread Class

Fastener Length: Between 0.219 inches and 0.250 inches
Head Height: Between 0.070 inches and 0.080 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 75000 pounds per square inch
Screw Material: Steel comp 304 or steel comp 305
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Special Features: Furnished with one fluorosilicone rubber o ring permil-r-25988
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.169 inches and 0.250 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.205 inches and 0.238 inches
