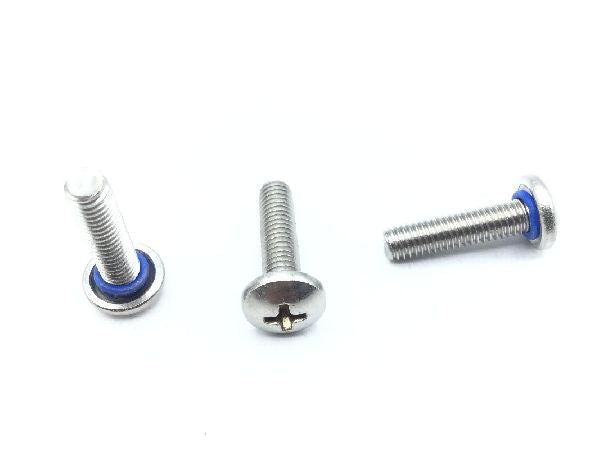

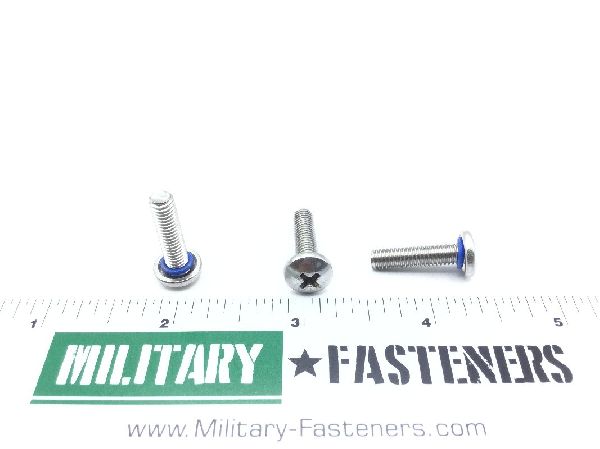

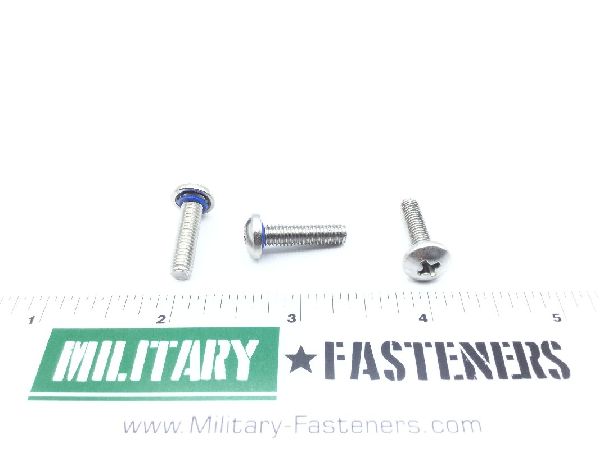

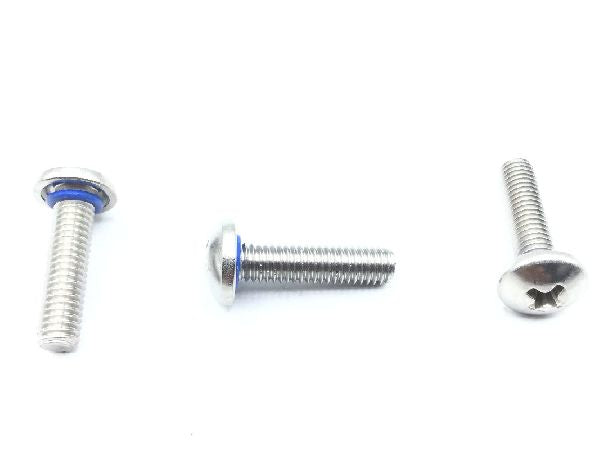

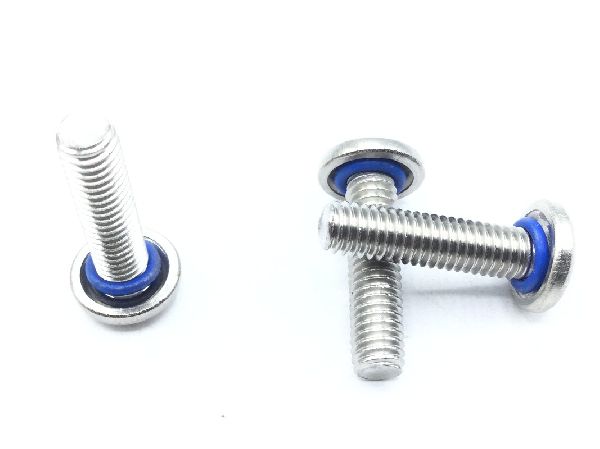

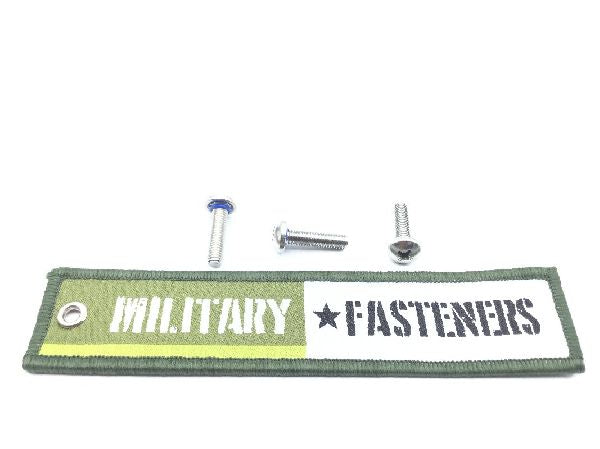

MS3213-36 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Watertight

Thread Class

Fastener Length: Between 0.719 inches and 0.750 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Screw Material: Steel comp 304 or steel comp 305
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Special Features: Furnished with one fluorosilicone rubber o ring per mil-r-25988
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.657 inches and 0.750 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.357 inches and 0.403 inches
