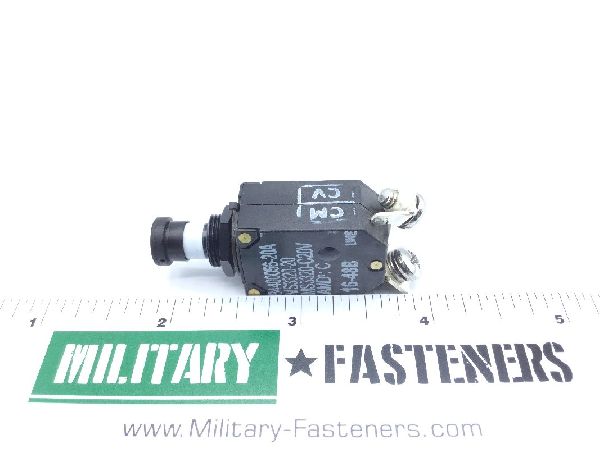

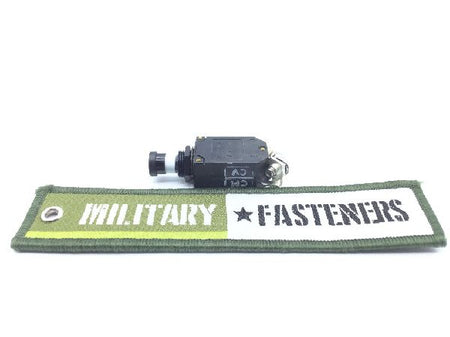

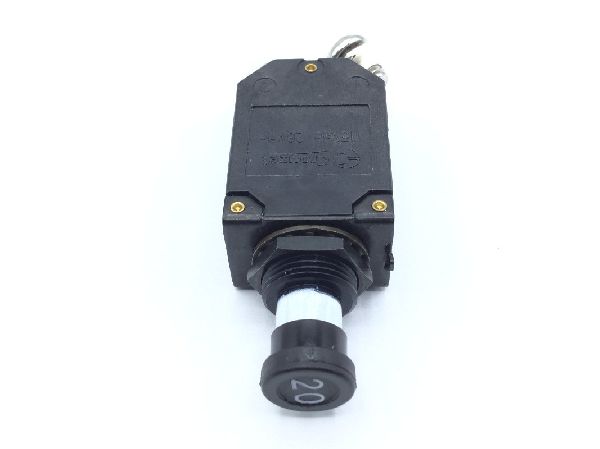

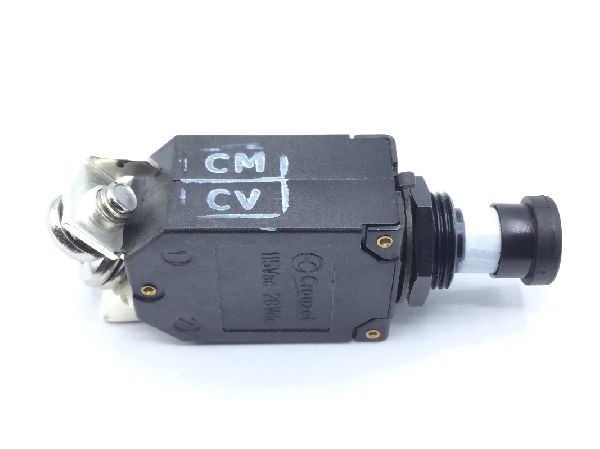

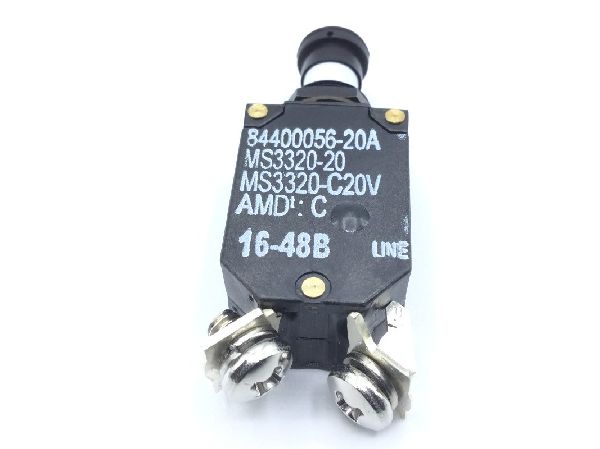

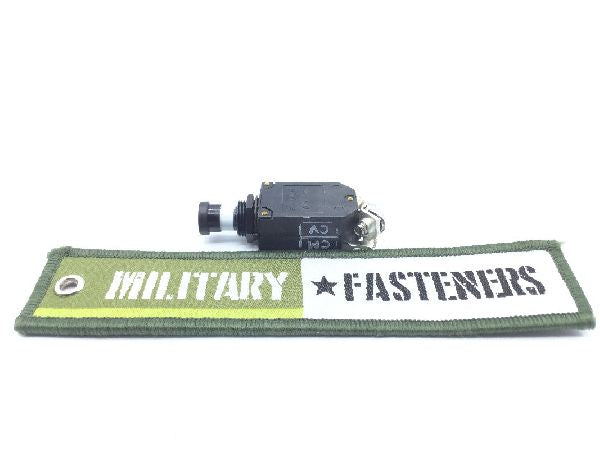

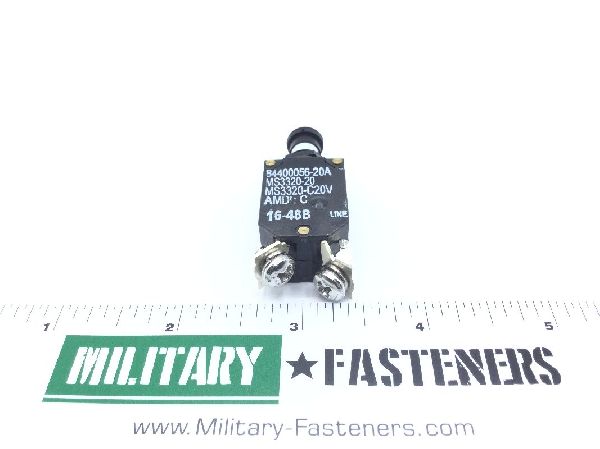

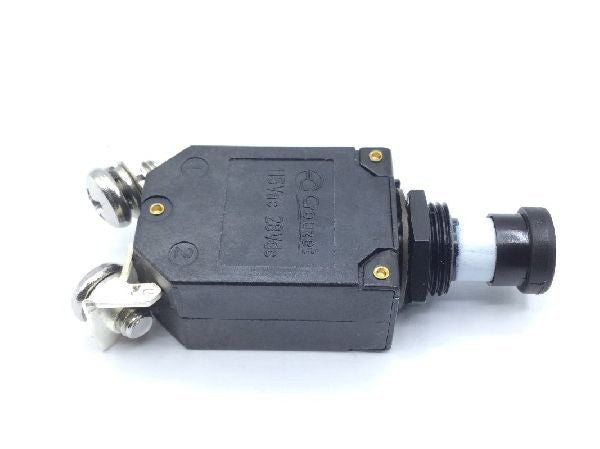

MS3320-20 Circuit Breaker
- Product Series
- MS
- ECCN
- EAR99
- Schedule
- 8536.20.0040
Price per Unit
$40.12
Units per Pack
1
Price per Pack
$40.12
Unit of Measure:
EA
Couldn't load pickup availability
- Actuator Function
- Trip-reset
- Actuator Position Designation
- At pole one
- Body Length
- 0.781 inches
- Body Style
- Single pole type
- Body Width
- 0.593 inches
- Bushing Length
- 0.250 inches
- Case Material
- Metal
- Center To Center Distance Between Terminals Parallel To Length
- 0.500 inches
- Circuit Protection Type
- Overcurrent single location
- Frequency In Hertz
- 400.0 single location
- Inclosure Protection Type For Which Designed
- Moisture resistant and explosion resistant
- Internal Trip Release Configuration
- Series trip single location
- Main Contact Tripping Mechanism Type
- Trip free
- Manual Actuator Type And Quantity
- 1 push-pull
- Maximum Continuous Load Current Rating Per Pole
- 20.0 amperes ac single location
- Maximum Interrupting Capacity Current Type And Rating Per Pole I
- 1500.0 ac single location
- Mounting Facility Type And Quantity
- 1 threaded bushing
- Mounting Surface To Terminal End Distance
- 1.343 inches
- Operating Voltage Type And Rating Per Pole In Volts
- 200.0 ac single location
- Pole Quantity
- 1
- Reset Method
- Manual
- Specification Data
- 96906-ms3320 government standard
- Storage Type
- General purpose warehouse
- Terminal Type And Quantity
- 2 screw
- Test Data Document
- Etc.).
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Un
- Trip Delay Time In Seconds Per Rated Continuous Current
- 5.000 at 200 pct single location and 15.000 at 200 pct single location
- Trip Release Ambient Tempurature Rating
- 25.0 degrees celsius single location
- Trip Release Characteristic
- Time delay single location
- Trip Release Method
- Thermal single location
- Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe
- 138.0 single location
- Unpackaged Unit Weight
- 1.200 ounc (coarse thread)es
