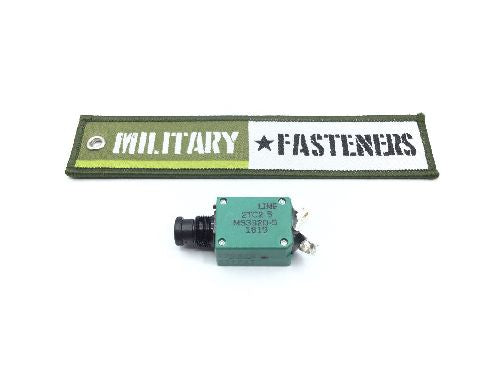

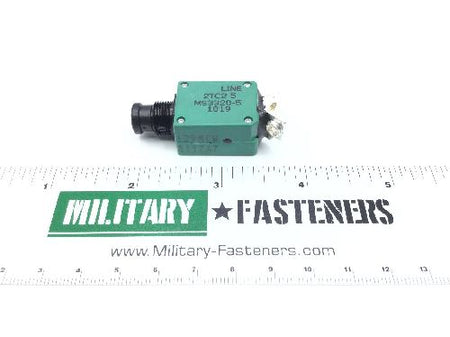

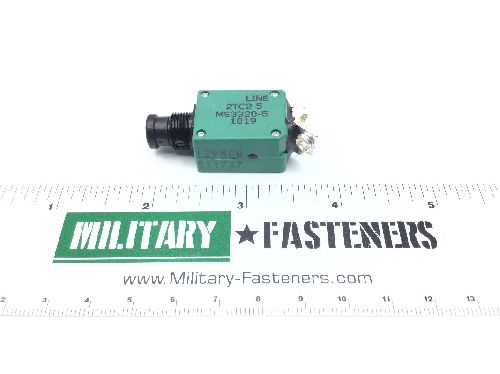

MS3320-5 Circuit Breaker

Actuator Function

Trip-reset

Actuator Position Designation

At pole one

Body Length

0.781 inches

Body Style

Single pole type

Body Width

0.593 inches

Bushing Length

0.25 inches

Case Material

Metal

Center To Center Distance Between Terminals Parallel To Length

0.50 inches

Circuit Protection Type

Overcurrent single location

End Application

Mrap - rg-33

Fragility Factor

Moderately rugged

Frequency In Hertz

400 single location

Inclosure Protection Type For Which Designed

Fungus resistant and vibration resistant and shock resistant and salt spray proof and dusttight and corrosion resistant and moisture resistant and explosion proof

Internal Trip Release Configuration

Series trip single location

Main Contact Tripping Mechanism Type

Trip free

Manual Actuator Type And Quantity

1 push-pull

Maximum Continuous Load Current Rating Per Pole

5 amperes ac and 5 amperes dc single location

Maximum Interrupting Capacity Current Type And Rating Per Pole I

5000 ac and 2500 dc single location

Mounting Facility Type And Quantity

1 threaded bushing w/panel seal

Mounting Surface To Terminal End Distance

1.343 inches

Operating Voltage Type And Rating Per Pole In Volts

120 ac and 28 dc single location

Pole Quantity

1

Reset Method

Manual

Specification Data

96906-ms3320 government standard

Storage Type

General purpose warehouse

Terminal Type And Quantity

2 tab with screw

Test Data Document

Etc.).

Thread Series Designator

Un

Trip Delay Time In Seconds Per Rated Continuous Current

1.50 at 200 pct and 40 at 200 pct single location

Trip Release Ambient Tempurature Rating

25 degrees celsius single location

Trip Release Characteristic

Time delay single location

Trip Release Method

Thermal single location

Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe

138 single location

Unpackaged Unit Weight

0.055 pounds
