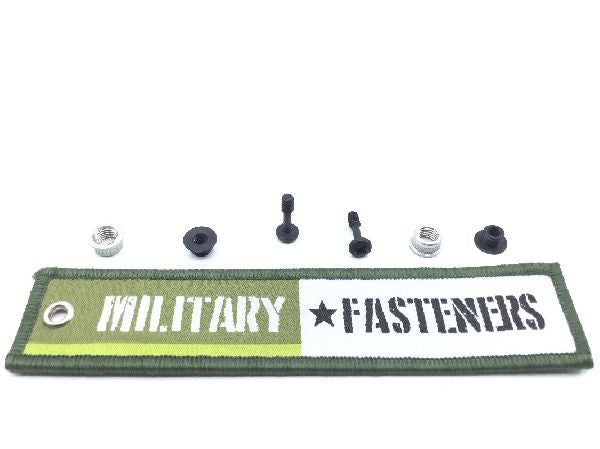

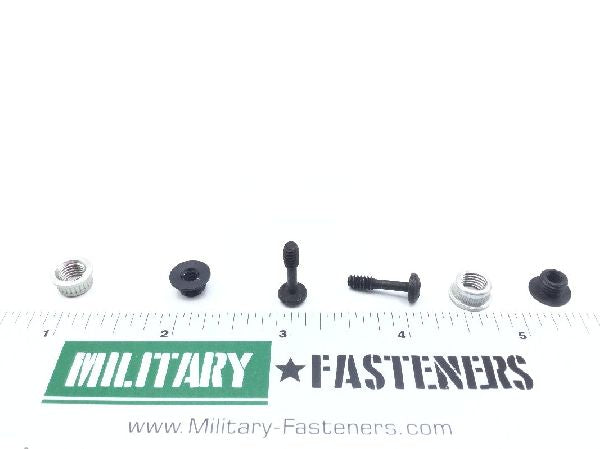

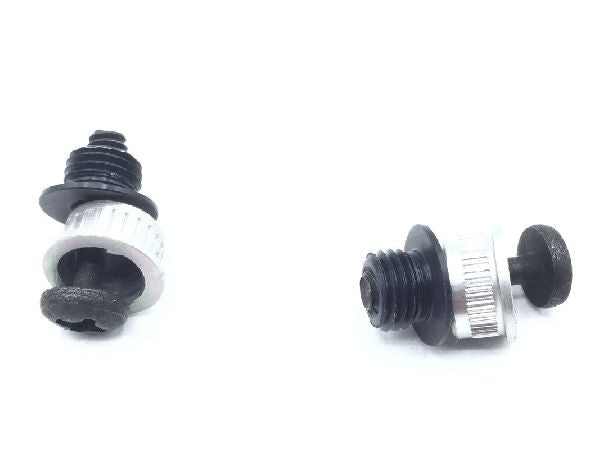

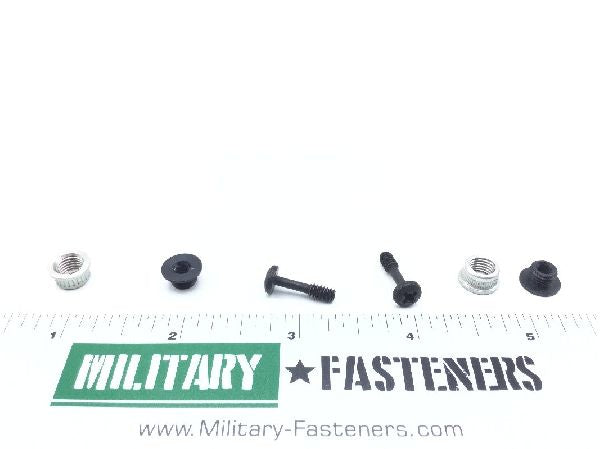

MS3498-8 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $17.94

Units per Pack 5

Price per Pack $89.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $89.70

Add item to quote

Head Style

Pan

Material

Steel comp 303 fastener

Surface Treatment

Mil-a-8625 military specification single treatment response stand-off

Thread Class

Fastener Length: 0.563 inches
Head Height: Between 0.090 inches and 0.110 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams 5640 assn standard single material response fastener
Special Features: Stud color black no. 36231 standoff consist of a flange and collar
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.225 inches and 0.235 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.260 inches and 0.270 inches
