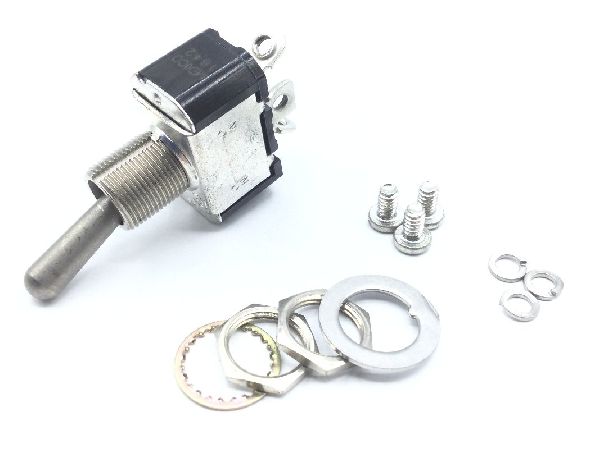

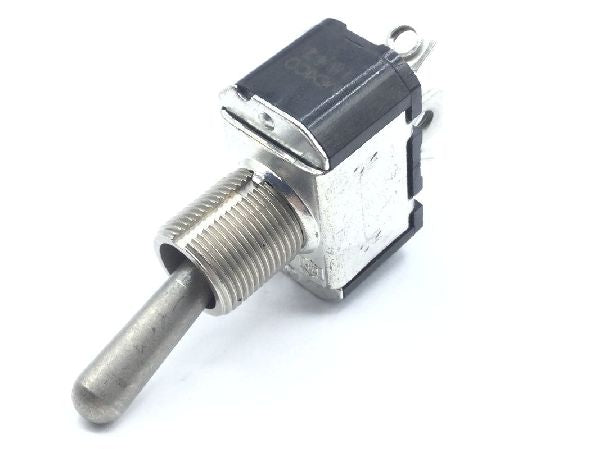

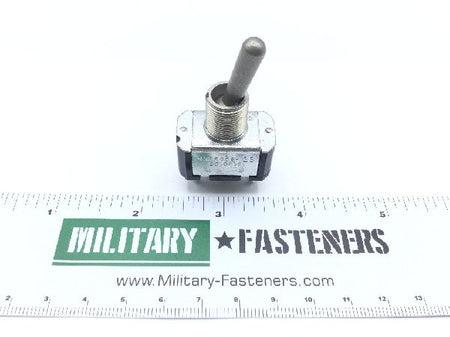

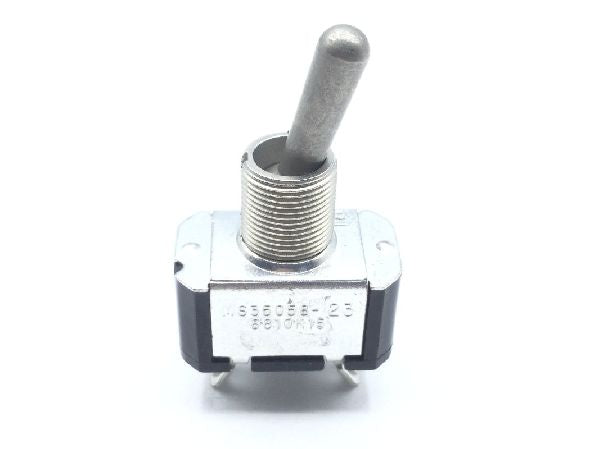

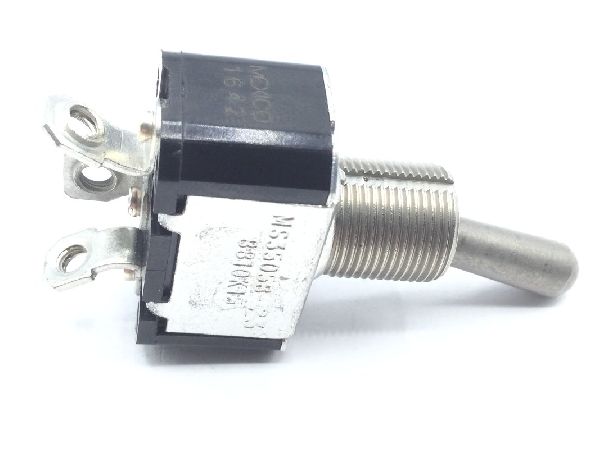

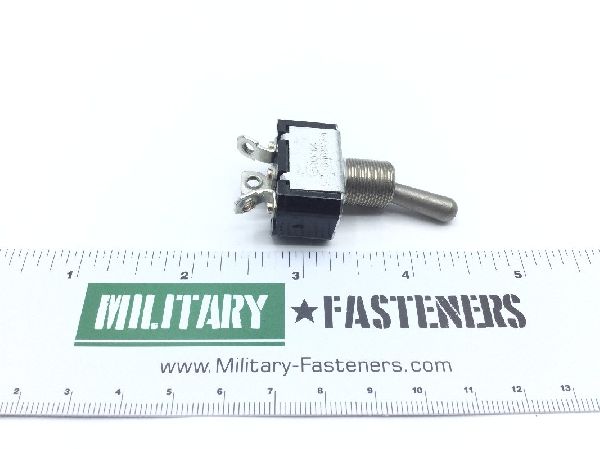

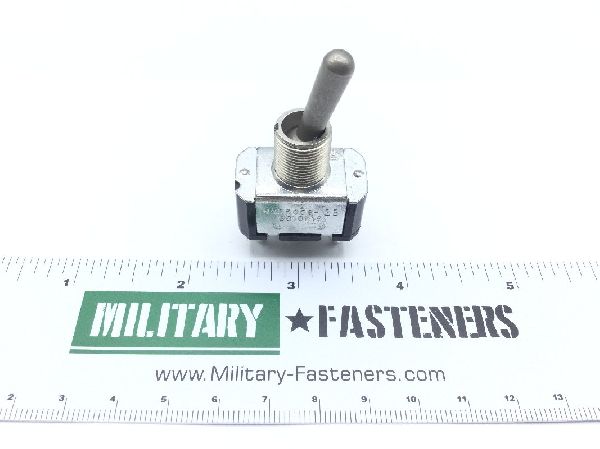

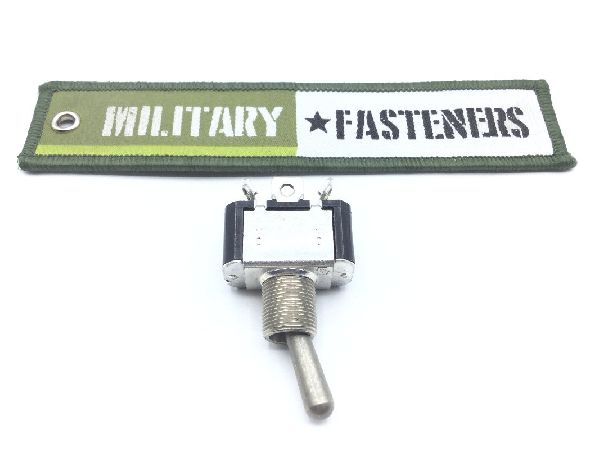

MS35058-23 Toggle Switch

Product Series: MS
ECCN: EAR99
Schedule: 8535.30.0080

Price per Unit $63.68

Units per Pack 1

Price per Pack $63.68

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $63.68

Add item to quote

Overall Length

1.157 inches

Thread Class

Thread Quantity Per Inch (tpi)

Thread Size

0.468 inches

Actuator Diameter: 0.24 inches
Actuator Height: 0.69 inches
Actuator Position-action Relationship: Up position maintained and down position maintained
Actuator Style: Round
Body Length: 1.157 inches
Body Style: Bushing mount
Body Width: 0.641 inches
Bushing Length: 0.47 inches
Contact Load Current Rating At Maximum Rated Voltage: 25 amperes resistive dc and 15 amperes inductive dc and 7.000 amperes lamp dc and 10.000 amperes resistive ac and 10.000 amperes inductive ac and 3.000 amperes lamp ac
Features: Actuator seal
Features Provided: Actuator seal
Hazardous Locations/environmental Protection: Driptight
Inclosure Type: Fully inclosed
Maximum Voltage Rating In Volts: 115 ac and 28 dc
Mounting Method: Threaded bushing
Mounting Surface To Terminal End Distance: 1.078 inches
Nonpile-up Contact Arrangement: Both positions maintained single switch unit double throw 1 pole
Overall Height: 2.238 inches
Overall Width: 0.641 inches
Specification Data: 96906-ms35058 government standard
Terminal Type And Quantity: 3 tab w/screw
Test Data Document: Etc.).
Thread Series Designator: Uns
