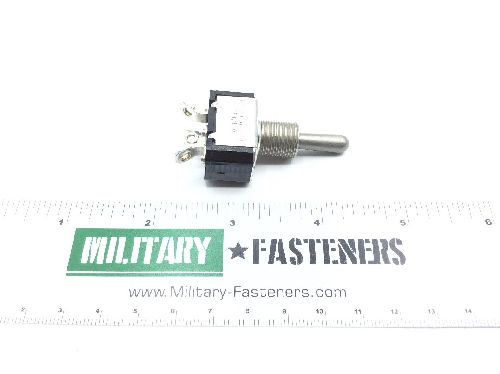

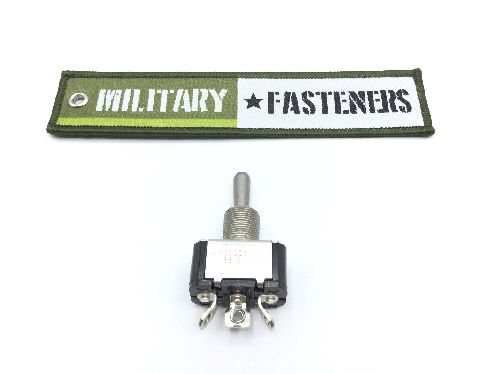

MS35058-27 Toggle Switch

Product Series: MS
ECCN: EAR99
Schedule: 8535.30.0080

Price per Unit $65.26

Units per Pack 1

Price per Pack $65.26

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $65.26

Add item to quote

Thread Size

0.469 inches

Actuator Diameter: 0.240 inches
Actuator Height: Between 0.660 inches and 0.720 inches
Actuator Position-action Relationship: Up position momentary and down position momentary and center position maintained
Actuator Style: Round
Body Length: 1.457 inches
Body Style: Bushing mount
Body Width: 0.641 inches
Bushing Length: Between 0.450 inches and 0.490 inches
Contact Load Current Rating At Maximum Rated Voltage: 500.000 milliamperes resistive dc and 6.000 amperes resistive ac
Criticality Code Justification: Feat
Features: Actuator seal
Features Provided: Actuator seal
Hazardous Locations/environmental Protection: Dustproof
Inclosure Type: Fully inclosed
Maximum Voltage Rating In Volts: 220.0 ac and 250.0 dc
Nonpile-up Contact Arrangement: two positions momentary single switch unit double throw 1 pole
Special Features: Item must comply with rqmt of desc production standard no. l00420
Terminal Type And Quantity: 3 tab w/screw
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Uns
