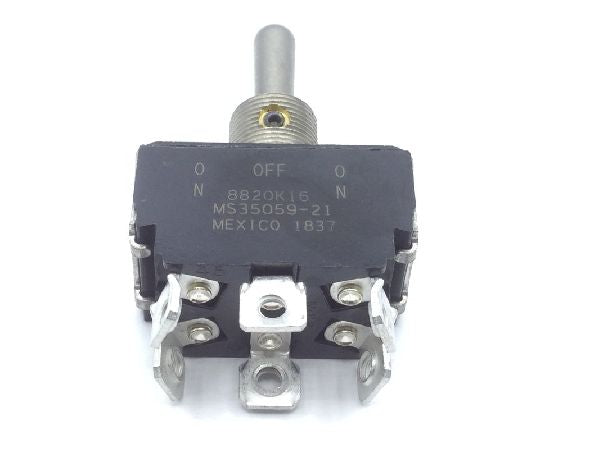

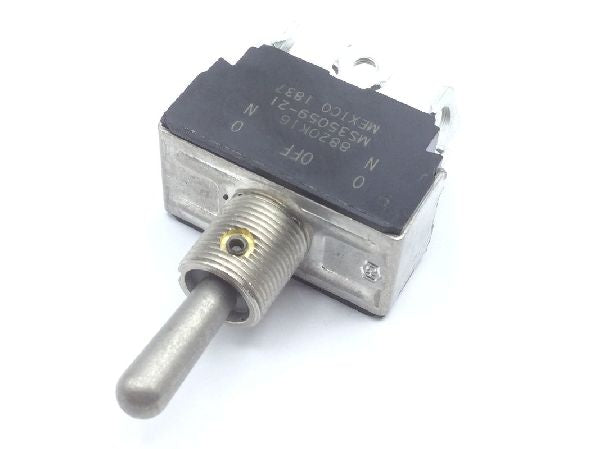

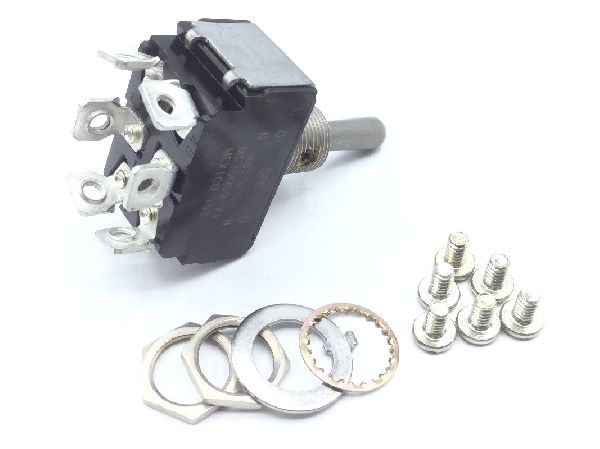

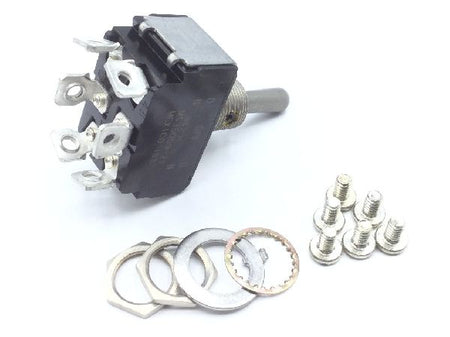

MS35059-21 Toggle Switch

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Actuator Diameter: Between 0.237 inches and 0.243 inches
Actuator Height: Between 1.110 inches and 1.204 inches
Actuator Position-action Relationship: Up position maintained and down position maintained and center position maintained
Actuator Style: Round
Body Height: Between 1.000 inches and 1.250 inches
Body Length: 1.346 inches
Body Style: Bushing mount
Body Width: 1.025 inches
Bushing Length: Between 0.453 inches and 0.485 inches
Contact Load Current Rating At Maximum Rated Voltage: 500.000 milliamperes resistive dc and 9.000 amperes resistive ac
End Application: Strategic weapon system
Features: Actuator seal
Features Provided: Actuator seal
Hazardous Locations/environmental Protection: Submersible
Inclosure Type: Fully inclosed
Maximum Voltage Rating In Volts: 220.0 ac and 250.0 dc
Mounting Method: Threaded bushing
Nonpile-up Contact Arrangement: Both positions maintained single switch unit double throw 2 pole
Terminal Type And Quantity: 6 screw
Test Data Document: Etc.).
