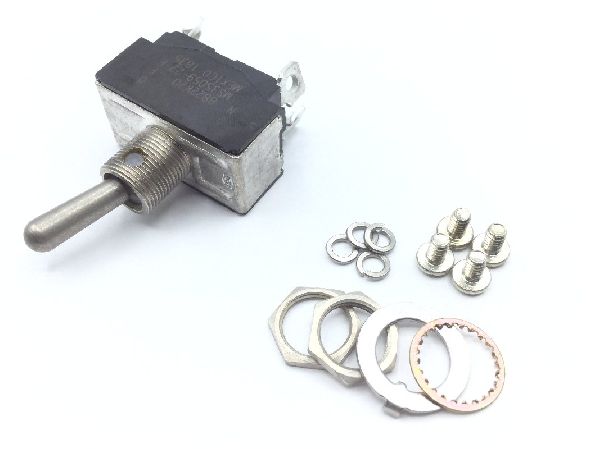

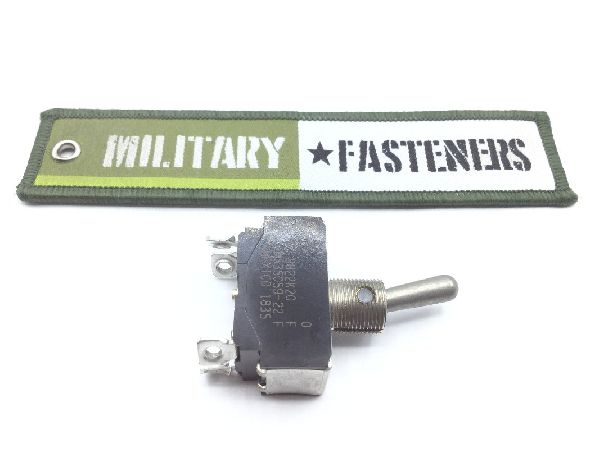

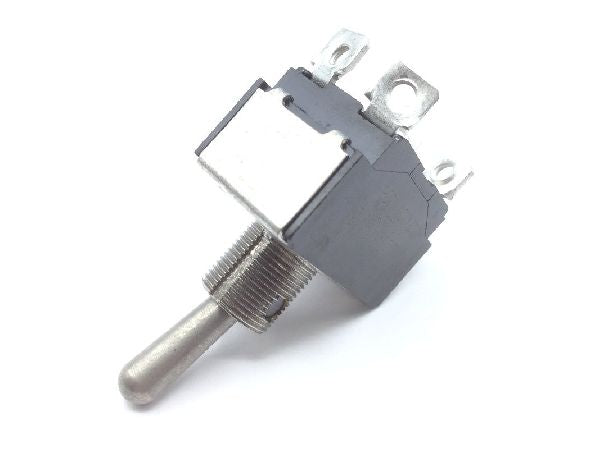

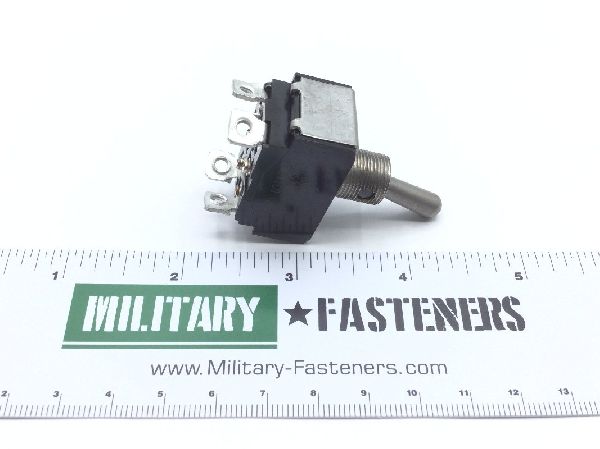

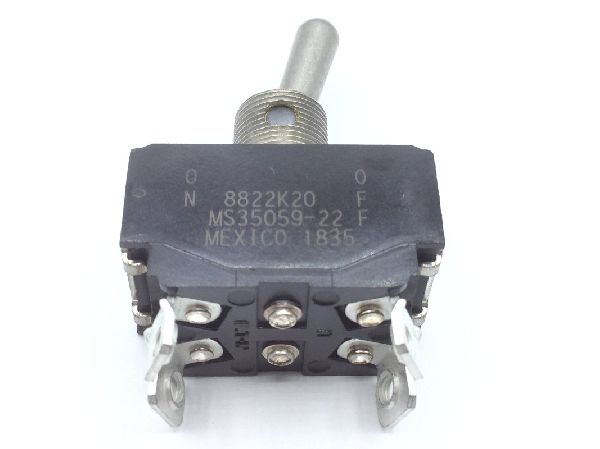

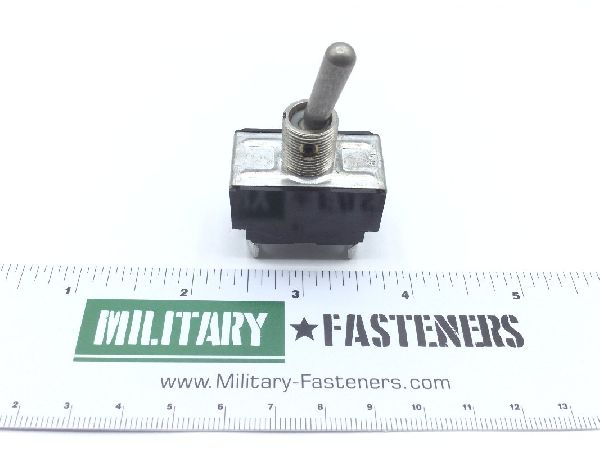

MS35059-22 Toggle Switch

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $52.50

Units per Pack 2

Price per Pack $105.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $105.00

Add item to quote

Thread Size

0.469 inches

Actuator Diameter: 0.240 inches
Actuator Height: Between 0.660 inches and 0.720 inches
Actuator Position-action Relationship: Up position maintained and down position maintained
Actuator Style: Round
Body Length: 1.346 inches
Body Style: Bushing mount
Body Width: 1.025 inches
Bushing Length: Between 0.450 inches and 0.490 inches
Contact Load Current Rating At Maximum Rated Voltage: 500.000 milliamperes resistive dc and 9.000 amperes resistive ac
Criticality Code Justification: Feat
Features: Actuator seal
Features Provided: Actuator seal
Hazardous Locations/environmental Protection: Weatherproof
Inclosure Type: Fully inclosed
Maximum Voltage Rating In Volts: 220.0 ac and 250.0 dc
Mounting Method: Threaded bushing
Nonpile-up Contact Arrangement: Both positions maintained single switch unit single throw 2 pole
Special Features: Item must comply with rqmt of desc production standard no. l00165
Terminal Type And Quantity: 4 tab w/screw
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Uns
