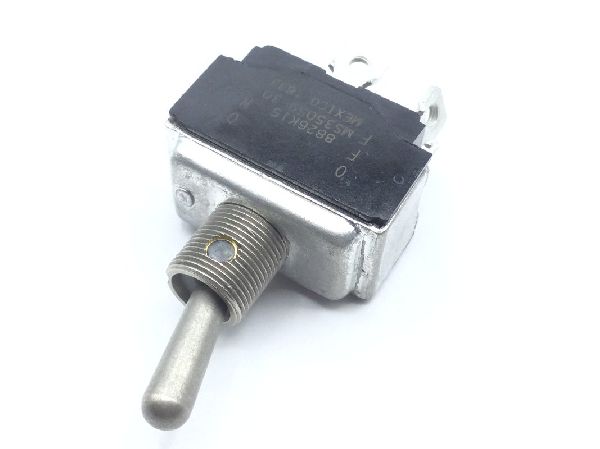

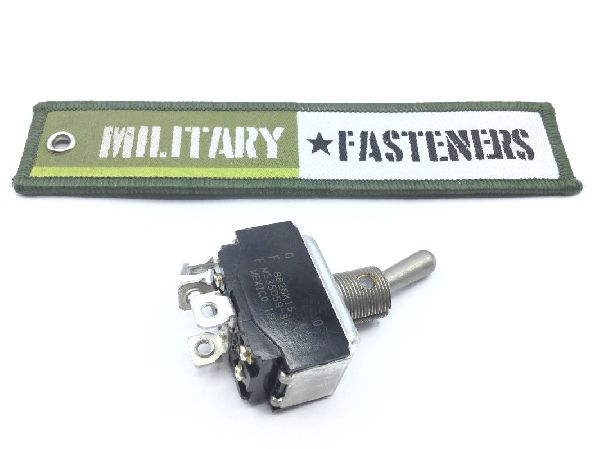

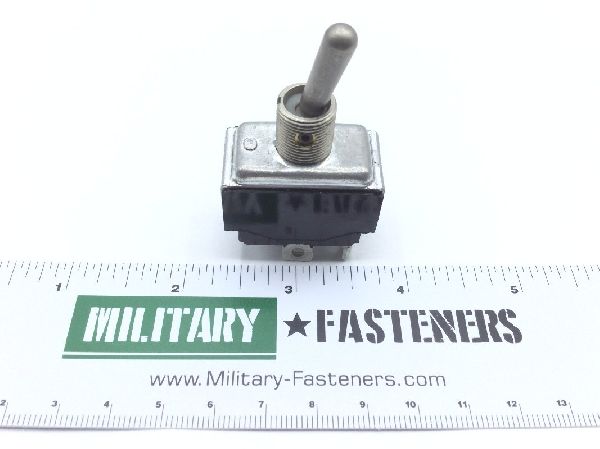

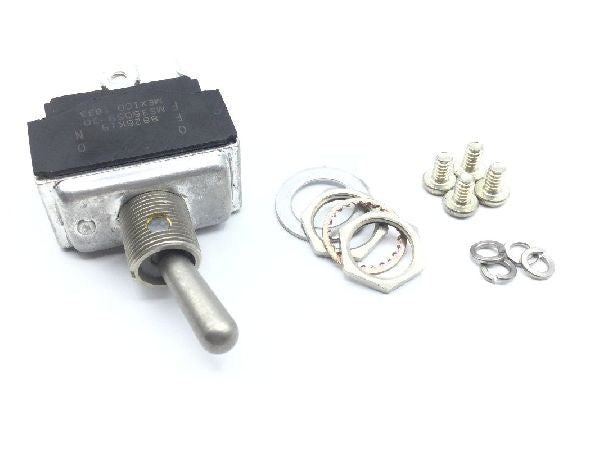

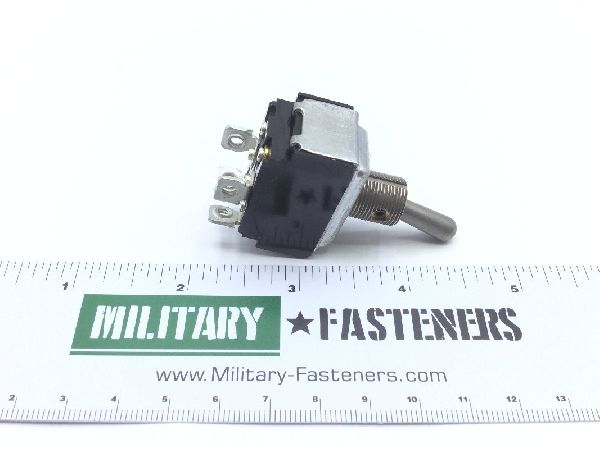

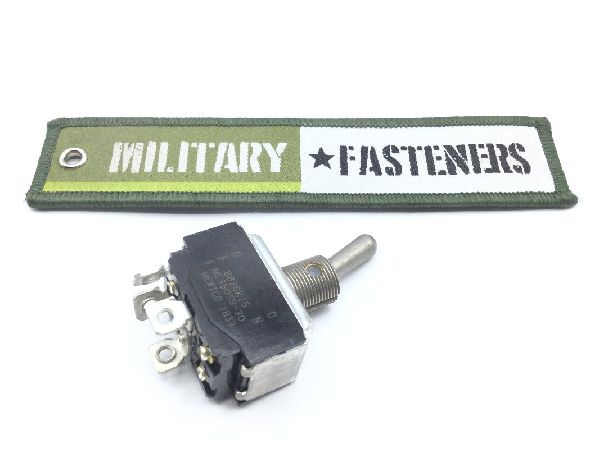

MS35059-30 Toggle Switch

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Thread Size

0.469 inches

Actuator Diameter: 0.240 inches
Actuator Height: Between 0.660 inches and 0.720 inches
Actuator Position-action Relationship: Up position maintained and down position momentary
Actuator Style: Round
Body Length: 1.346 inches
Body Style: Bushing mount
Body Width: 1.025 inches
Bushing Length: 0.470 inches
Contact Load Current Rating At Maximum Rated Voltage: 18.000 amperes resistive dc and 10.000 amperes inductive dc and 5.000 amperes lamp dc and 11.000 amperes resistive ac and 8.000 amperes inductive ac and 2.000 amperes lamp ac
Criticality Code Justification: Feat
Features: Actuator seal
Features Provided: Actuator seal
Hazardous Locations/environmental Protection: Dustproof
Inclosure Type: Fully inclosed
Maximum Voltage Rating In Volts: 115.0 ac and 28.0 dc
Mounting Method: Threaded bushing
Nonpile-up Contact Arrangement: momentary action single switch unit normally open single throw 2 pole
Special Features: Item must comply with requirements of desc production standard no. l00733

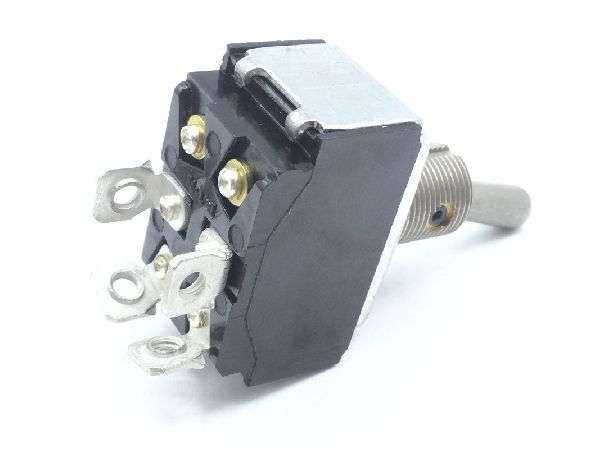

Terminal Type And Quantity: 4 tab w/screw
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Uns
