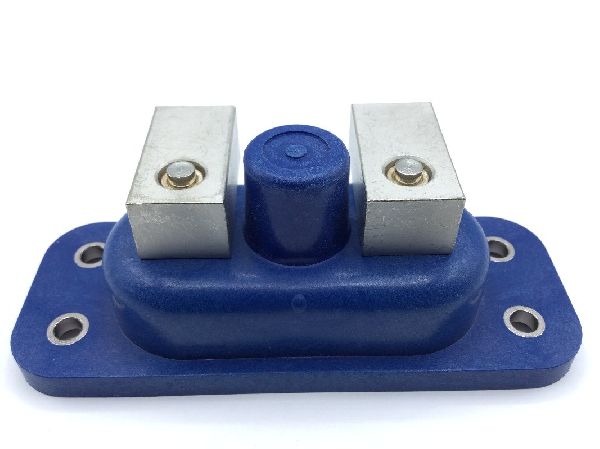

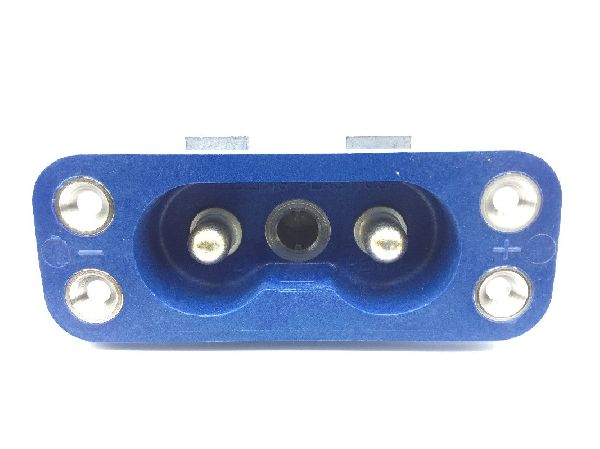

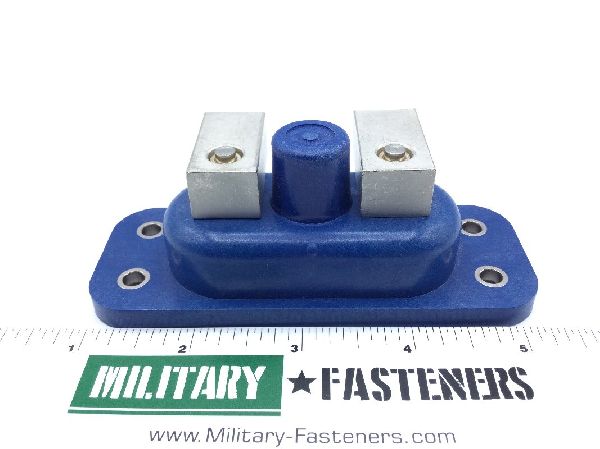

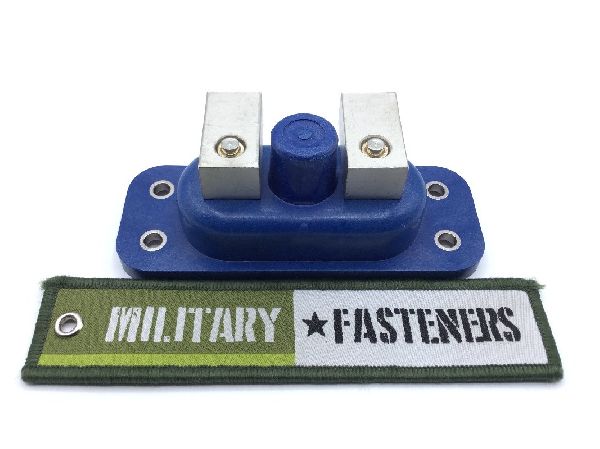

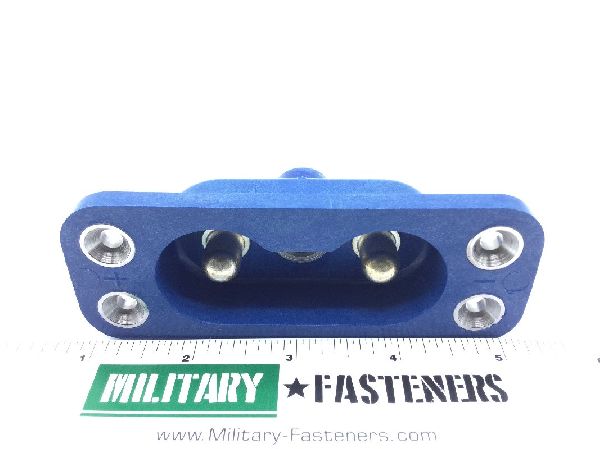

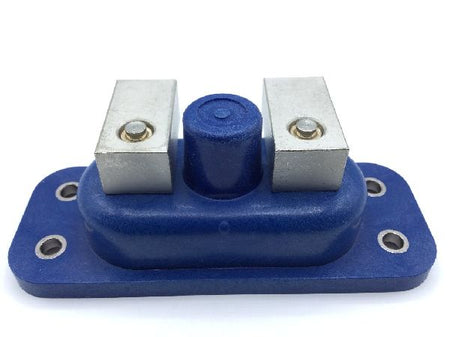

MS3509-28 Electrical Receptacle Connector
- Product Series
- MS
- ECCN
- EAR99
- Schedule
- 8536.69.5050
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Body Style
- Straight shape
- Center To Center Distance Between Mounting Facilities Parallel T
- 3.438 inches
- Contact Removability
- Nonremovable single mating end single contact grouping
- Distance Between Centerlines Of Mounting Facilities Parallel To
- 0.782 inches
- Environmental Protection
- Corrosion resistant and thermal shock resistant and moisture resistant
- Included Contact Quantity
- 2 single mating end single contact grouping
- Included Contact Type
- Round socket single mating end single contact grouping
- Mating End Quantity
- 1
- Overall Height
- 1.607 inches
- Overall Width
- 1.624 inches
- Polarization Method
- Mating end
- Specification Data
- 96906-ms3509 government standard
- Terminal Location
- Back single mating end single contact grouping
- Terminal Type
- Solder well single mating end single contact grouping
- Test Data Document
- Etc.).
