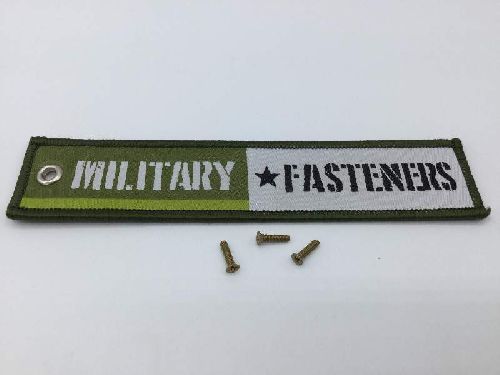

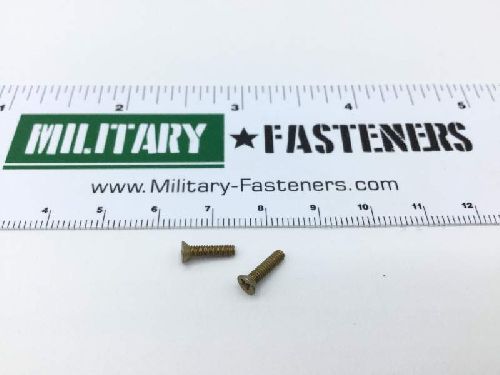

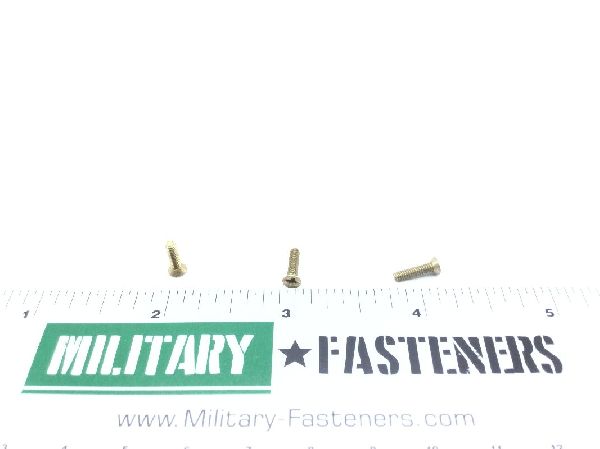

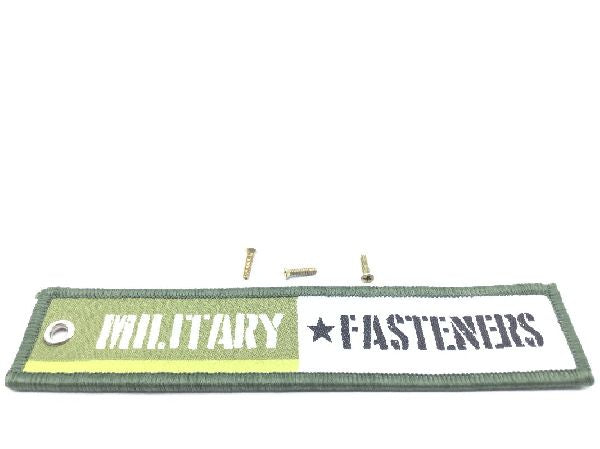

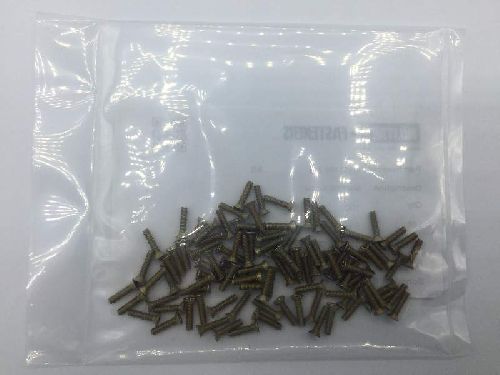

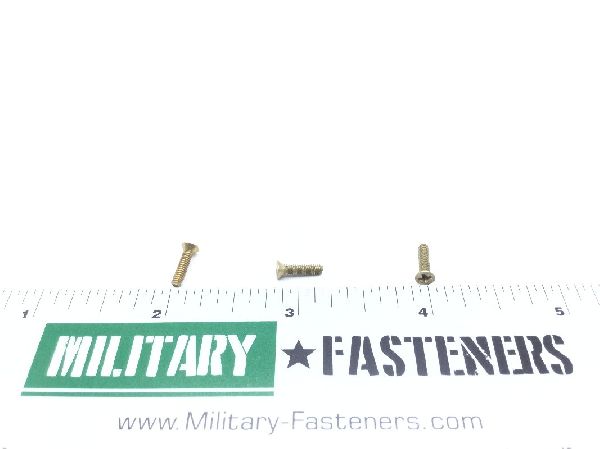

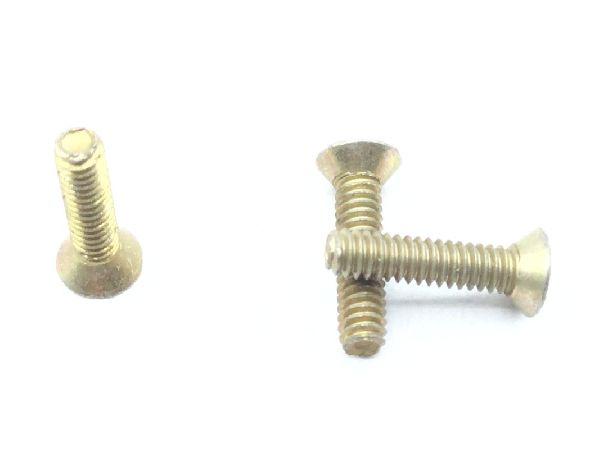

MS35190-213 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 80.0 degrees and 82.0 degrees
Fastener Length: 0.375 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 60000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 2c style
Screw Material: Steel
Screw Material Specification: 66 federal standard single material response or astma108 assn standard single material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Type 2 class 3 military specification single treatment response type2 class 3 federal specification single treatment response or mil-c-81562 qq-p-416
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.339 inches and 0.375 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.147 inches and 0.172 inches
