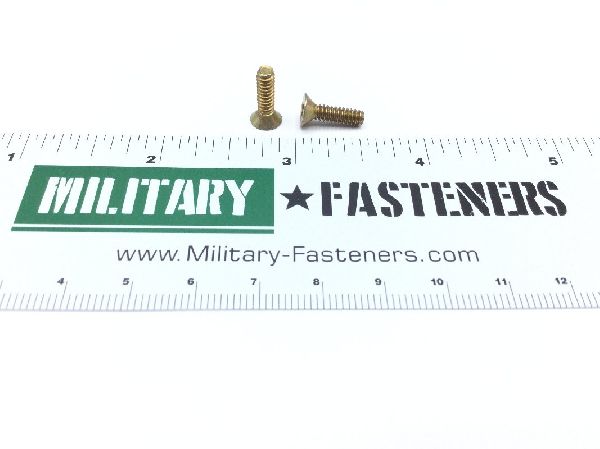

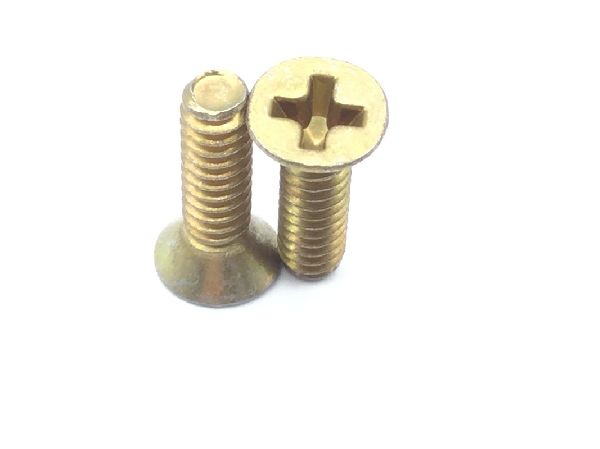

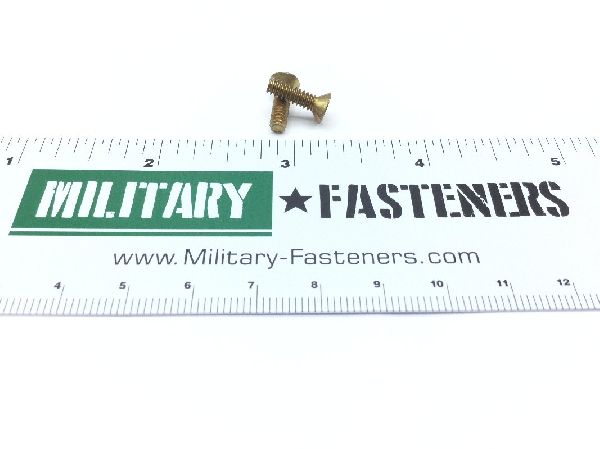

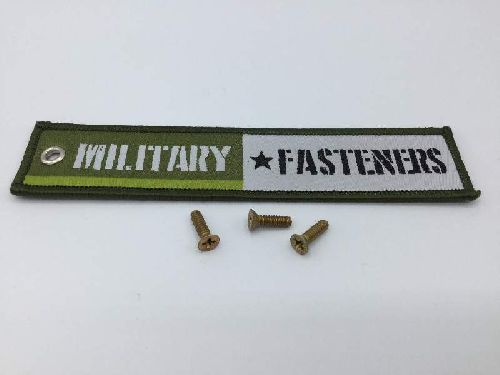

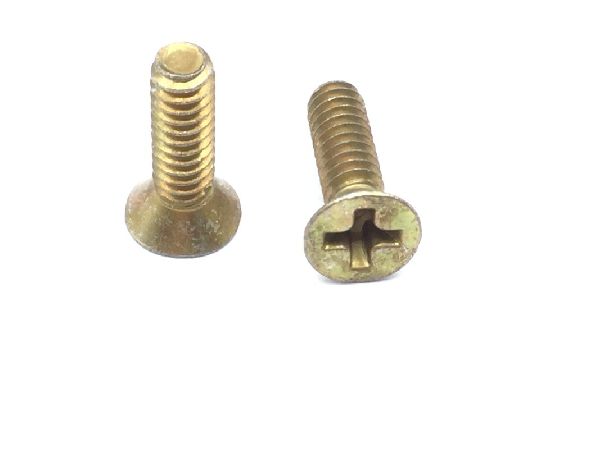

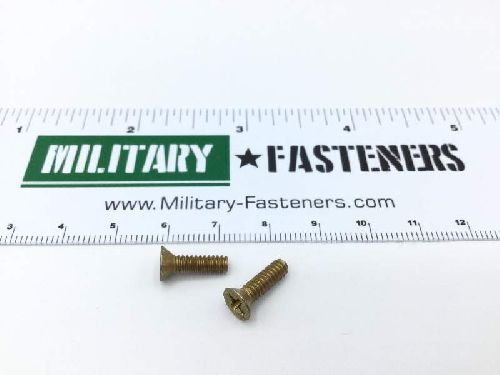

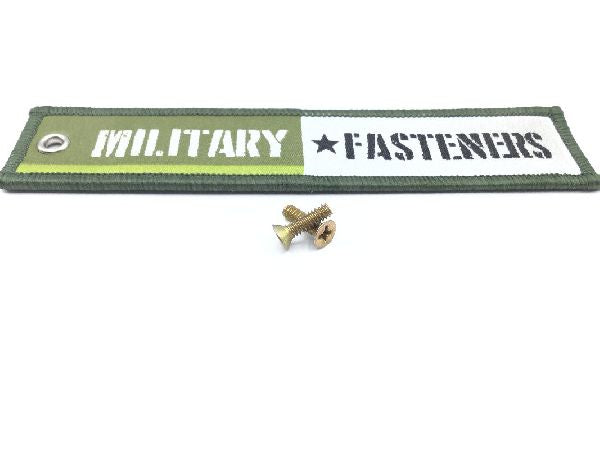

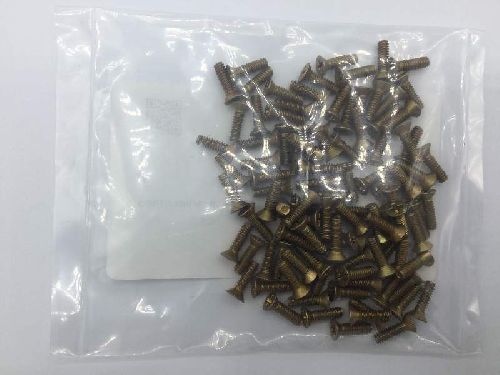

MS35190-238 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.28

Units per Pack 100

Price per Pack $28.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $28.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 80.0 degrees and 82.0 degrees
Fastener Length: 0.500 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 60000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 2c style
Screw Material: Steel
Screw Material Specification: 66 federal standard single material response or astma108 assn standard single material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Type 2 class 3 military specification single treatment response type 2 class 3 federal specification single treatment response or mil-c-81562 qq-p-416
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: 0.438 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.244 inches and 0.279 inches
