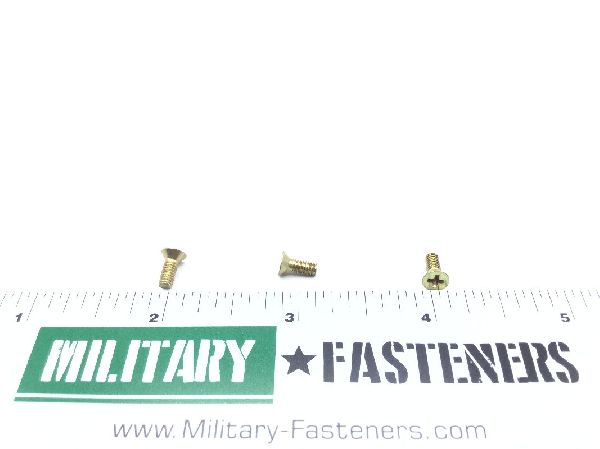

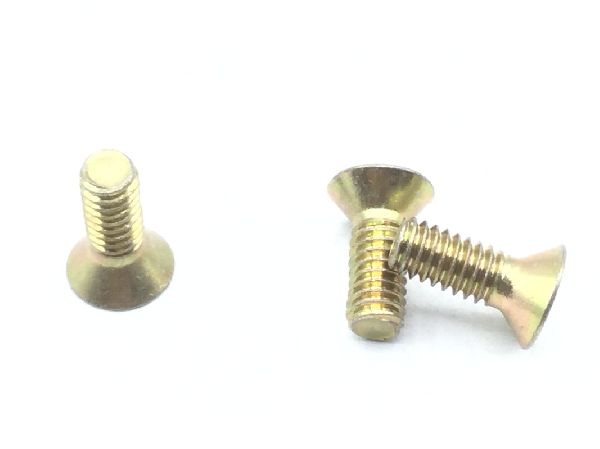

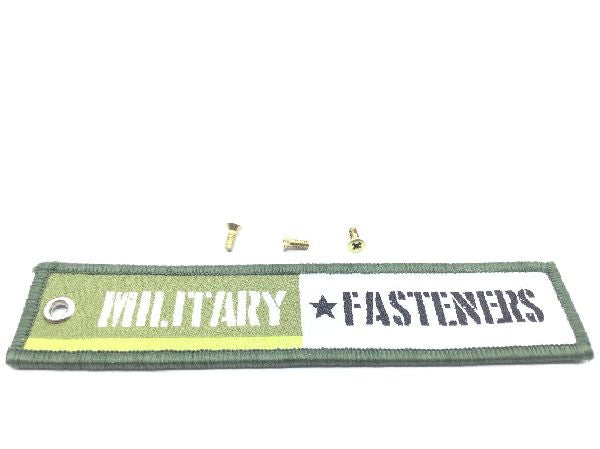

MS35191-225 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.33

Units per Pack 100

Price per Pack $33.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $33.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 80 degrees and 82 degrees
Fastener Length: 0.313 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 60000 pounds per square inch
Screw Material: Steel
Screw Material Specification: Qq-s-631 federal specification single material response or qq-s-634 federal specification single material response or qq-s-637 federal specification single material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Type 2 cl 3 federal specification all treatment responses qq-p-416
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: 0.204 inches
Thread Qty Per Inch (tpi): 48
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.207 inches and 0.225 inches
