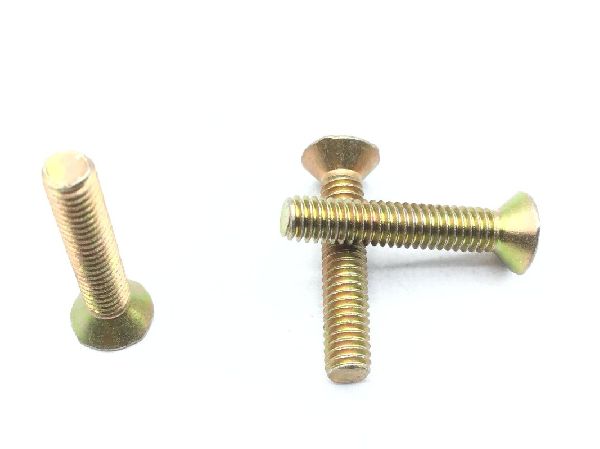

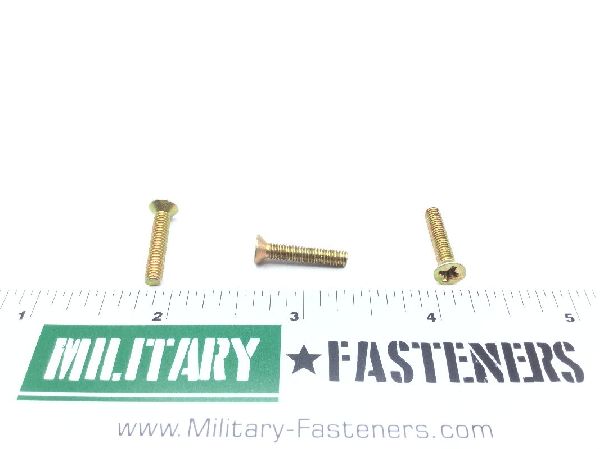

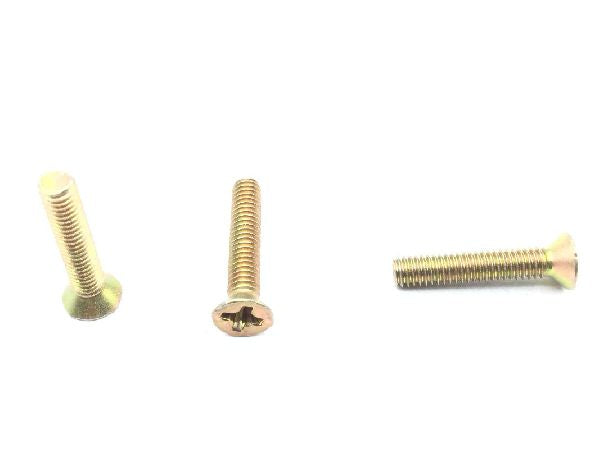

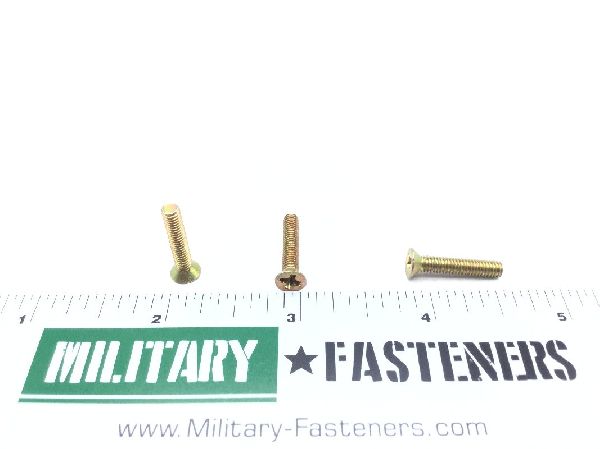

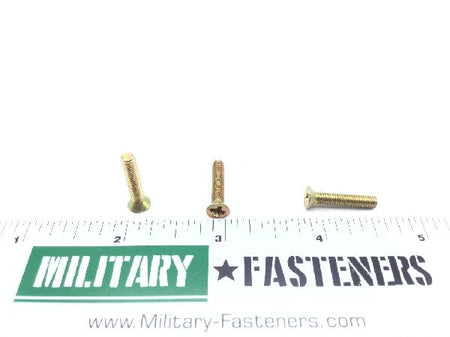

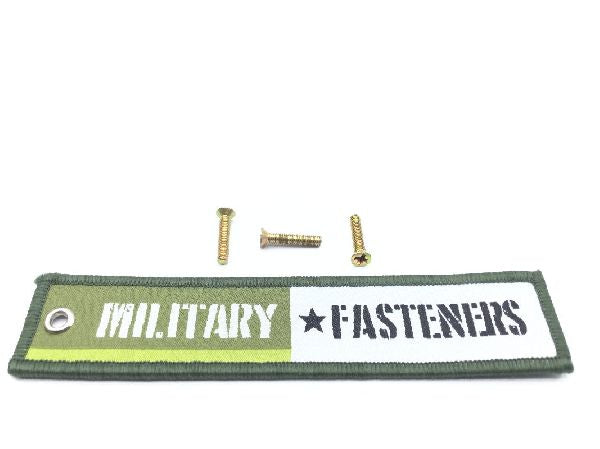

MS35191-241 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.52

Units per Pack 25

Price per Pack $38.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $38.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 80.0 degrees and 82.0 degrees
Departure From Cited Designator: As modified by material
Fastener Length: Between 0.719 inches and 0.750 inches
Internal Drive Style: Cross recess type 1
Nondefinitive Specification/std Data: 3 type and 2c style
Screw Material: Steel comp
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Class 3 federal specification all treatment responses type 2 qq-p-416
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.586 inches and 0.667 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.244 inches and 0.279 inches
