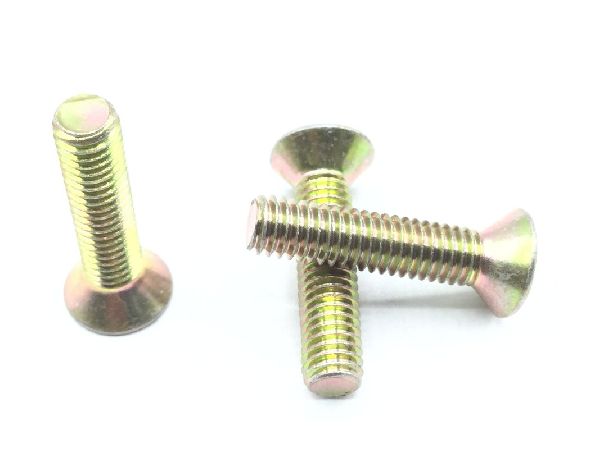

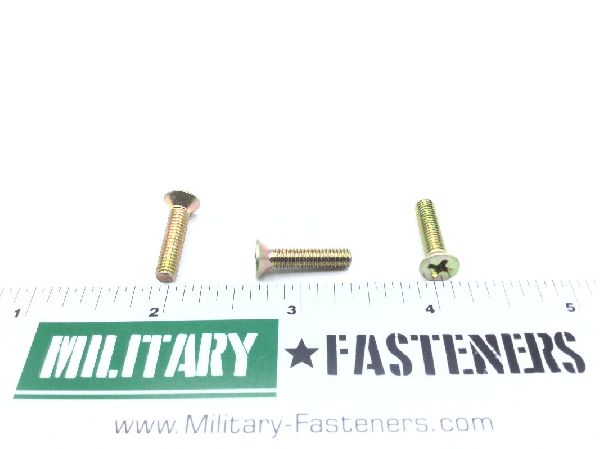

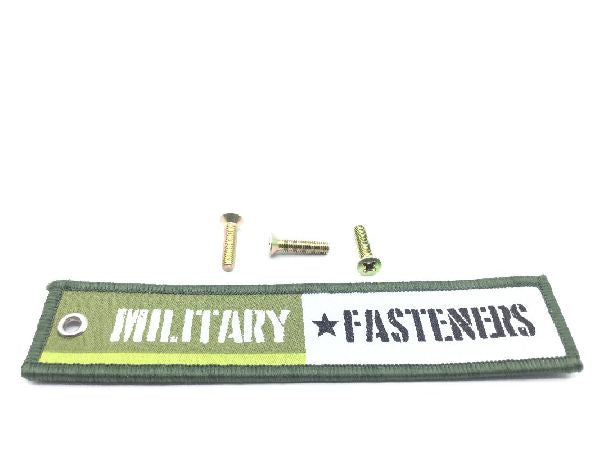

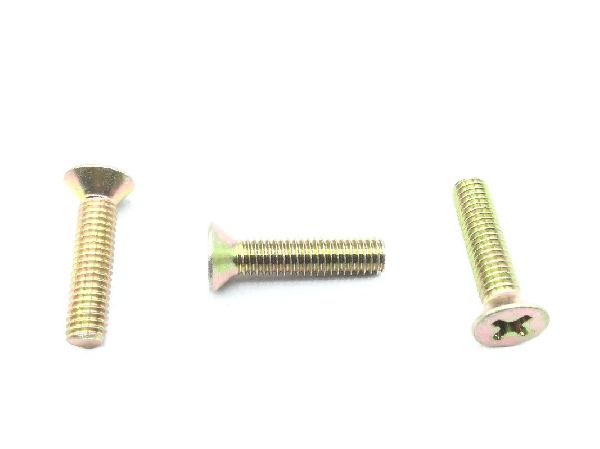

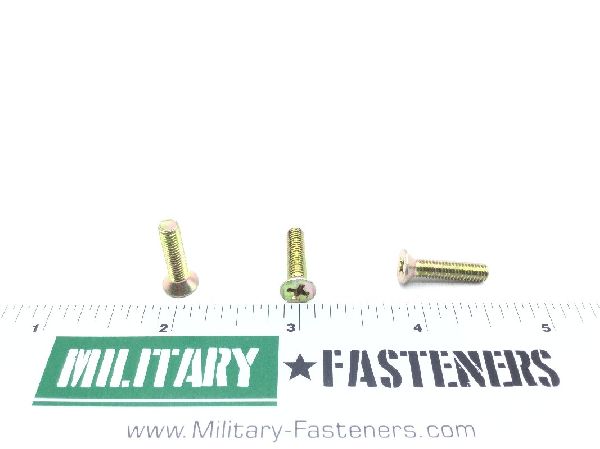

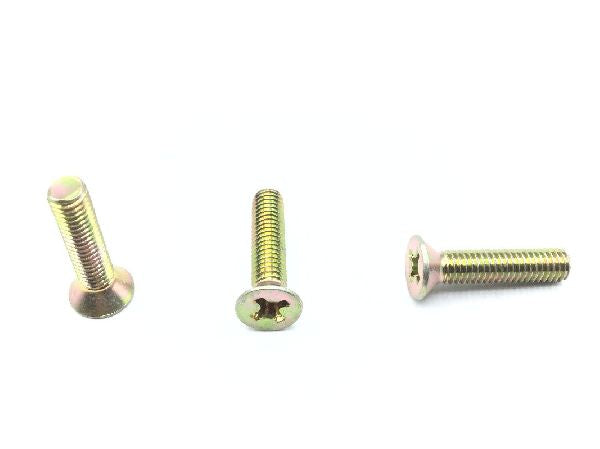

MS35191-256 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $3.15

Units per Pack 10

Price per Pack $31.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $31.50

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 80.0 degrees and 82.0 degrees
Fastener Length: 0.750 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 55000 pounds per square inch
Screw Material: Steel comp 1010 or steel comp 1011 or steel comp 1013
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Qq-p-416 type 2 cl 3 federal specification all treatment responses
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.694 inches and 0.750 inches
Thread Qty Per Inch (tpi): 36
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.292 inches and 0.332 inches
