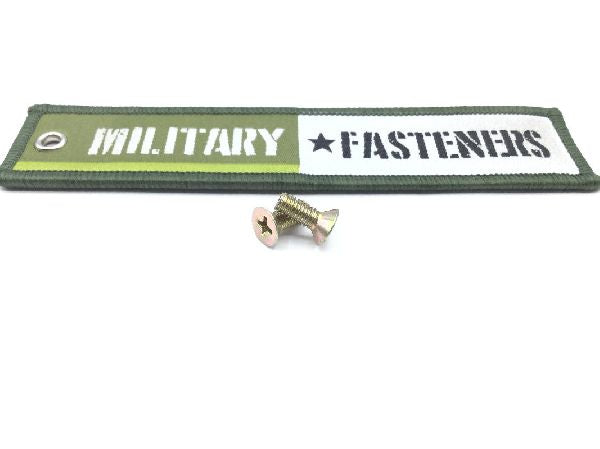

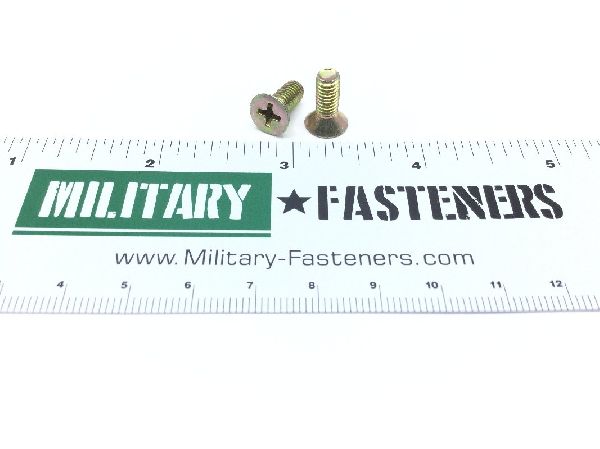

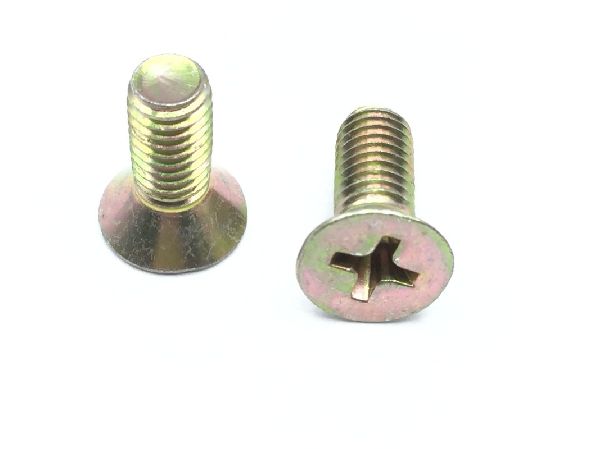

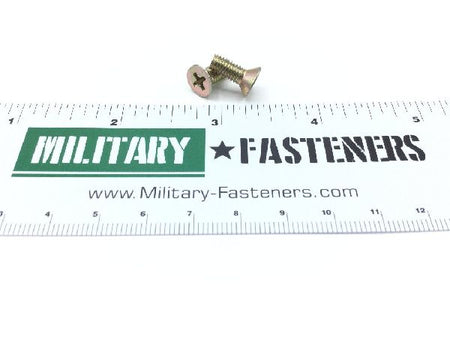

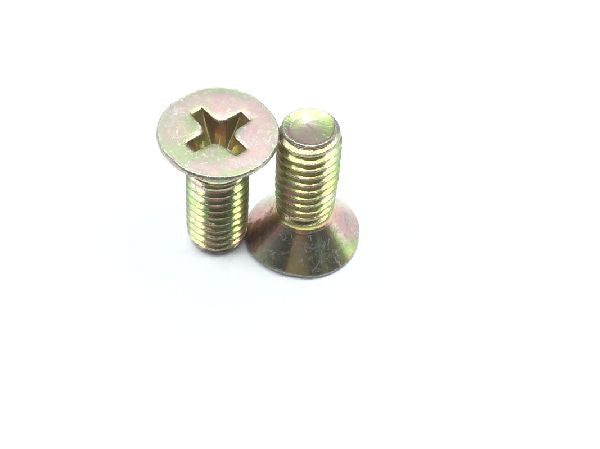

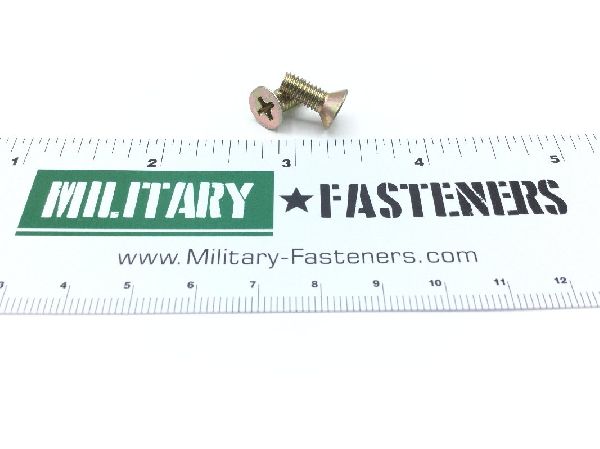

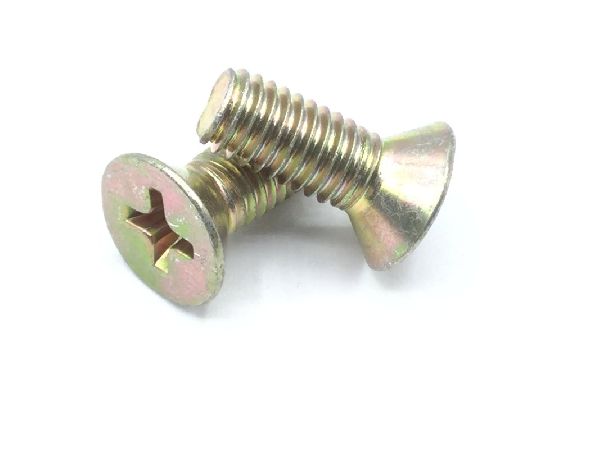

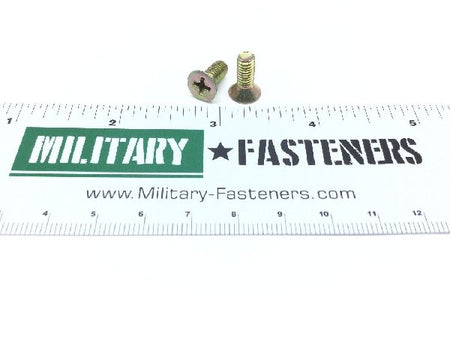

MS35191-272 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.30

Units per Pack 100

Price per Pack $30.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $30.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 80.0 degrees and 82.0 degrees
Departure From Cited Document: As modified by surface treatment
Fastener Length: Between 0.469 inches and 0.500 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 60000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 6 style
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Zinc
Screw Surface Treatment Specification: Astm b633 assn standard single treatment response
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.291 inches and 0.384 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.340 inches and 0.385 inches
