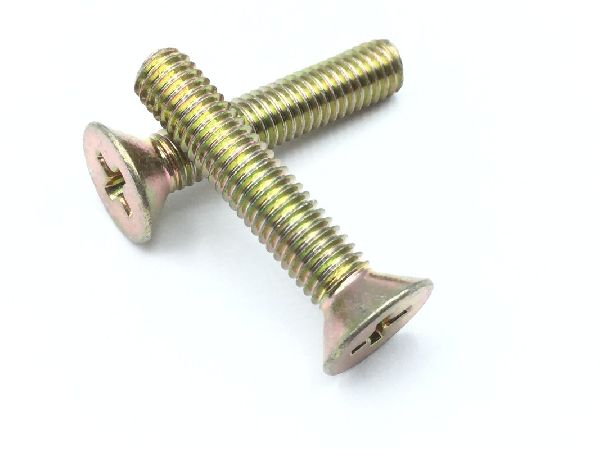

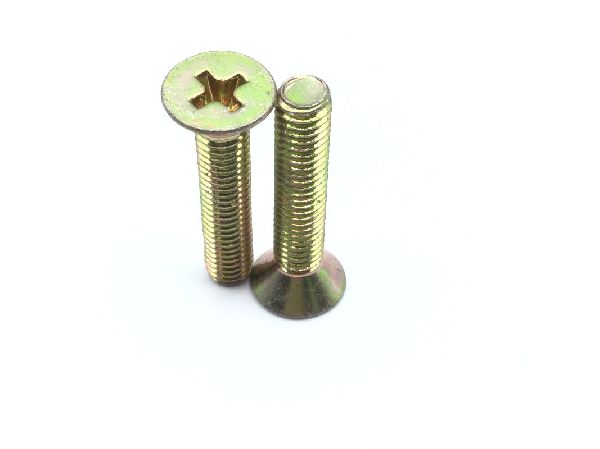

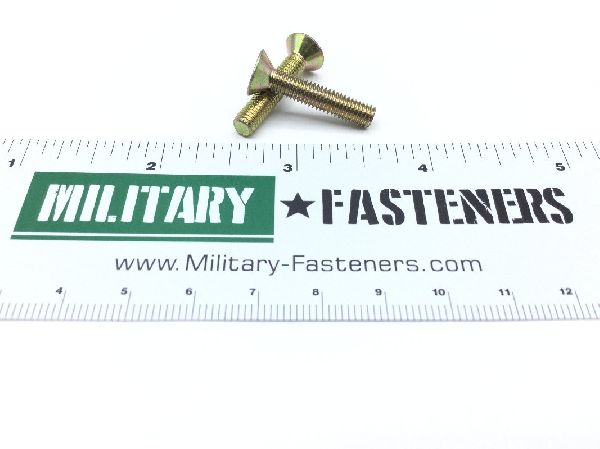

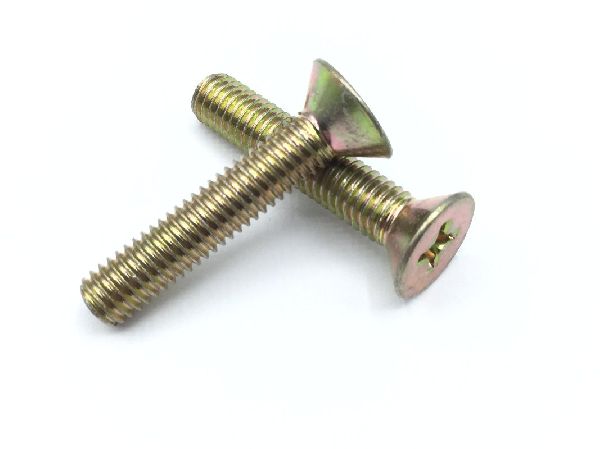

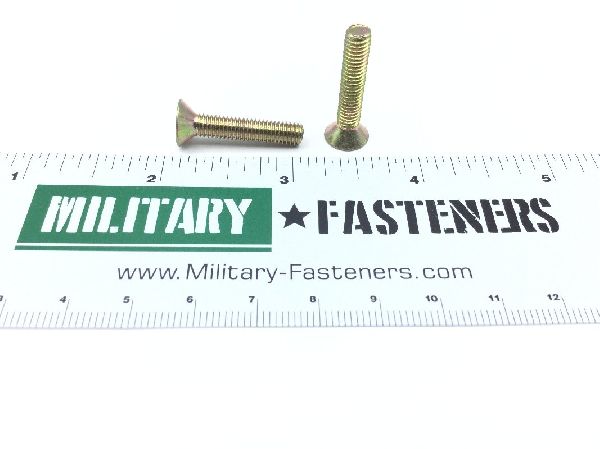

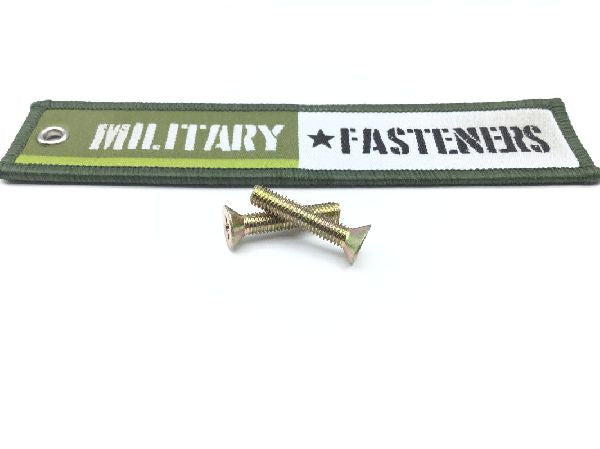

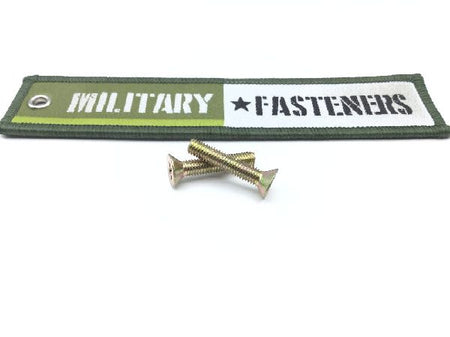

MS35191-276 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 80.0 degrees and 82.0 degrees
Fastener Length: 1.000 inches
Internal Drive Style: Cross recess type 1
Screw Material: Steel comp 1010 or steel comp 1011 or steel comp 1013
Screw Material Specification: Sae assn standard all material responses
Screw Surface Treatment: Cadmium and chromate
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 1.000 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.340 inches and 0.385 inches
