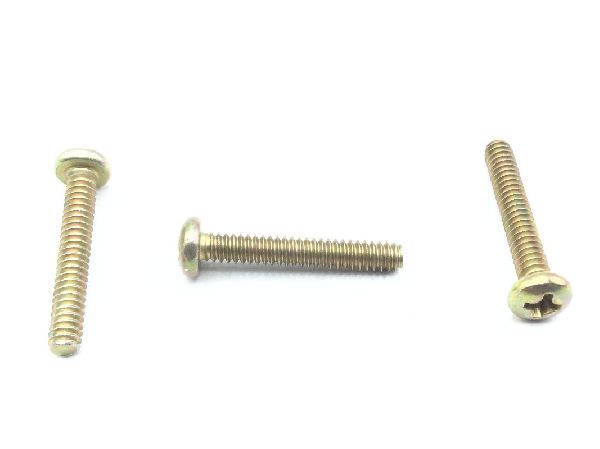

MS35206-233 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Button

Thread Class

Fastener Length: Between 0.844 inches and 0.875 inches
Head Height: 0.086 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 55000 pounds per square inch
Screw Material: Steel
Screw Surface Treatment: Cadmium
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.844 inches and 0.875 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.303 inches and 0.321 inches
