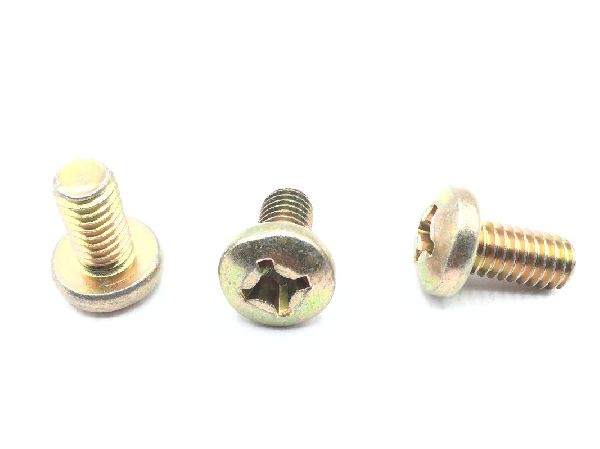

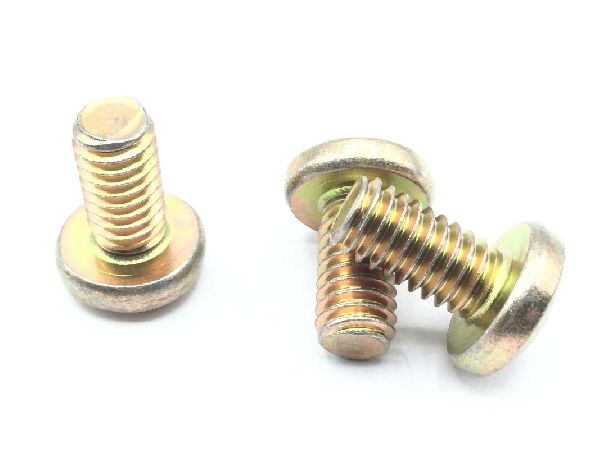

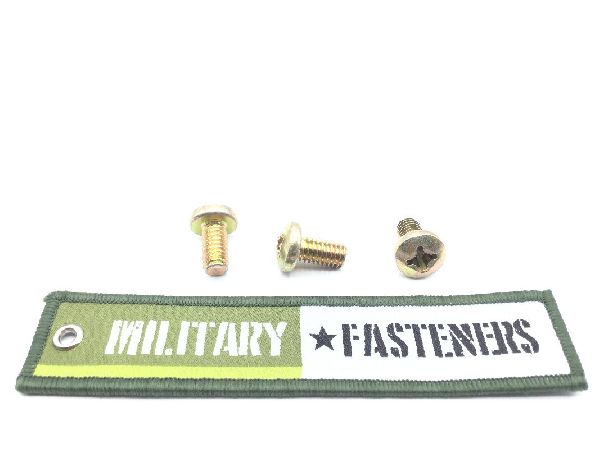

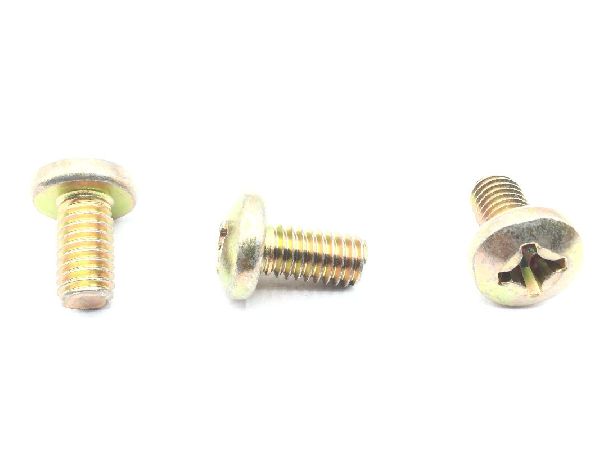

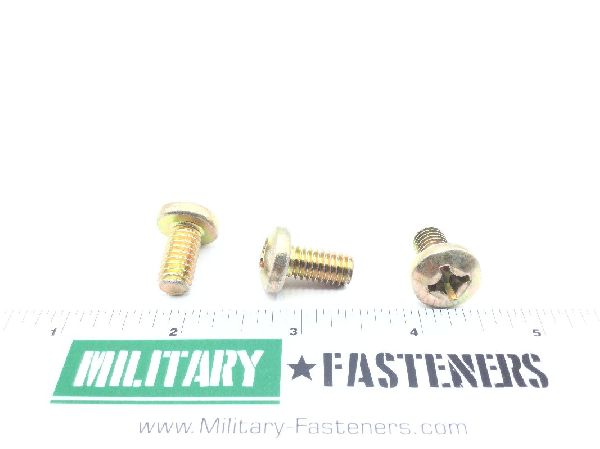

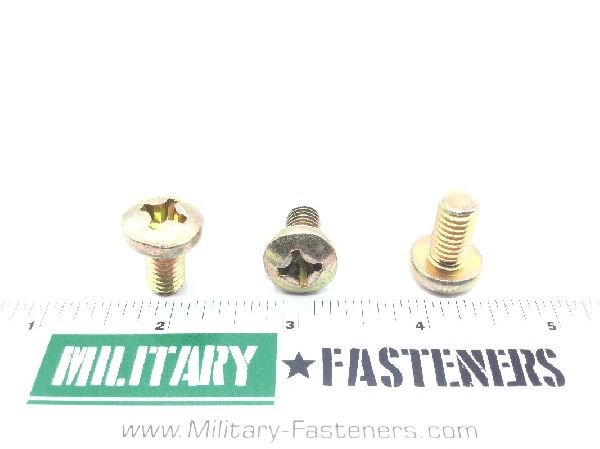

MS35206-295 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.52

Units per Pack 25

Price per Pack $38.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $38.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: 0.625 inches
Head Height: Between 0.203 inches and 0.218 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 55000 pounds per square inch
Screw Material: Steel comp 1010 or steel comp 1011 or steel comp 1013
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Qq-p-416 type 2 cl 3 federal specification single treatment response
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.514 inches and 0.625 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.594 inches and 0.615 inches
