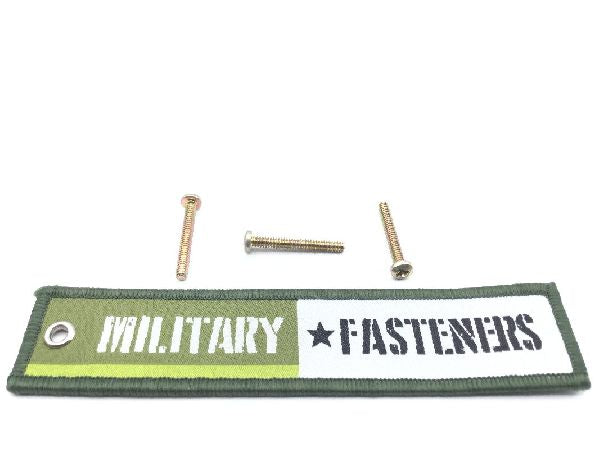

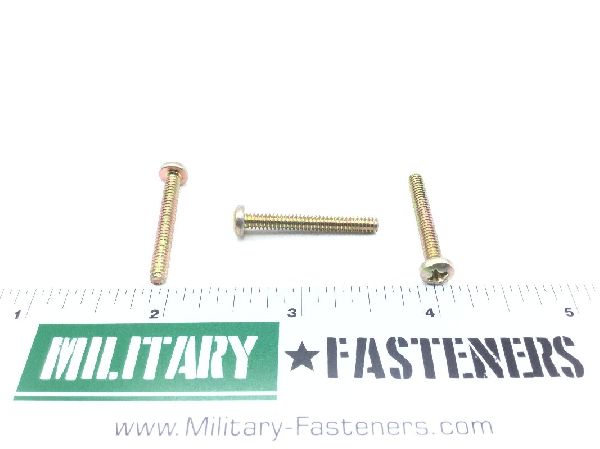

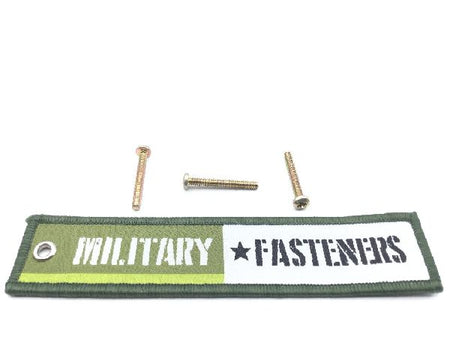

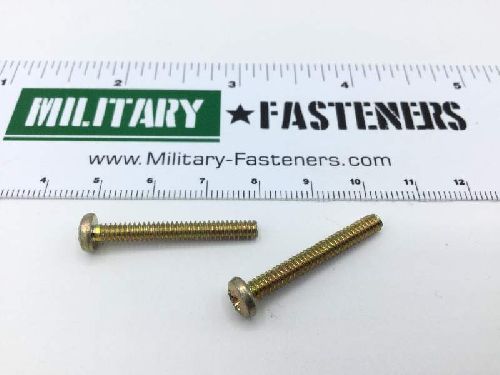

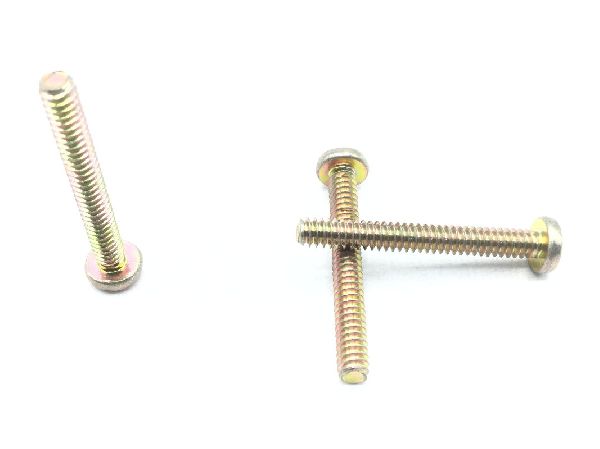

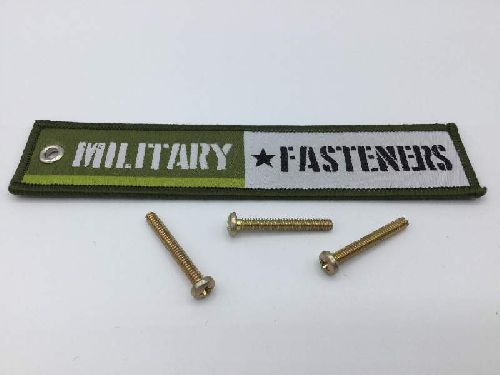

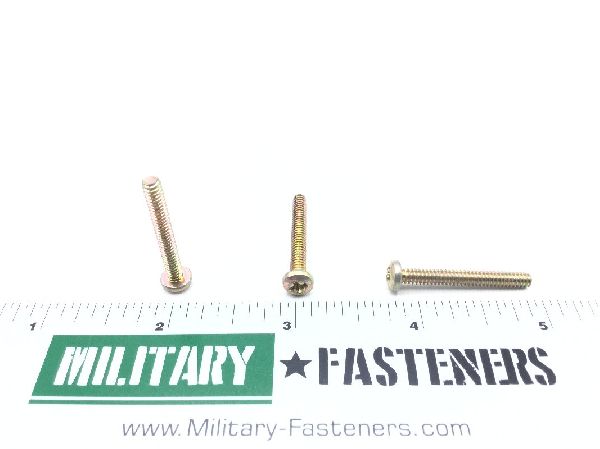

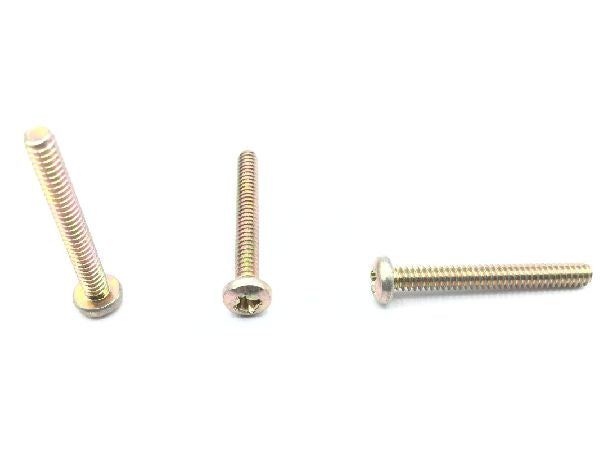

MS35206-328 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.22

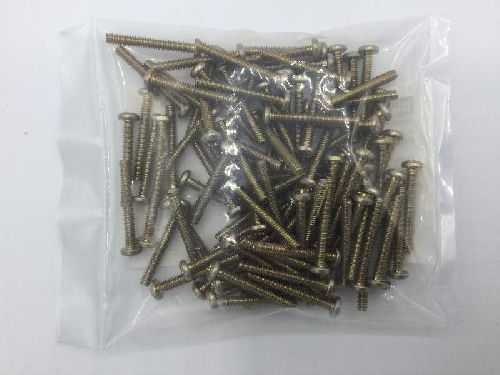

Units per Pack 100

Price per Pack $22.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $22.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 1.063 inches and 1.125 inches
Head Height: Between 0.087 inches and 0.097 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 60000 pounds per square inch
Nondefinitive Specification/std Data: 388jst9c type
Screw Material: Steel comp 1010 or steel comp 1011 or steel comp 1013
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Class 3 federal specification all treatment responses type 2 qq-p-416
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 1.000 inches and 1.125 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.256 inches and 0.270 inches
