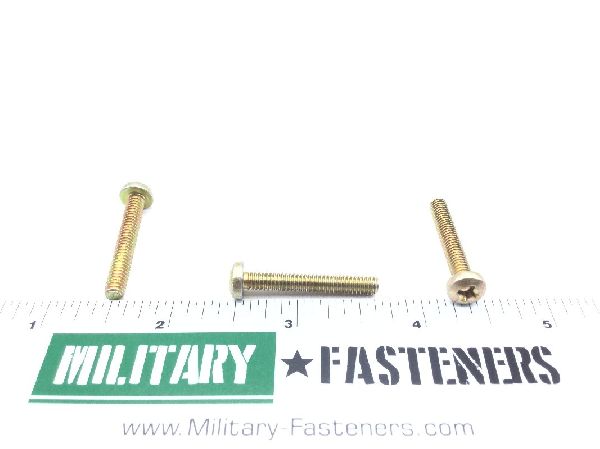

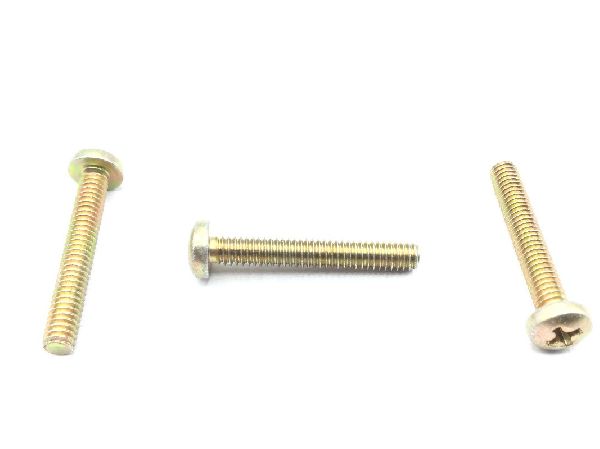

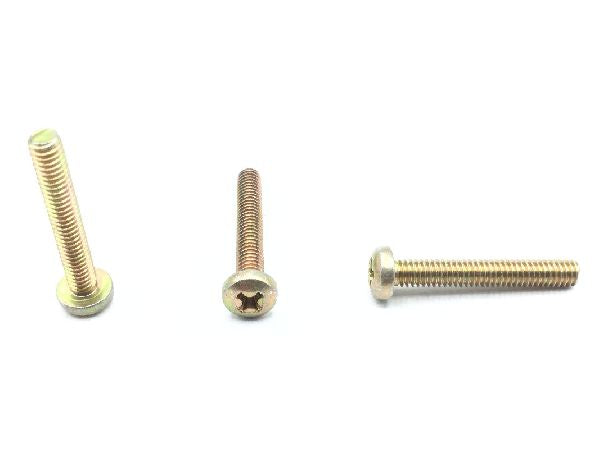

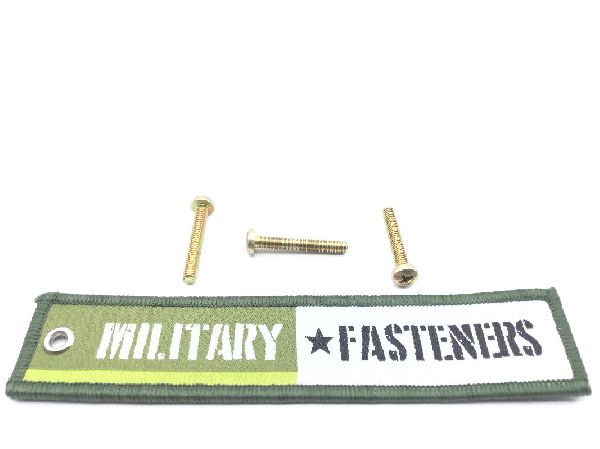

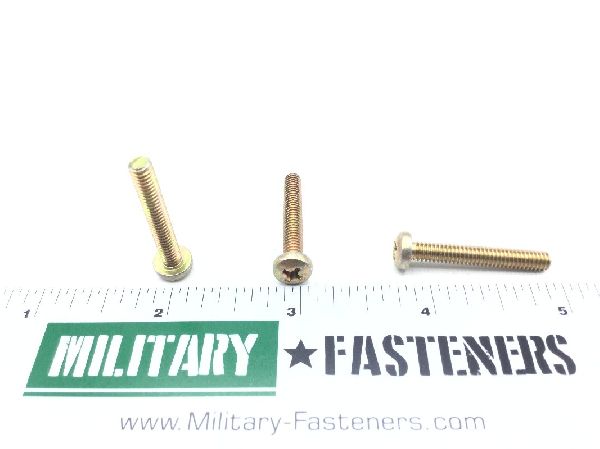

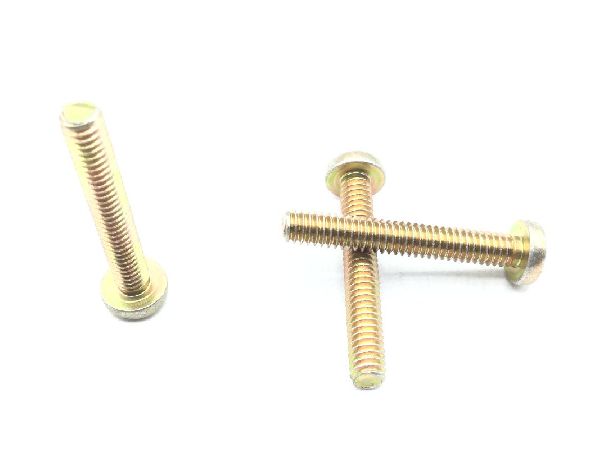

MS35206-332 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Head Style

Pan

Thread Class

Departure From Cited Designator: As modified by material
Fastener Length: Between 1.063 inches and 1.125 inches
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 60000 pounds per square inch
Nondefinitive Specification/std Data: 3 type or 9c style
Screw Material: Steel
Screw Material Specification: Astm a108 assn standard 1st material response or qq-s-637 federal specification 2nd material response or federal standard no. 66 federal standard 3rd material response
Screw Surface Treatment Specification: Qq-p-416 type 2 class 3 federal specification all treatment responses
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 1.001 inches and 1.125 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.306 inches and 0.322 inches
