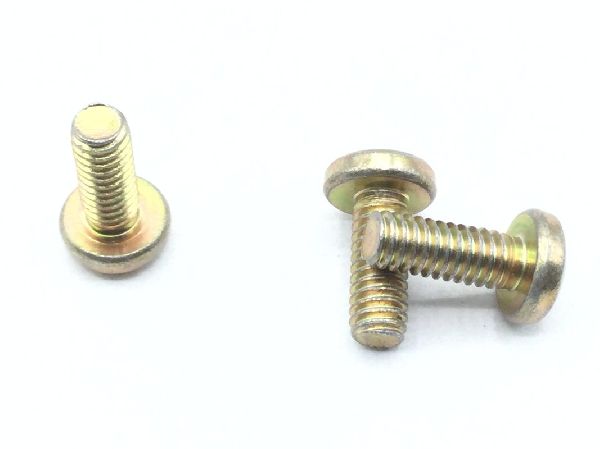

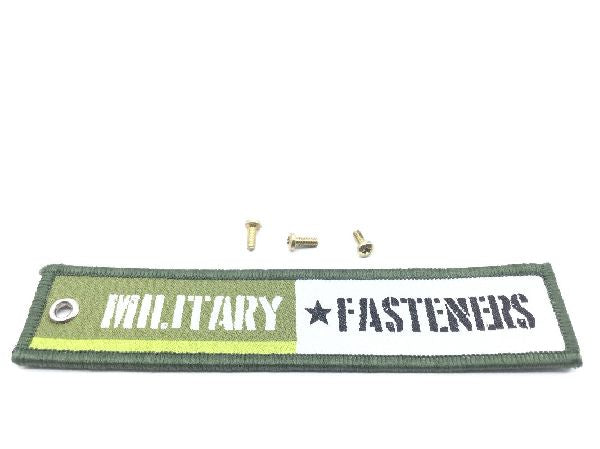

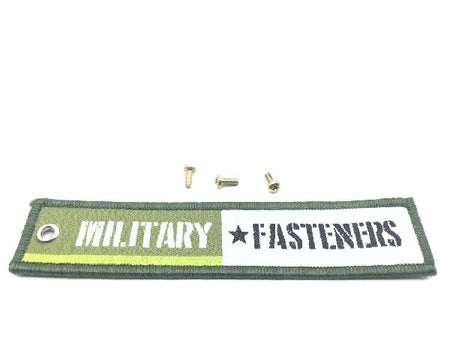

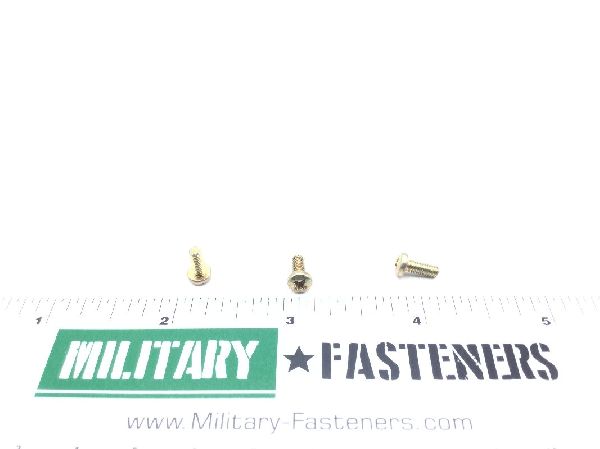

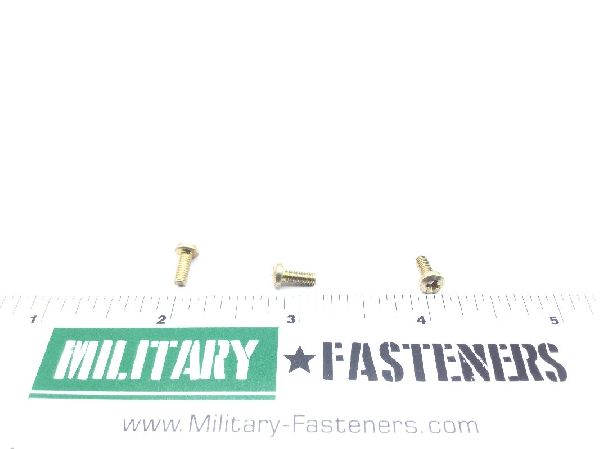

MS35207-214 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.84

Units per Pack 25

Price per Pack $46.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $46.00

Add item to quote

Head Style

Pan

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

End Application: M-29 2350-01-277-5770 mortar
Fastener Length: Between 0.281 inches and 0.312 inches
Head Height: Between 0.070 inches and 0.080 inches
Internal Drive Style: Cross recess type 1
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 55000 pounds per square inch
Part Name Assigned By Controlling Agency: Unf (fine thread)-2a cadmium plated carbon steel cross recessed machine-pan head screw
Specification Data: System 21 government standard 81348-fed-std-h28/20
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.270 inches and 0.312 inches
Thread Qty Per Inch (tpi): 48
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.205 inches and 0.219 inches
