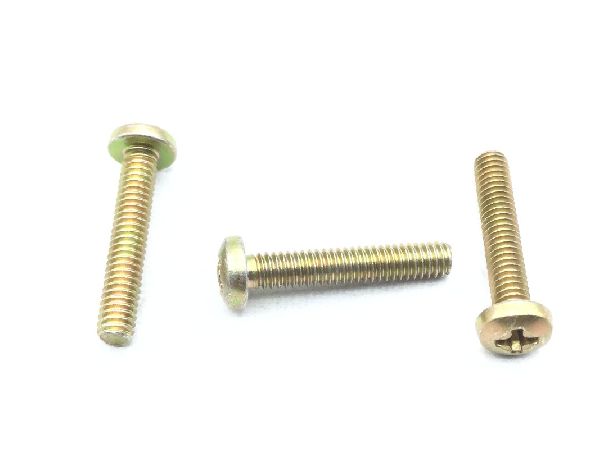

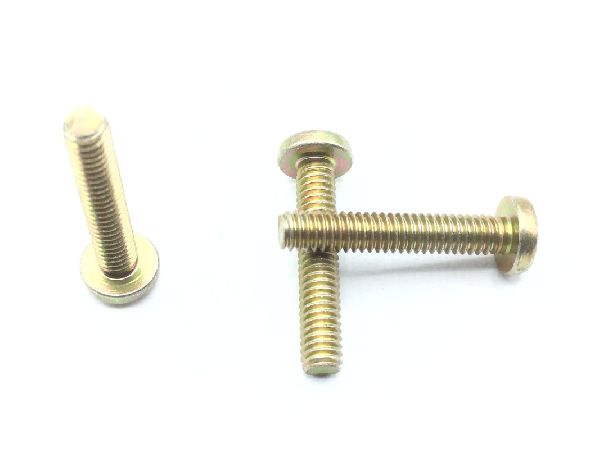

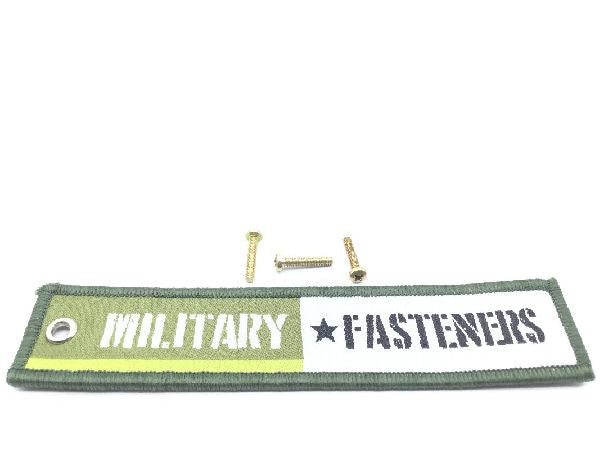

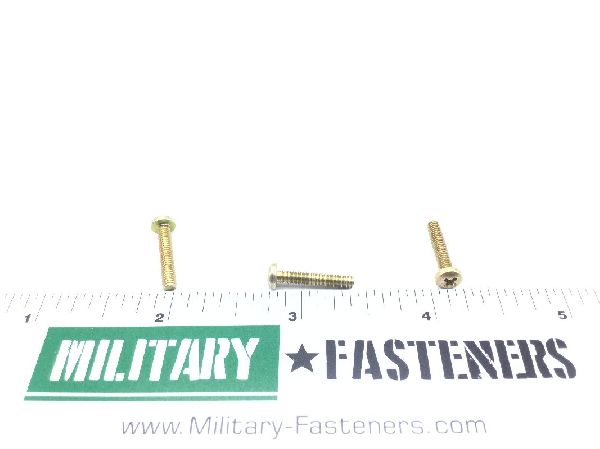

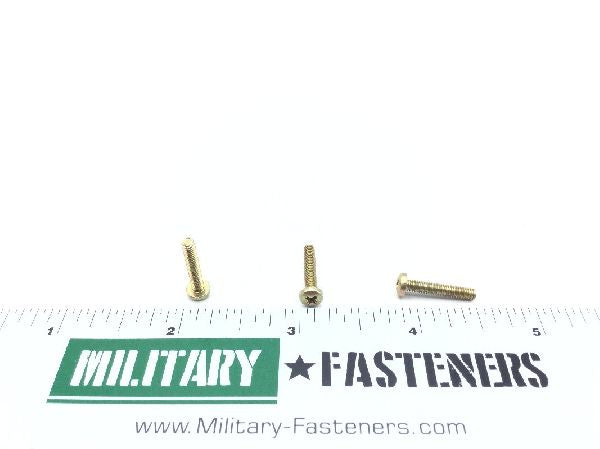

MS35207-218 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.90

Units per Pack 25

Price per Pack $22.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $22.50

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: 0.625 inches
Head Height: Between 0.070 inches and 0.080 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 55000 pounds per square inch
Screw Material: Steel comp 1010 or steel comp 1011 or steel comp 1013
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Cl3 federal specification single treatment response ty2 qq-p-416
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.583 inches and 0.625 inches
Thread Qty Per Inch (tpi): 48
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.205 inches and 0.219 inches
