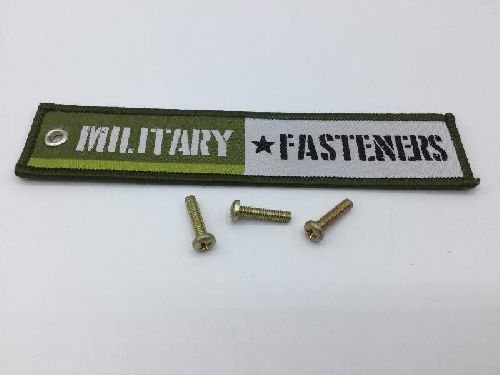

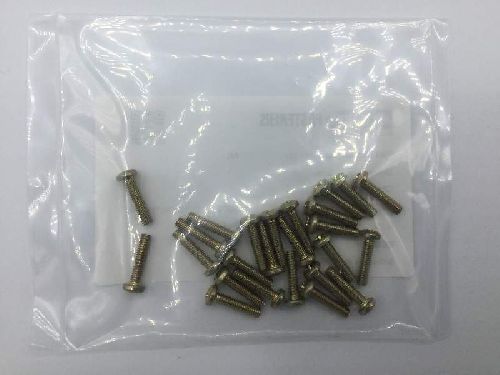

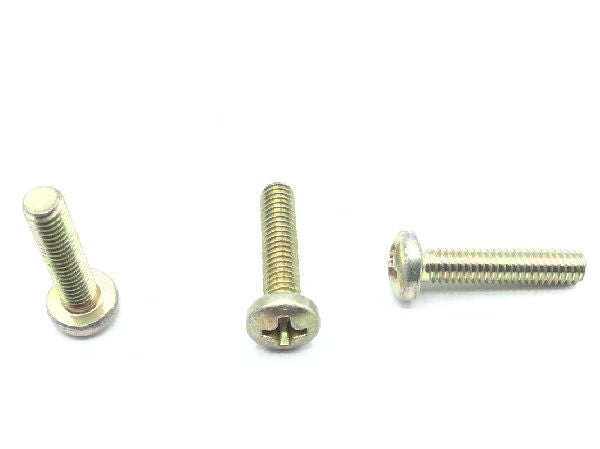

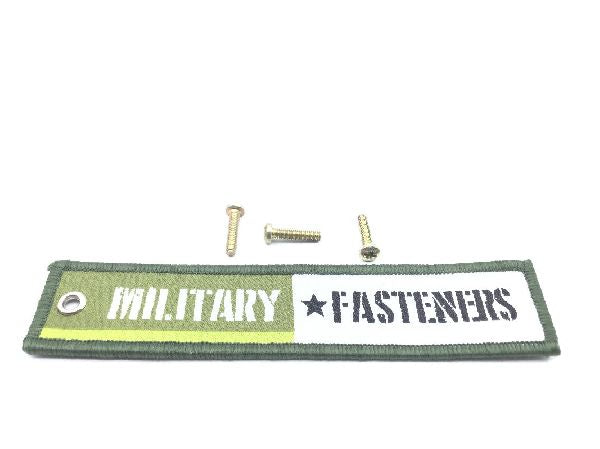

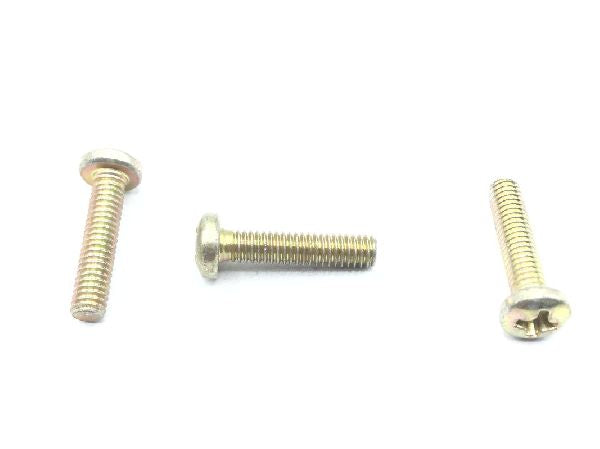

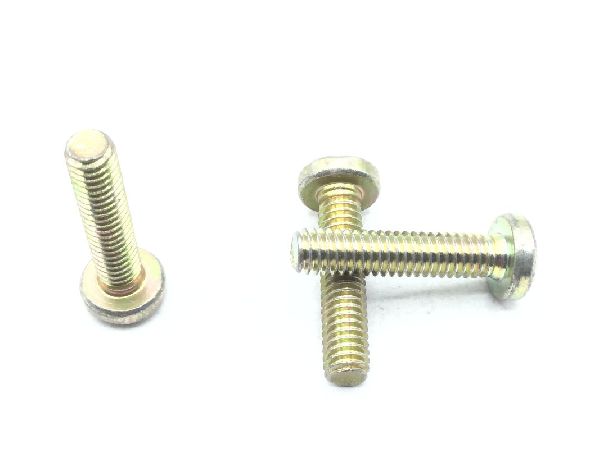

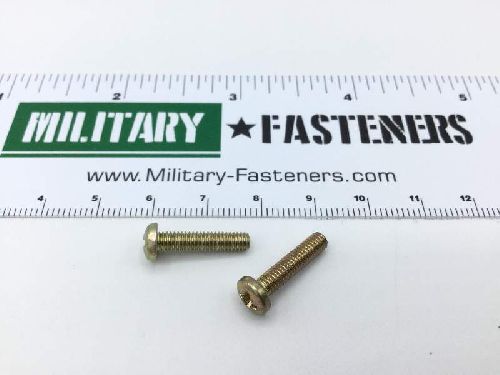

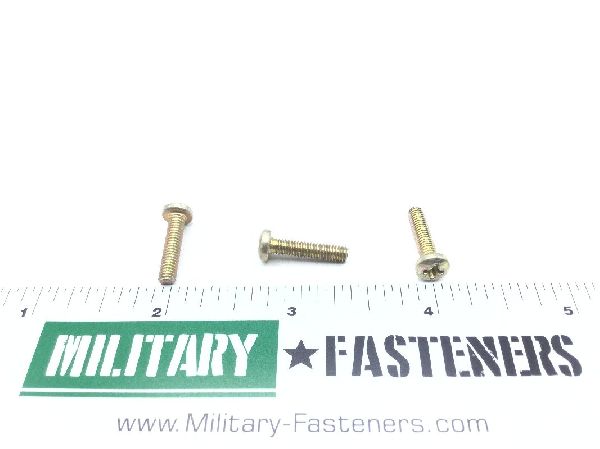

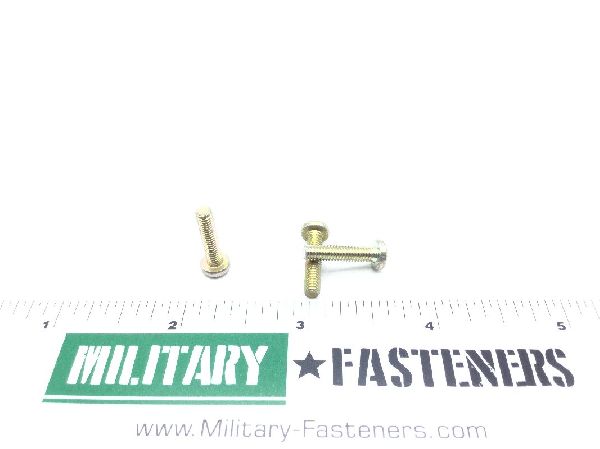

MS35207-231 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan

Thread Class

Fastener Length: 0.625 inches
Head Height: Between 0.087 inches and 0.097 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 60000 pounds per square inch
Screw Material: Steel comp 1010 or steel comp 1011 or steel comp 1013
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Cl3 federal specification single treatment response type 2 qq-p-416
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.575 inches and 0.625 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.256 inches and 0.270 inches
